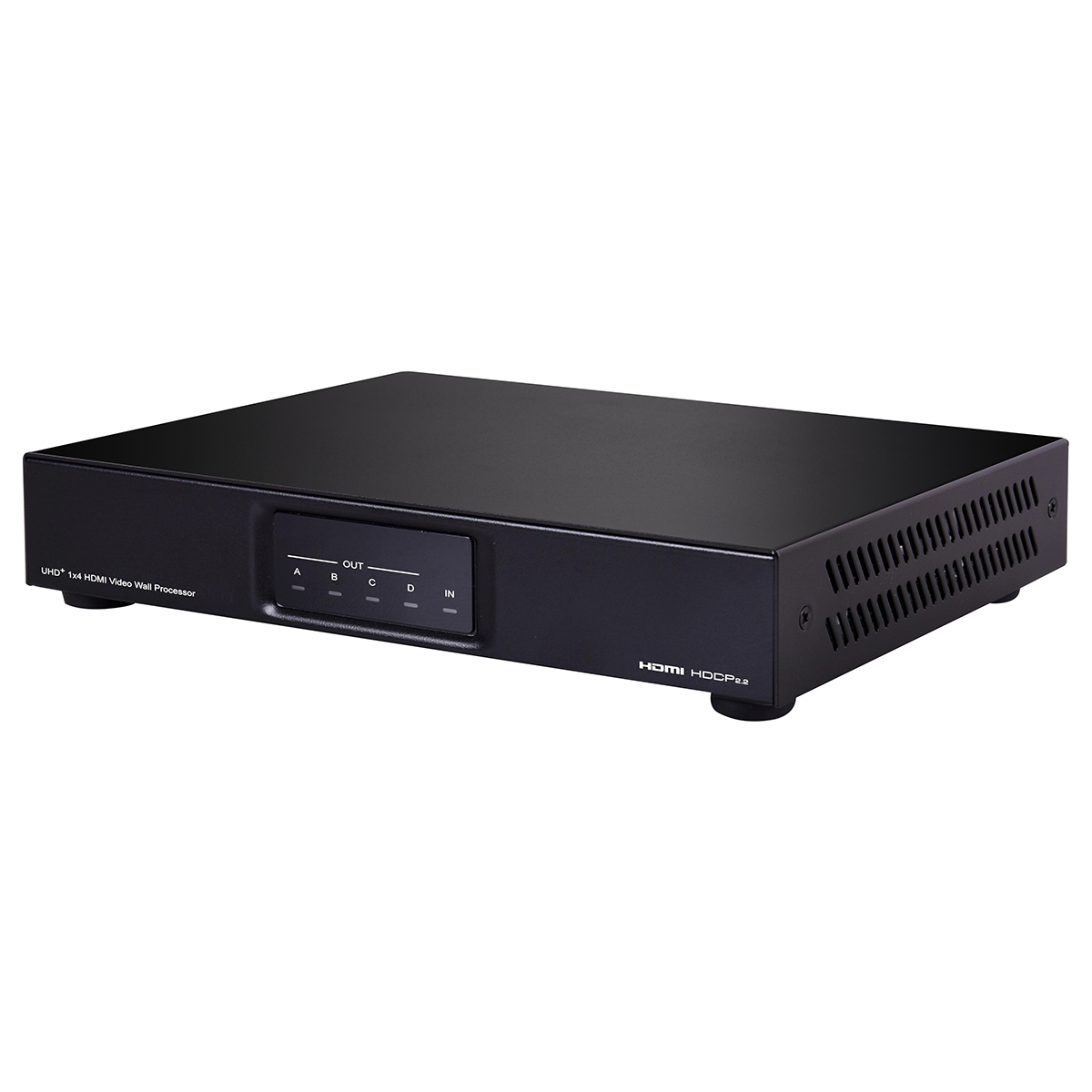

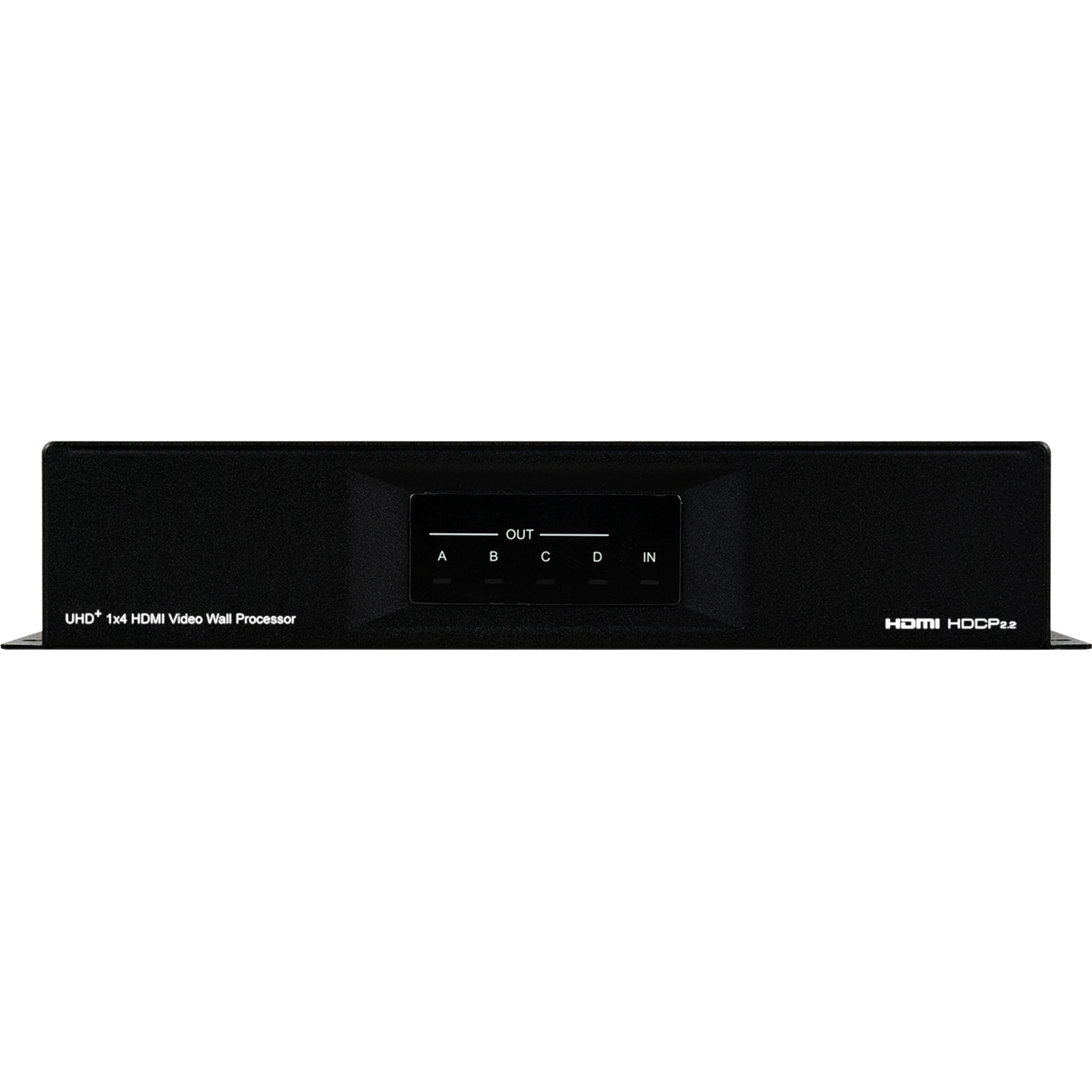

CDPS-4KQ-AD UHD+ 1x4 HDMI Video Wall Processor

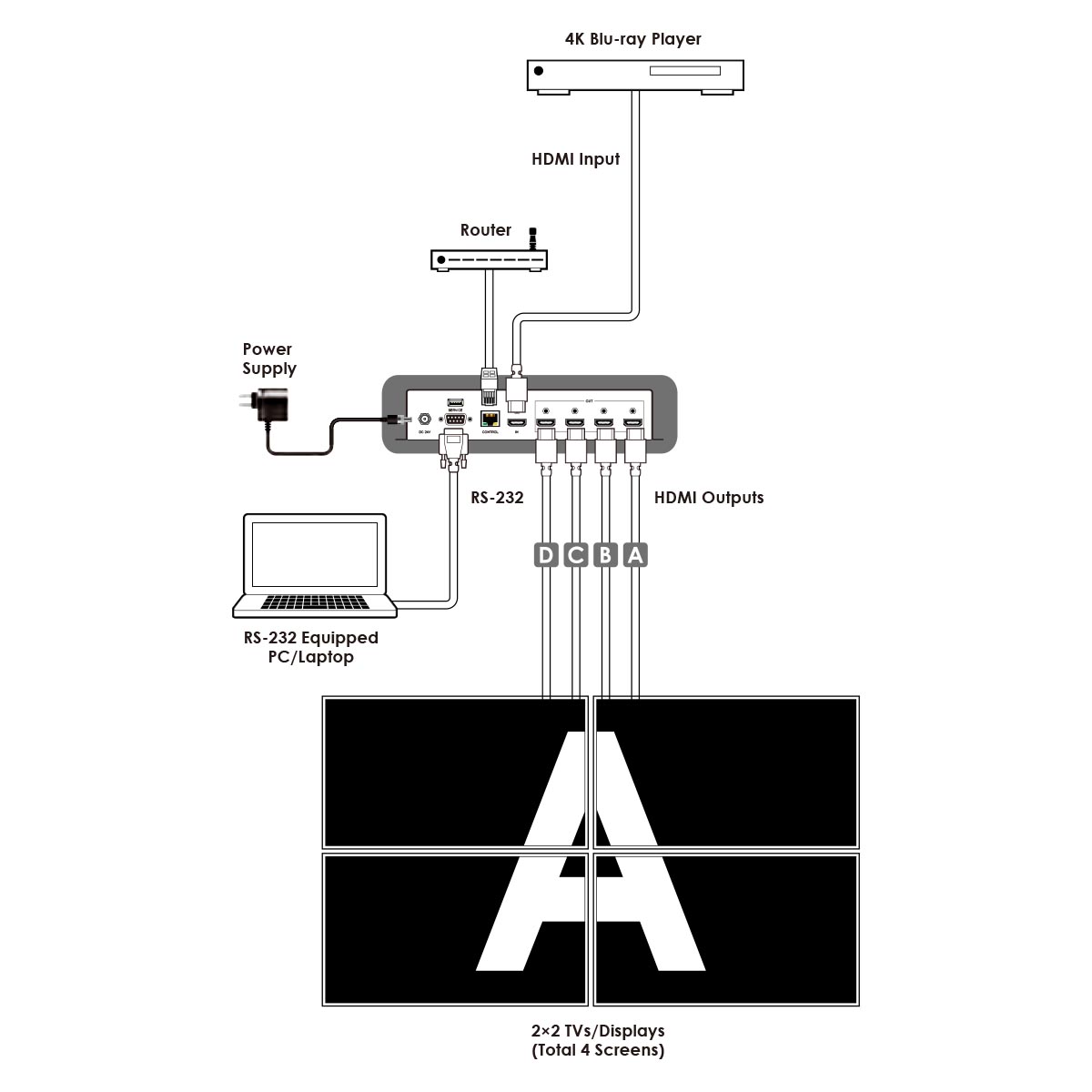

This Unit Can Take any Standard 4K UHD Source From HDMI and Generate a High Quality 2×2 Video Wall With Bezel Compensation and Full audio Bypass. Input Supports 4K UHD HDMI Video, Up to and Including 4K @ 60Hz (4:4:4, 8-Bit) as Well as 10/12-Bit. Each of the 4 Outputs Supports Resolutions Fixed 1080p @ 60Hz to Generate a True 4K Video Wall With an RS-232 Port Support for Event-Triggered Commands to Be Sent Via RS-232. Built In advanced Edid Management Options Including Internal, External, and user Configurations as Well as advanced HDCP Processing allows This Video Wall Unit to Handle almost any Source Situation. a Dedicated Pc application allows the user to Fully Customize the Video Wall and associated Features. multiple Control Interfaces are ailable Including Osd, RS-232, Telnet and PC tool.

Features

  • 1 HDMI Input Supports Sources Up to 18Gbps (600MHz) 4K UHD
  • 4 HDMI Output Support Output Resolutions Fixed 1080p@60hz
  • Input Supports UHD Resolutions Up to 4096×2160 @ 60hz (4:4:4, 8-Bit)
  • Input Supports 4K at 24hz (4:4:4) and 60hz (YUV 4:2:0) With Up to 12-Bit Color (HDR is automatically Converted to Sdr for 1080p Output)
  • Supports Pass-Through Of audio formats Including Lpcm 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Basic Signal Event automation (via RS-232) to Connected HDMI Display
  • Dedicated Pc application for Easy Control Of the Unit
Brand:
Cypress Technology
Product Type:
UHD+ 1x4xHDMI Video Wall Processor
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
9W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to 60°C

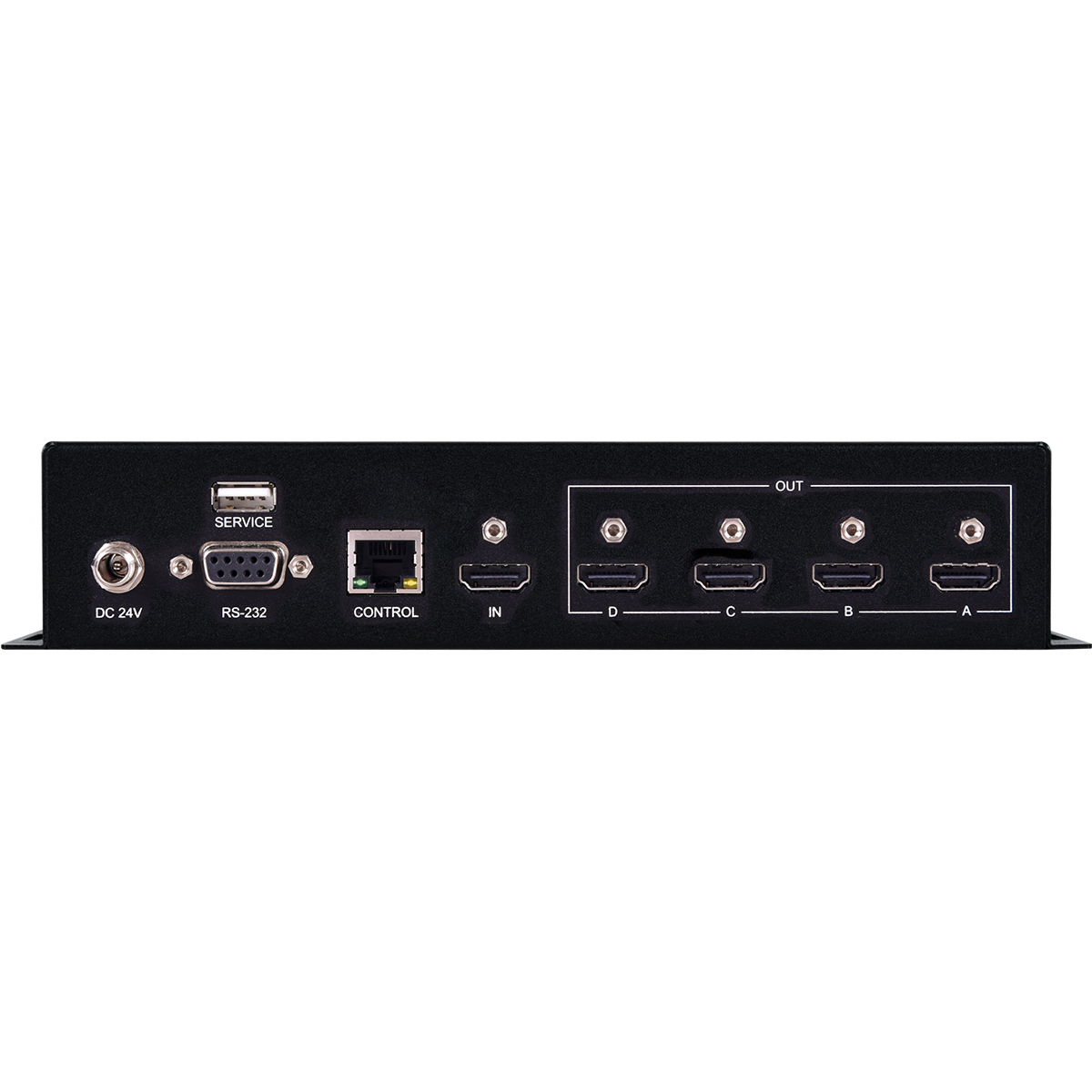

Inputs and Ports
Input Port Type:
1xHDMI-Type A
Output Port Type:
4xHDMI-Type A
I/O Interface Type:
1xControl (RJ45), 1xRS-232
Power
Current Rating:
0.75A
Dimensions
Width:
21.5cm
Depth:
15.8cm
Height:
4.7cm
Weight:
652g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE, FCC Compliant, UL Listed
