CDPS-CS9 Universal Device Controller
Please sign in so that we can notify you about a reply

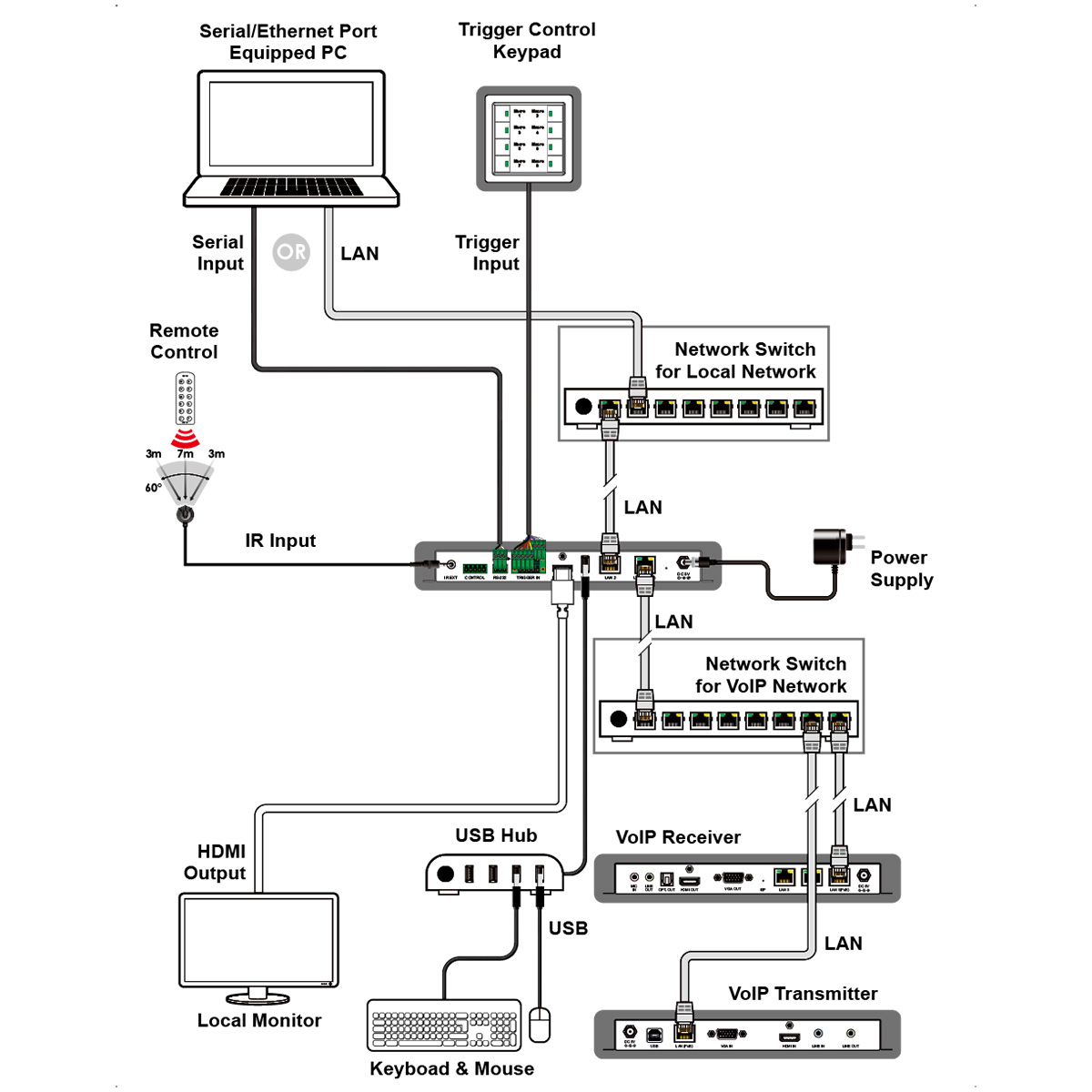

This Controller is a Powerful and Flexible Solution for Controlling all active Units Within Same Network. the user Only Needs to Install This Unit Into the Same Local Network to Easily Define and Configure Channel Routing Selections using the Webgui. not Only Could about to Check all the Units Status That Under Controller’s Control, it also able to Define and Switch Routes, allowing for Easy Control over multiple Video Zones. additionally, This Unit Supports Script Editing to Help Installer to Build Up Suitable Scenario, Preset and Scheduling actions By Controller itself. the Webgui is Easily accessed Via a Web Browser over a Normal Network Connection or By Directly Connecting an HDMI Display and USB Keyboard & Mouse to the Unit. a Trigger Input Interface is also Provided to allow the Easy addition of a Remote Control Keypad, or Other Trigger-Supporting Products, Which Can Be Installed Within a Podium or Within a Table In a Conference Room or Classroom. This Interface Can allow the user to activate Stored Presets With the Simple Press of a Button. Standard Control is ailable Via Webgui (remote or Local), RS-232, Telnet, IR Remote and Triggers.
Features
- Enables the Management and Configuration Of multiple Compatible Devices
- WebGui Provides Dashboard Present for Controlled Devices Status
- Discovery, Connected and Controlled all Devices at Same Network
- HDMI Output Displays the WebGui and System Status
- Supports the Use Of a USB Mouse and Keyboard to Locally Control the WebGui (Optional)
- Can Be Powered Directly By Power Over Ethernet (PoE) When Connected to an Ethernet Switch That Follows the 802.3af Poe Standard (Optional)
- Trigger Control Keypad Support for Easy, Single-Button, Preset activation (Optional)
Brand:
Cypress Technology
Product Type:
Universal Device Controller
Specifications
Colour:
Black
Special Features:
Enables the Management and Configuration Of Multiple Compatible Devices, WebGUI Provides Dashboard Present for Controlled Devices Status, Discovery, Connected and Controlled All Devices At Same Network, HDMI Output Displays the WebGUI and System Status, S
Power Rating:
2.99W
Chassis Material:
Metal
Humidity:
20 to 90%
Storage Temperature Range:
-20 to +60°C
Performance
Baud Rate:
19200bps

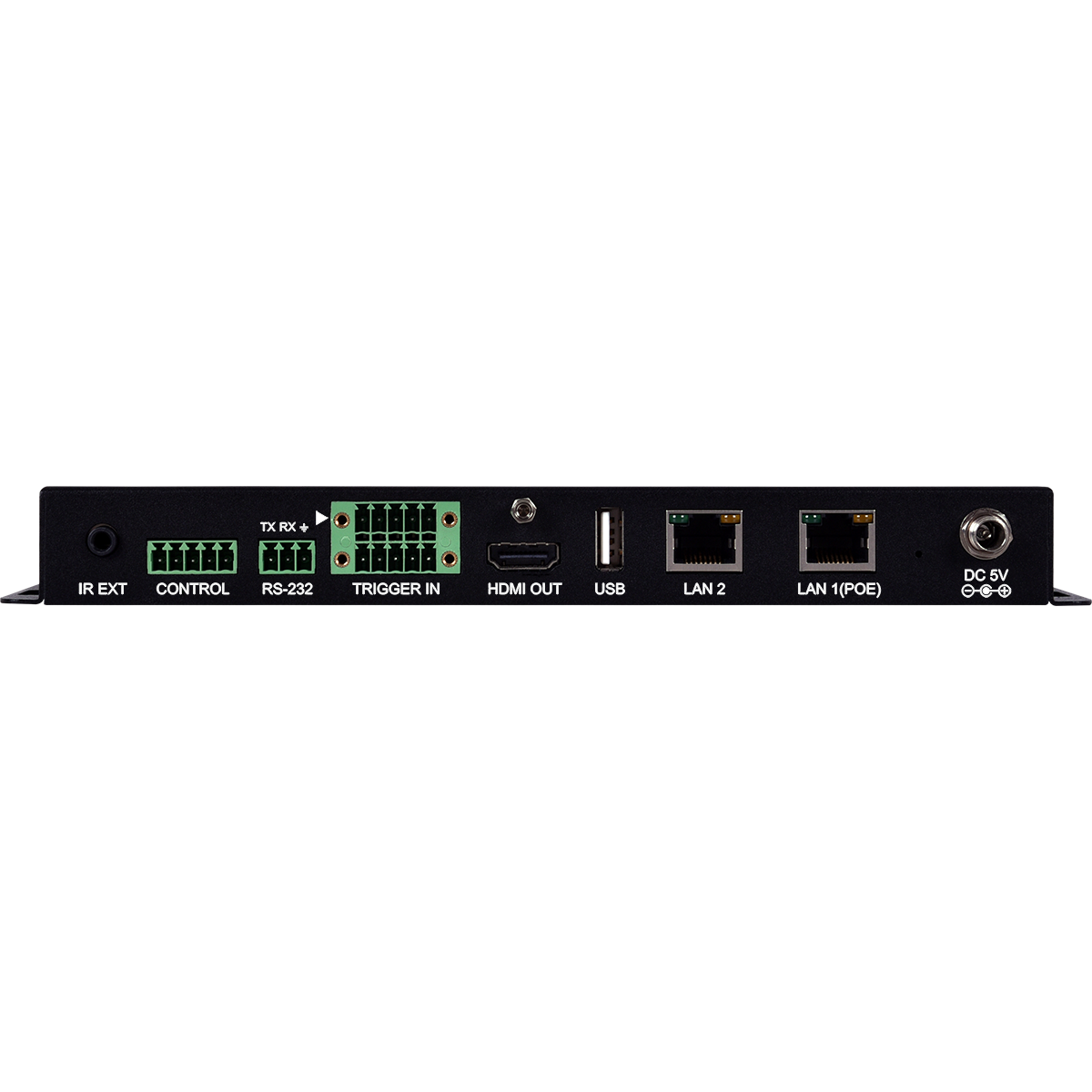

Inputs and Ports
Output Port Type:
HDMI-Type A
Reserved Port:
1xRS-232 (5-Pin Terminal Block)
Interface Type:
USB Flash Drive, WebGUI
Power
Current Rating:
2.6A
Dimensions
Width:
23.15cm
Depth:
11.7cm
Height:
2.5cm
Weight:
916g
Other
Voltage Rating:
5V DC
Standards Met:
CE, FCC Compliant, UL Listed
