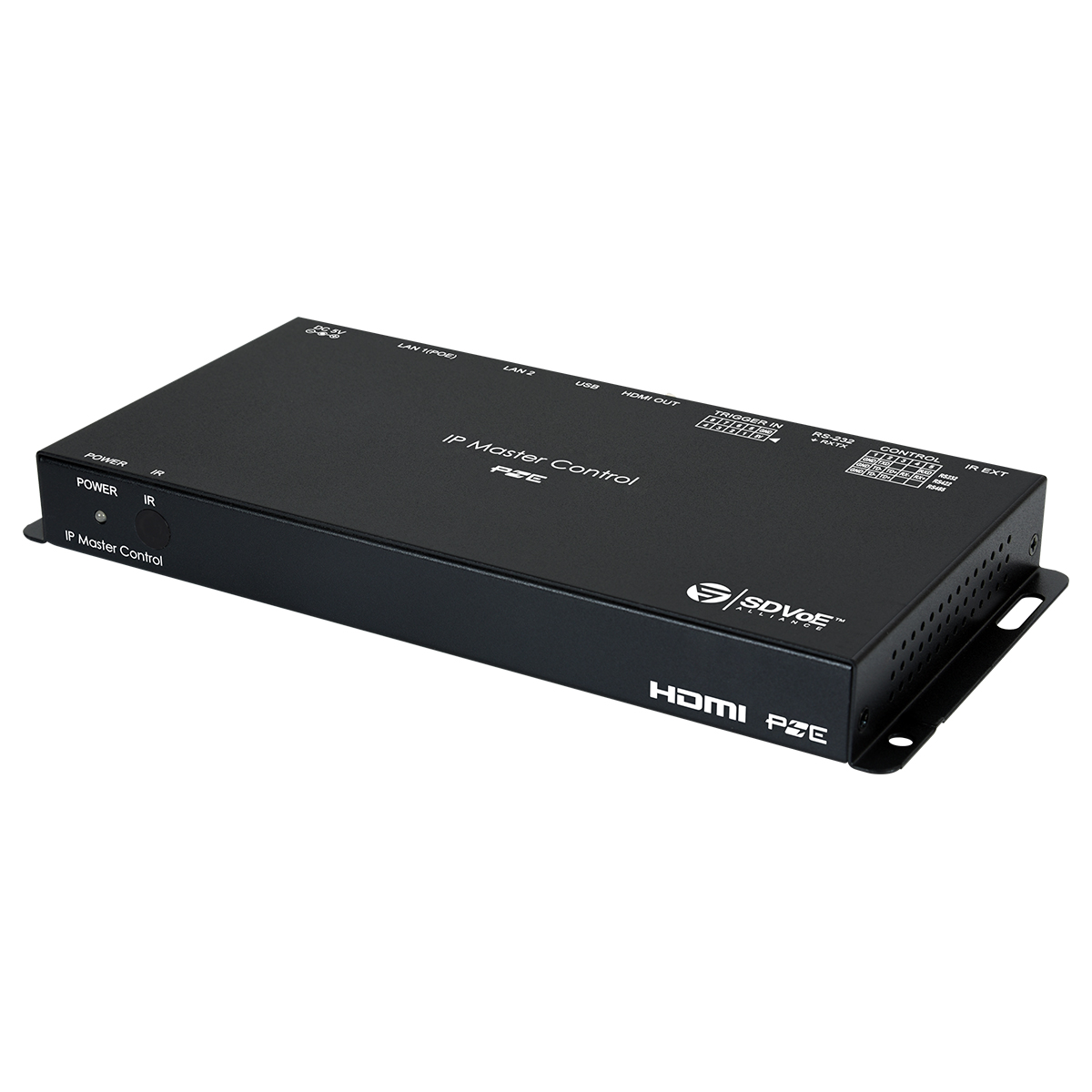

CDPS-CS7-S SDVoE Control Center

This Controller is a Powerful and Flexible Solution for Controlling multiple Voip (Video over ip) Extenders Within Same Network. the user Only Needs to Install This Unit Into the Same Local Network as the Extenders (Transmitter and Receiver) to Easily Define and Configure Channel Routing Selections using the Webgui. it is also Possible to Define and Switch Routes using Customized Groups or Presets allowing for Easy Control over multiple Video Zones. Without the use of This Controller, Each Individual Transmitter and Receiver pair Could Only Be Configured In a Basic Point-to-Point Operational Mode. additionally, This Unit Supports Controlling the Matrix, Video Wall, and Multiviewer Modes of Connected Voip Units. the Settings of all Connected Transmitter/Receiver Units, Including ip address, Netmask and Extender Status are Clearly Displayed Within the Webgui. the Webgui is Easily accessed Via a Web Browser over a Normal Network Connection or By Directly Connecting an HDMI Display and USB Keyboard & Mouse to the Unit. a Trigger Input Interface is also Provided to allow the Easy addition of a Remote Control Keypad, or Other Trigger-Supporting Products, Which Can Be Installed Within a Podium or Within a Table In a Conference Room or Classroom. This Interface Can allow the user to activate Stored Presets With the Simple Press of a Button. Standard Control is available Via Webgui (remote or Local), RS-232, Telnet, IR Remote and Triggers.

Features

• Enables the Management and Configuration Of multiple Compatible VoIP (Video Over IP) Extenders Through a Single WebGui
• Definable Display Groups
• WebGui Clearly Displays the Status Of all Connected Transmitters and Receivers, Including IP address, Channel Selection, Etc.
• HDMI Output Displays the WebGui and System Status
• Dual Lan Ports Enable Control Over VoIP Installations That Reside On a Logically Or Physically Separate Network From the Standard Local Network
• Supports the Use Of a USB Mouse and Keyboard to Locally Control the WebGui (Optional)
• Can Be Powered Directly By Power Over Ethernet (PoE) When Connected to an Ethernet Switch That Follows the 802.3af Poe Standard (Optional)
• Trigger Control Keypad Support for Easy, Single-Button, Preset activation (Optional)
