CDPS-CS4 IP to Relay, IR & RS232 Controller
Please sign in so that we can notify you about a reply

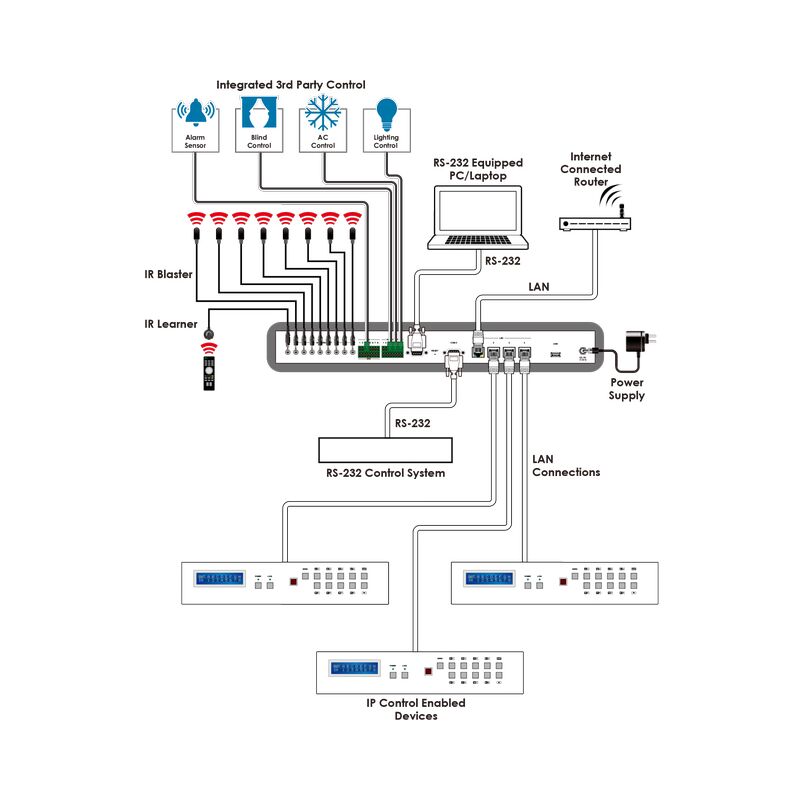

As We Enter a New Era of Smart Devices, the Dream of Controlling Everything With One Finger is Finally Upon us. This Control System Center allows Those Dreams to Come True By not Only Providing DIRect But also IndIRect Control Interfaces for all of Your Devices. DIRect Control Methods Such as IR (with IR Learning), RS-232, Relay, and Dc Triggers allow users to Maintain Traditional Styles of Control over Devices While IndIRect Device Control is Possible using Telnet allowing users to Control Newer, More Complicated Devices. With This Product You Can Pre-Program and Recall Up to 16 Distinct Macros (8 Can Be Directly activated Via External Triggers or IR Remote) Providing for Complete Control over Your audio and Video EnvIRonment.
Features
- Supports 1 IR Learning Input, 8 Ir Blaster Outputs, 8 Trigger Inputs, 8 Relay Outputs, 2 Com Ports, and 4 Ethernet Ports
- Supports an IR Learning Function Which Captures the IR Signal Broadcast By Your Remote When You Press a Button for Retransmission as a Part Of a Macro
- Supports Trigger Inputs With a Voltage Range Of 0~15v (triggers at 5v)
- Supports Baud Rates From 4800bps to 115200bps
- Supports 10/100 Ethernet Network Connections
Brand:
Cypress Technology
Product Type:
Control System Centre
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Silkscreen Color:
Black
Special Features:
Supports 1xIR Learning Input, 8xIR Blaster Outputs, 8xTrigger Inputs, 8xRelay Outputs, 2xCom Ports, 4xEthernet Port
IR Frequency:
30 to 50kHz
Power Rating:
7.7W
Chassis Material:
Metal
Applications:
Smart Home Control, Control Center, Function Room, Product Showroom, Ball Room
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-0 to +60°C
Performance
Baud Rate:
Up to 115200bps
Inputs and Ports
Input Port Type:
1xIR Learner (3.5mm), 8xTrigger (2-Pin Terminal Block)
Output Port Type:

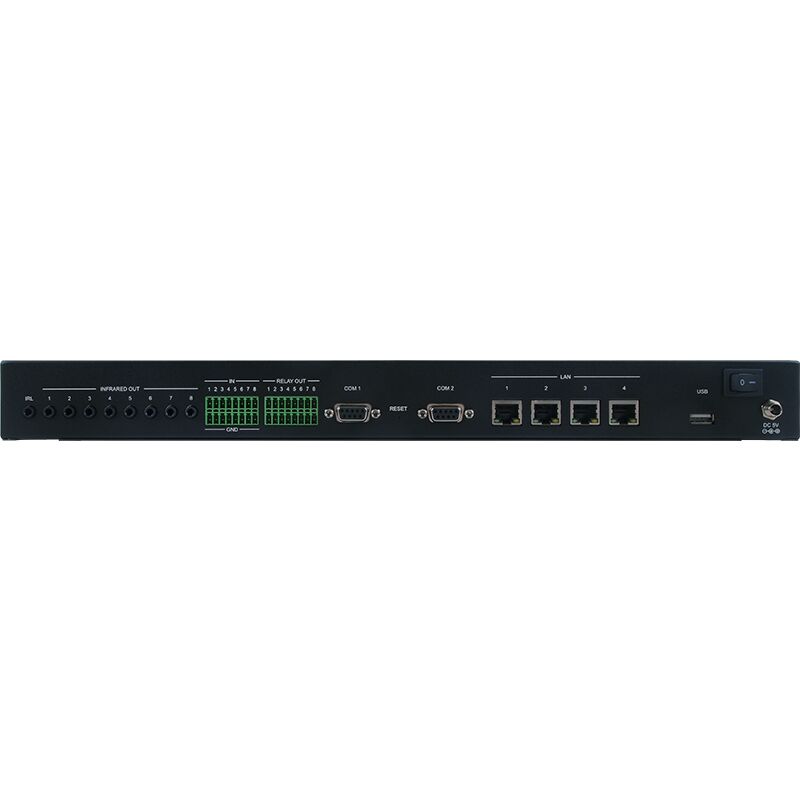

8xIR Blaster (3.5mm), 8xRelay (2-Pin Terminal Block), 2xCOM (9-Pin D-sub), 4xLAN (RJ45)
Power
Current Rating:
2.6A
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Dimensions
Width:
43.2cm
Depth:
18.1cm
Height:
4.4cm
Weight:
2186g
Other
Voltage Rating:
5V DC
Standards Met:
CE, FCC Compliant, UL Listed
