SL-1N 7-port Serial, IR, and Relay, Ethernet Room Controller LED indicator for each port and function
Please sign in so that we can notify you about a reply

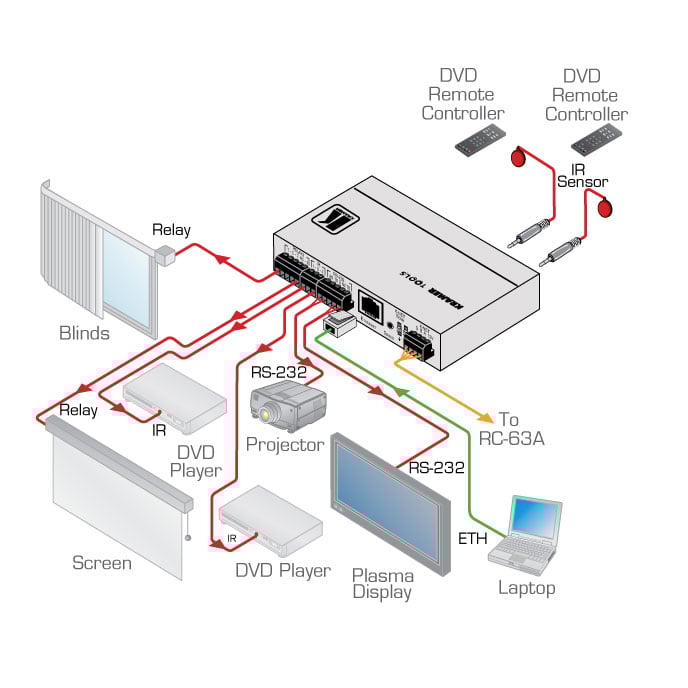

The Sl-1N is a Master Room Controller that can Operate over ethernet (LaN) with Control Ports that include Two BidIRectional Rs−232, Two IR and Three Relay. it Controls Devices Such as Scalers, Video Displays, audio amplifiers, Dvd Players, Sensors, Screens, Shades, Door Locks, and Lights. multiple Kramer ethernet Gateways can Be used to add Remote I/O Ports.The Sl-1N includes a Knet™ Connector Interface Which Enables access to The Master Controller From auxiliary Room Controllers Such as Control Keypads. The Sl−1N can also Provide Power to auxiliary Room Controllers Via The Knet™ Connectors.
Features
- 1 Ethernet Port-Connector for IP-Enabled Devices and Control Gateways for adding Remote I/O Ports.
- 1 K-Net™ Connector-Enables Communication Between the Master Controller and auxiliary Room Controllers Such as Control Keypads.
- K-Net™ Single Link Connection-Enables a Single Connection for Both Power and Control To auxiliary Controllers.
- 2 RS-232 Bi-Directional Control Ports-Serial Control Protocol for Compatible Devices.
- 2 Ir Emitter Control Ports-Infrared Control for Compatible Devices.
- 3 Relay Control Ports-Contact Closure Control for actions Such as Rolling Up and Down Screens, Drapes, Shades, and Blinds.
- Simultaneous IP Control Communication-with Up To 15 IP Control Clients.
- Kramer K-Config™ Compatible-Intuitive Windows-Based Configuration application for Fast and Easy Design Of Room Control Systems.
- Kramer Site-Ctrl™ Compatible- Remote Customer Site Control and Management Over Customer's IP Network.
- Ir Sensor and Ir Input Ports- Learn Commands From IR Remotes.
- Mini USB Port-for Firmware Upgrades Of Technical Services.
Brand:
Kramer
Part number:
30-80313090
Product Type:
7-Port Serial, IR, Relay, Ethernet Room Controller
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
1xEthernet Port, 1xK-NET™ Connector, K-NET™ Single Link Connection, 2xRS-232 Bi-directional Control Ports, 2xIR Emitter Control Ports, 3xRelay Control Ports, Simultaneous IP Control Communication, Kramer K-Config™ Compatible, Kramer Site-CTRL™ Com
Indicator Type:
LED
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Storage Temperature Range:
-40 to 70°C
Inputs and Ports
Bi-Directional Port:
2xRS-232 Serial on 3-Pin Terminal Blocks, 1xK-Net on 4-Pin Terminal Block Connector, 1xEthernet on an RJ45 Connector, 1xMini USB Connector for Local Programming Service
Input Port Type:
1xBuilt-In IR Sensor, 1xIR-In on 3.5mm Mini-Jack (for Learning)
Output Port Type:
2 IR-out and 3xRelays (36V AC or DC, 2A, 60V AC Maximum on Non-Inductive Load) on 2-pin Terminal Block Connector
Number of Ports:
7
Power
Current Rating:
180mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE
