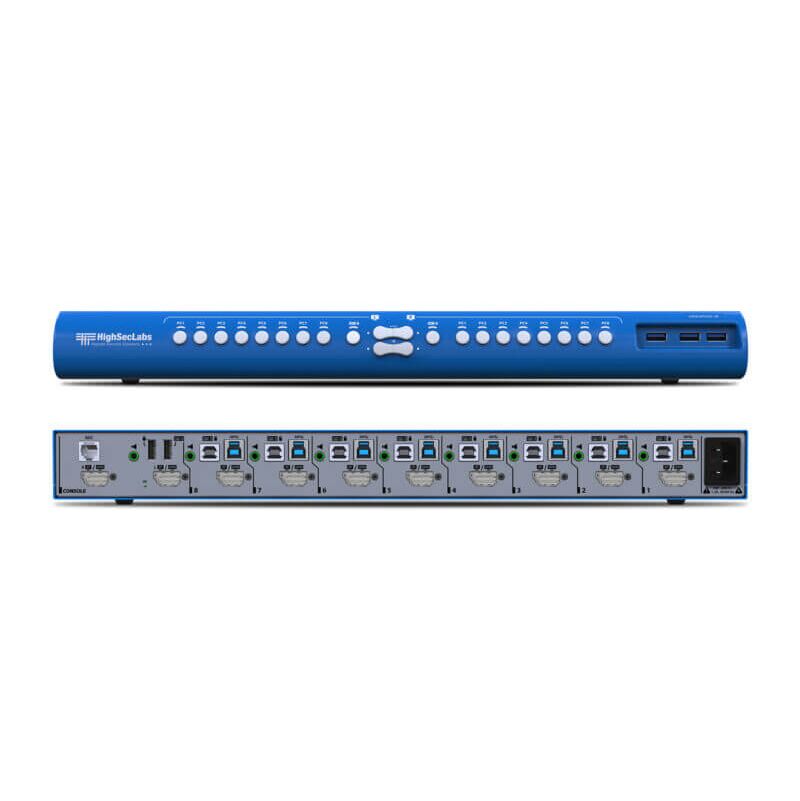

SX82PHU-N 8 Port Mini-Matrix KVM Switch, 2xDP/HDMI, USB Type-A, 3.5mm Audio Jack

Write a review
SX82PHU-N
HSL
Out of stock
Log in to see price Add to wish list

The Mini-Matrix KVM switch offered by HSL provides increased productivity in challenging multi-computer environments where users are required to view and interact with several computers while maintaining the highest isolation between computers and peripherals. Obviate the need for purchasing and installing dedicated, per-computer peripheral sets. Transfer text and files between all the computers that are connected to the KVM through the KVM (no network connection is needed between parties). Use standard copy and paste keyboard key combinations (CTRL+C / CTRL+V) or mouse context-menu commands to transfer data between computers that are connected to the KVM. Best suites scenarios where one or more computers have to be presented at the same time on multiple displays. For example: - In control centers where information from several sources has to be constantly displayed in real-time. - In meeting rooms where both visitor and host computers are to be viewed and controlled simultaneously.

Features
  • The ideal KVM switch for meeting rooms and control centers.
  • Smoothly switch between computers (Virtual Display Technology).
  • Copy & Paste.
  • Support various display layouts.
  • View applications in Ultra High Definition (UHD) 4K video quality.
  • Independently switch the Video/USB/Audio/Keyboard & Mouse ports between computers.
  • Express USB Charging.
  • Save valuable desk space.
Brand:
HSL
Specifications
Product Type:
8 Port Mini-Matrix KVM Switch
Maximum Operating Temperature:
+40°C
Special Features:
Reduce Costs, Save Valuable Desk Space
Supported Operating Systems:
Windows, Linux, Mac
Power Rating:
35W
Applications:
Ultrahigh Definition Applications on all Single and Dual Monitor KVM Models
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
3840x2160pixels, 1920x1200pixels
Inputs and Ports
Number of Ports:
8
Console Port Type:
2xDP/HDMI, USB Type-A, 3.5mm Audio Jack, 3xUSB Type-A
Computer Port Type:
2xDP/HDMI, USB Type-B, 3.5mm Audio Jack, USB Type-B
Power
AC Input Voltage Rating:
100 to 240V AC
Dimensions
Length:
44cm
Width:
19.2cm
Height:
4.8cm
Weight:
2.6kg
Other
Standards Met:
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada

SX82PHU-N 2 (HLT31845_HSL_UM_Secure-4_8P-Mini-Matrix_PP4_V1.2.pdf, 4,214 Kb) [Download]

SX82PHU-N 3 (HDC15285_HSL_DS_4-8P_NS_KVM-Mini-Matrix_Rev1.4.pdf, 2,048 Kb) [Download]
