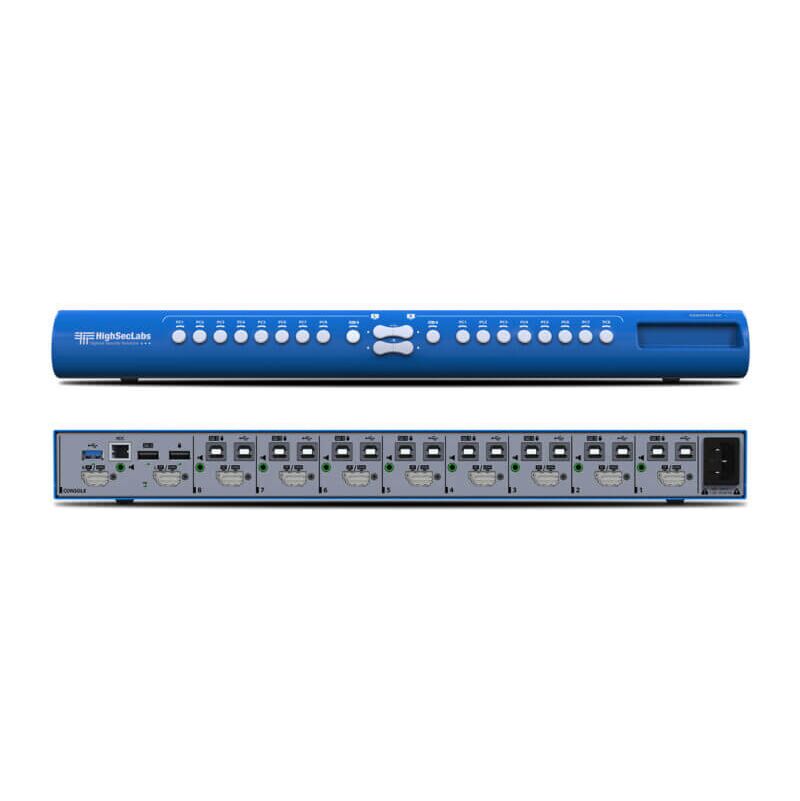

SX82PHU-4T Secure 8 Port Mini-Matrix KVM Switch, 2xDP/HDMI, USB Type-A, 3.5mm Audio Jack

The Mini-Matrix KVM switch offered by HSL provides increased productivity in challenging multi-computer environments where users are required to view and interact with several computers while maintaining the highest isolation between computers and peripherals. Easily switch between and interact with connected computers by moving the mouse from screen to screen. The ideal KVM switch for meeting rooms and control centers Best suits scenarios where one or more computers have to be presented at the same time on multiple displays. For example: - In control centers where information from several sources has to be constantly displayed in real-time. - In meeting rooms where both visitor and host computers are to be viewed and controlled simultaneously. High Resolution and refresh rate – HSL’s PH models (SX82PH-4 and SX82PHU-4) are supporting 4K 60HZ. Flexible Connectivity – HSL’s PH models (SX82PH-4 and SX82PHU-4) include a unique dual connector for combining DP and HDMI source with no need for external convertor. Certified against NIAP Common Criteria PP4.0 PSD Protection Profile (SX82PHU-4 Only)

Features
  • Securely share peripherals across different security domains.
  • Prevent information leaks.
  • The ideal KVM switch for meeting rooms and control centers.
  • High Resolution and refresh rate
  • Flexible Connectivity
  • Certified against NIAP Common Criteria PP4.0 PSD Protection Profile (SX82PHU-4 Only)
Brand:
HSL
Specifications
Product Type:
8 Port Mini-Matrix KVM Switch
Maximum Operating Temperature:
+40°C
Special Features:
Work Simultaneously on Two Computers, View the Screens of Four Computers, Avoid Typing Mistakes
Supported Operating Systems:
Windows, Linux, Mac
Power Rating:
35W
Applications:
Ultrahigh Definition Applications on all Mini-Matrix Models
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
3840x2160pixels@60Hz
Inputs and Ports
Number of Ports:
8
Console Port Type:
2xDP/HDMI, USB Type-A, 3.5mm Audio Jack, USB Type-A
Computer Port Type:
8xDP/HDMI, USB Type-B, 3.5mm Audio Jack, USB Type-B
Power
AC Input Voltage Rating:
100 to 240V AC
Dimensions
Length:
44cm
Width:
19.2cm
Height:
4.8cm
Weight:
2.6kg
Other
Standards Met:
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada

SX82PHU-4T 2 (HLT31845_HSL_UM_Secure-4_8P-Mini-Matrix_PP4_V1.2.pdf, 4,214 Kb) [Download]

SX82PHU-4T 3 (HDC16512_HSL_M-Line_DS_4_8P_SKVM_Mini-Matrix_M_Rev1.4.pdf, 857 Kb) [Download]
