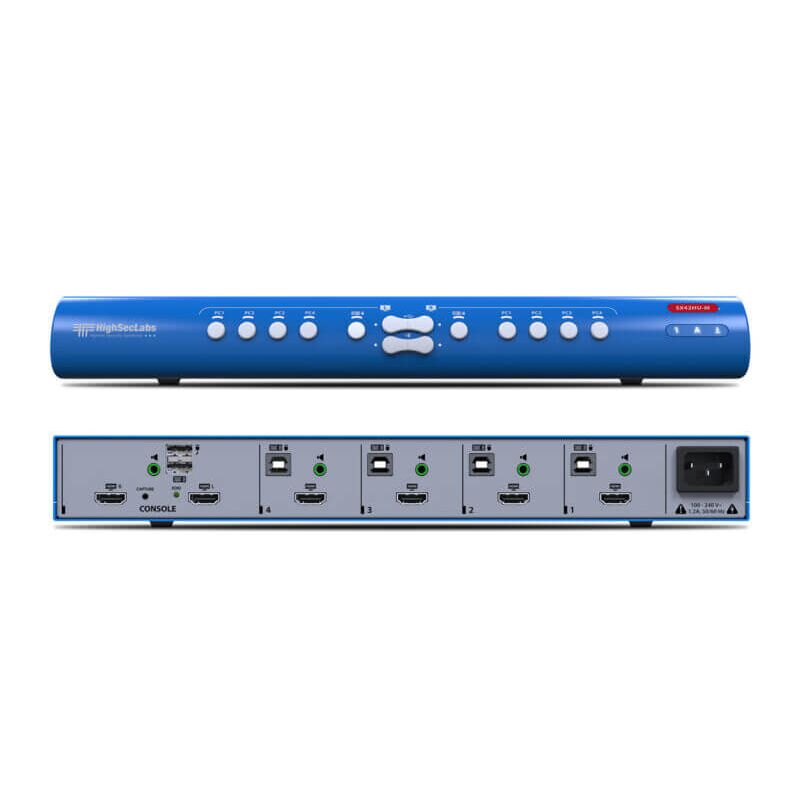

SX42HU-MCY Secure 4 Port Mini-Matrix KVM Switch, 2xHDMI 1.4, USB Type-A, 3.5mm Audio Jack
Please sign in so that we can notify you about a reply
The Mini-Matrix KVM switch offered by HSL provides increased productivity in challenging multi-computer environments where users are required to view and interact with several computers while maintaining the highest isolation between computers and peripherals. Unlike a traditional KVM Switch the Mini-Matrix allows the user to work on and interact with two of the 4 connected computers simultaneously. Switching is done by moving the mouse from screen to screen. Advance pre-sets allows to use the mini-matrix with additional displays connected or dual head computers. Certified against NIAP Common Criteria PP4.0 PSD Protection Profile (SX42PHU-4 Only). The ideal KVM switch for meeting rooms and control centers Best suites scenarios where one or more computers have to be presented at the same time on multiple displays. For example: - In control centers where information from several sources has to be constantly displayed in real-time. - In meeting rooms where both visitor and host computers are to be viewed and controlled simultaneously.
Features- Securely share peripherals across different security domains.
- Prevent information leaks.
- The ideal KVM switch for meeting rooms and control centers.
- Certified against NIAP Common Criteria PP4.0 PSD Protection Profile (SX42PHU-4 Only)
Brand:
HSL
Product Type:
4 Port Mini-Matrix KVM Switch
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Increased Productivity in Challenging Multi-Computer Environments
Supported Operating Systems:
Windows, Linux, Mac
Power Rating:
35W
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
3840x2160pixels@30Hz
Inputs and Ports
Number of Ports:
4
Console Port Type:
2xHDMI 1.4, USB Type-A, 3.5mm Audio Jack, USB Type-A
Computer Port Type:
4xHDMI 1.4, USB Type-B, 3.5mm Audio Jack, USB Type-B
Power
AC Input Voltage Rating:
100 to 240V AC
Dimensions
Length:
34.2cm
Width:
14.8cm
Height:
4.2cm
Weight:
1.6kg
Other
Standards Met:
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada
No reviews found
