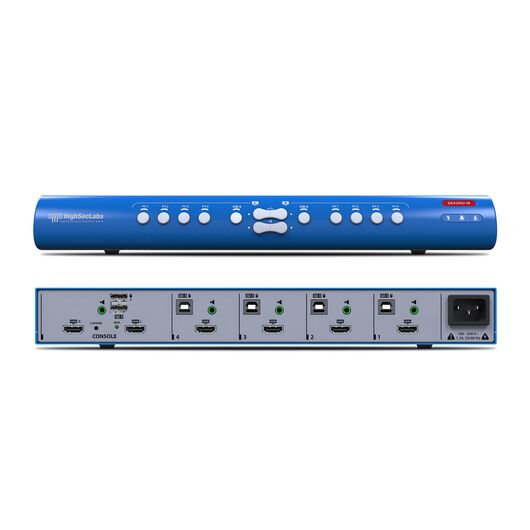

SX42HU-MC Secure 4 Port Mini-Matrix KVM Switch, HDMI 1.4, USB Type-A, 3.5mm Audio Jack
Please sign in so that we can notify you about a reply
The Mini-Matrix KVM switch offered by HSL provides increased productivity in challenging multi-computer environments where users are required to view and interact with several computers while maintaining the highest isolation between computers and peripherals. Unlike a traditional KVM Switch the Mini-Matrix allows the user to work on and interact with two of the 4 connected computers simultaneously. Switching is done by moving the mouse from screen to screen. Advance pre-sets allows to use the mini-matrix with additional displays connected or dual head computers.
Features- Securely share peripherals across different security domains.
- Prevent information leaks.
- The ideal KVM switch for meeting rooms and control centers.
- Certified against NIAP Common Criteria PP4.0 PSD Protection Profile (SX42PHU-4 Only)
Brand:
HSL
Product Type:
4 Port Mini-Matrix KVM Switch
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Increased Productivity in Challenging Multi-Computer Environments
Supported Operating Systems:
Windows, Linux, Mac
Power Rating:
35W
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
3840x2160pixels@30Hz
Inputs and Ports
Number of Ports:
4
Console Port Type:
2xHDMI 1.4, USB Type-A, 3.5mm Audio Jack, USB Type-A
Computer Port Type:
4xHDMI 1.4, USB Type-B, 3.5mm Audio Jack, USB Type-B
Power
AC Input Voltage Rating:
100 to 240V AC
Dimensions
Length:
34.2cm
Width:
14.8cm
Height:
4.2cm
Weight:
1.6kg
Other
Standards Met:
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada
