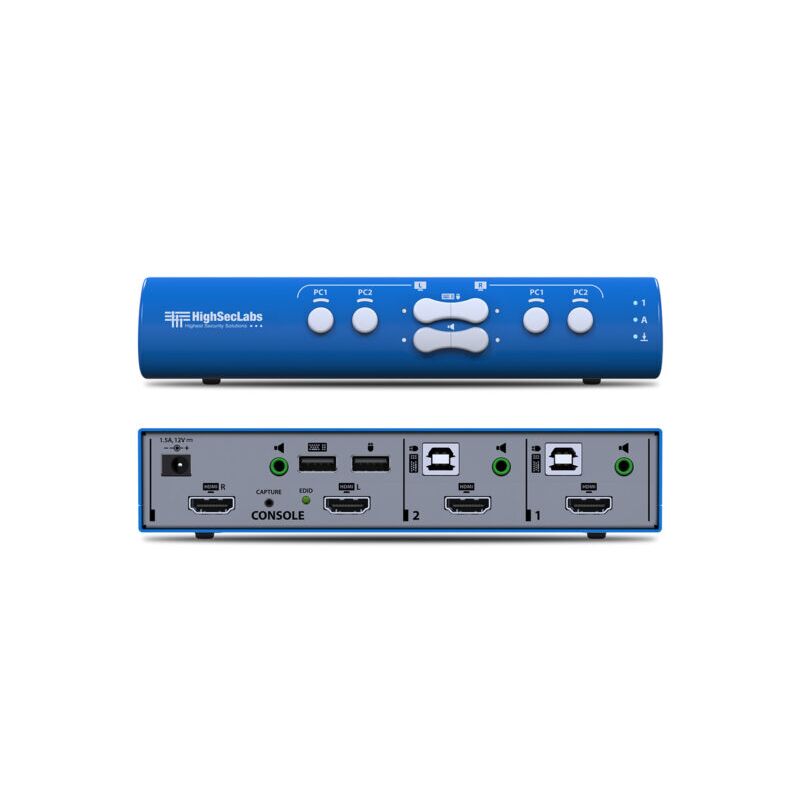

SX22H-MC Secure 2 Port Mini-Matrix KVM Switch, 2xHDMI 1.4, USB Type-A, 3.5mm Audio Jack

The Mini-Matrix KVM switch offered by HSL provides increased productivity in challenging multi-computer environments where users are required to view and interact with two computers while maintaining the highest isolation between computers and peripherals. Obviate the need for purchasing and installing dedicated, per-computer peripheral sets. Copy & Paste Transfer text and files between all the computers that are connected to the KVM through the KVM (no network connection is needed between parties). Use standard copy and paste keyboard key combinations (CTRL+C / CTRL+V) or mouse context-menu commands to transfer data between computers that are connected to the KVM. The ideal KVM switch for meeting rooms and control centers Best suites scenarios where one or two computers have to be presented at the same time on multiple displays. For example: - In control centers where information from two sources has to be constantly displayed in real-time. - In meeting rooms where both visitor and host computers are to be viewed and controlled simultaneously.

Features
  • Securely share peripherals across different security domains.
  • Prevent information leaks.
  • The ideal KVM switch for meeting rooms and control centers.
Brand:
HSL
Specifications
Product Type:
2 Port Mini-Matrix KVM Switch
Maximum Operating Temperature:
+40°C
Special Features:
Securely Share Peripherals Across Different Security Domains, Prevent Information Leaks
Supported Operating Systems:
Windows, Linux, Mac
Applications:
Ultrahigh Definition Applications on all Mini-Matrix Models
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
3840x2160pixels@30Hz
Inputs and Ports
Number of Ports:
2
Console Port Type:
2xHDMI 1.4, USB Type-A, 3.5mm Audio Jack
Computer Port Type:
2xHDMI 1.4, USB Type-B, 3.5mm Audio Jack
Power
AC Input Voltage Rating:
100 to 240V AC
DC Input Voltage Rating:
12V
Dimensions
Length:
17.7cm
Width:
8.2cm
Height:
3.5cm
Weight:
0.5kg
Other
Standards Met:
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada

SX22H-MC 1 (HDC16511_HSL_M-Line_DS_2P_SKVM_Mini-Matrix_M_Rev1.5.pdf, 529 Kb) [Download]

SX22H-MC 2 (HLT31946_HSL_UM_Secure_2-Port_KVM_Mini-Matrix_M-Line_Rev1.1.pdf, 1,383 Kb) [Download]

SX22H-MC 3 (HLT31891_HSL-QIG-2-Port-Mini-Matrix-SKVM_M-Line_Rev1.0.pdf, 938 Kb) [Download]
