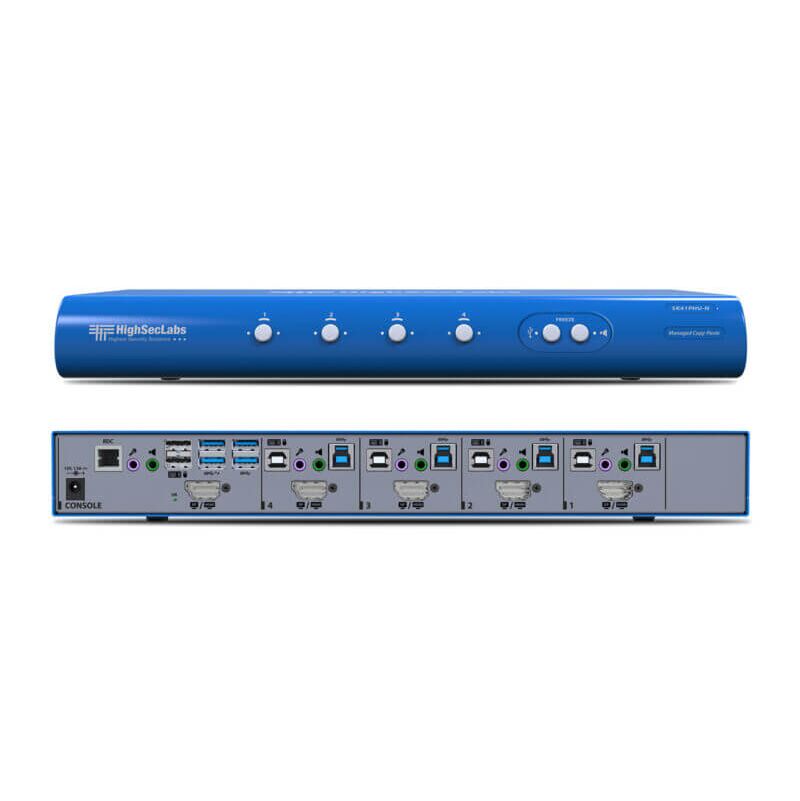

SK41PHU-N 4 Port Single-Head Commercial KVM Switch, 1xDP/HDMI, 4xUSB Type-A, 3.5mm Audio Jack

Share keyboard, video, mouse and audio peripherals between two computers. Simplify user experience Users that work with multiple computers such as, financial traders, are inconveniently forced to interact with multiple sets of keyboard, video, mouse and audio peripherals. The Keyboard Video Mouse (KVM) switch offered by HSL allows effortlessly sharing a single set of peripherals between two computers. Multi Monitor Support Dual head KVM models support sharing two displays between multiple dual-display computers hence allowing flexible presentation options such as screen-duplication and extend-view modes to fit any use case scenario. Copy & Paste: Transfer text and files between all the computers that are connected to the KVM through the KVM (no network connection is needed between parties). Use standard copy and paste keyboard key combinations (CTRL+C / CTRL+V) or mouse context-menu commands to transfer data between computers that are connected to the KVM. Feature rich KVM Includes versatile built-in features designed to enhance user experience and product usability. Save valuable desk space Allow users that work in space-restricted environments to interact with multiple computers in spite of hav‌ing limited desk space. Reduce costs Obviate the need for purchasing and installing dedicated, per-computer peripheral sets.

Features
  • Securely share peripherals across different security domains.
  • Prevent information leaks Obstacle threats derived from sharing and switching of vulnerable, untrusted or unauthorized peripheral devices. Block peripheral exploits, information leaks, eavesdropping, signal transmission, computer malware, hardware and firmware tampering by enforcing multilayered security mechanisms.
  • The ideal KVM switch for meeting rooms and control centers Best suites scenarios where one or more computers have to be presented at the same time on multiple displays. For example: In control centers where information from several sources has to be constantly displayed in real-time. In meeting rooms where both visitor and host computers are to be viewed and controlled simultaneously
Brand:
HSL
Specifications
Product Type:
4 Port Single-Head Commercial KVM Switch
Maximum Operating Temperature:
+40°C
Special Features:
Reduce Costs, Save Valuable Desk Space
Supported Operating Systems:
Windows, Linux, Mac
Applications:
Ultrahigh Definition Applications on all Single and Dual Monitor KVM Models
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
3840x2160pixels
Inputs and Ports
Number of Ports:
4
Console Port Type:
1xDP/HDMI, USB Type-A, 3.5 mm Audio Jack, 3.5 mm Microphone Jack, 4xUSB Type-A
Computer Port Type:
1xDP/HDMI, USB Type-B, 3.5 mm Audio Jack, 3.5 mm Microphone Jack, USB Type-B
Power
AC Input Voltage Rating:
100 to 240V AC
DC Input Voltage Rating:
12V
Dimensions
Length:
34.2cm
Width:
14.8cm
Height:
4.2cm
Weight:
1.6kg
Other
Standards Met:
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada

SK41PHU-N 1 (HDC14722_HSL_DS_4P_SH_NS_KVM_Rev1.3.pdf, 1,868 Kb) [Download]

SK41PHU-N 2 (HDC14845_HSL-QIG-248-Port-SH-NS-KVM_Rev1.1.pdf, 1,085 Kb) [Download]
