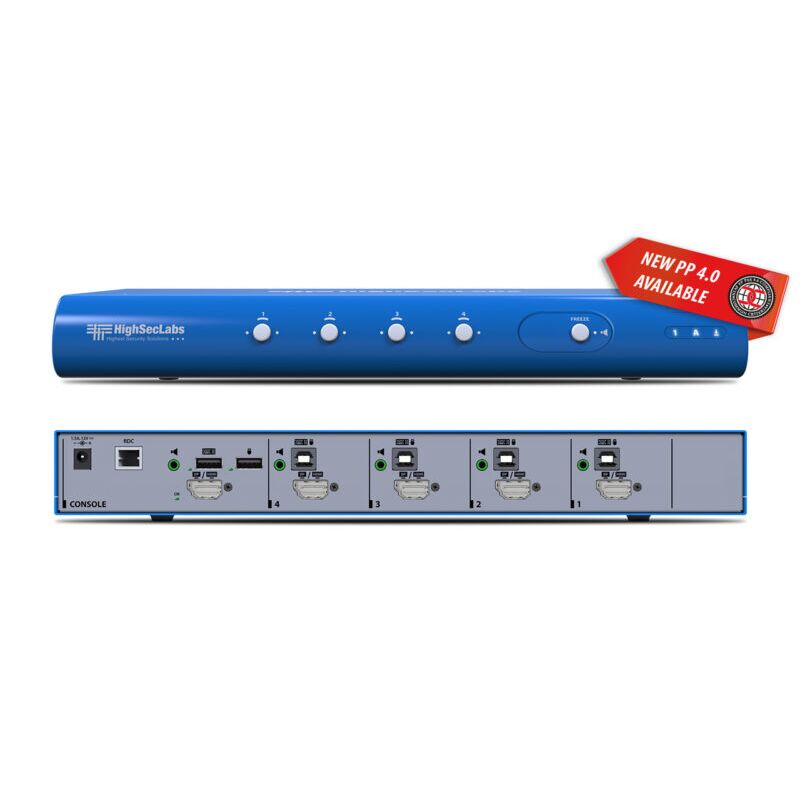

SK41PH-4 Secure 4 Port Single-Head KVM Switch, DP 1.2/HDMI 2.0, USB Type-A, 3.5mm Audio Jack

Write a review
SK41PH-4
HSL
Log in to see price Add to wish list Add to Project

Keyboard Video Mouse (KVM) switch offered by HSL allows securely sharing keyboard, video, mouse, audio and USB peripherals between multiple computers while maintaining the highest isolation. Obviate the need for purchasing and installing dedicated, per-computer peripheral sets.

Features
  • Securely share peripherals across different security domains
  • Prevent information leaks
  • Filter USB Peripherals
  • Certified against NIAP Common Criteria PP4.0 PSD Protection Profile (SK41PHU-4 Only)
Brand:
HSL
Product Type:
4 Port Single-Head KVM Switch
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Flexible Installation
Supported Operating Systems:
Windows, Linux, Mac
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
3840x2160pixels@60Hz
Inputs and Ports
Number of Ports:
4
Console Port Type:
2xDP 1.2/HDMI 2.0, USB Type-A, 3.5mm Audio Jack
Computer Port Type:
2xDP 1.2/HDMI 2.0, USB Type-B, 3.5mm Audio Jack
Power
AC Input Voltage Rating:
100 to 240V AC
DC Input Voltage Rating:
12V
Dimensions
Length:
34.2cm
Width:
14.8cm
Height:
4.2cm
Weight:
1.6kg
Other
Standards Met:
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada

SK41PH-4 1 (HLT28196_HSL_DS_SH_SKVM_PP4_Rev-1.4-1.pdf, 1,602 Kb) [Download]

SK41PH-4 2 (HDC16523_HSL_M-Line_DS_4P_SH_SKVM_M_Rev1.2.pdf, 822 Kb) [Download]

SK41PH-4 3 (HLT31926_HSL_UM_2-4-8-Port_SKVM_Switches_PP4_Rev-1.0.pdf, 1,290 Kb) [Download]
