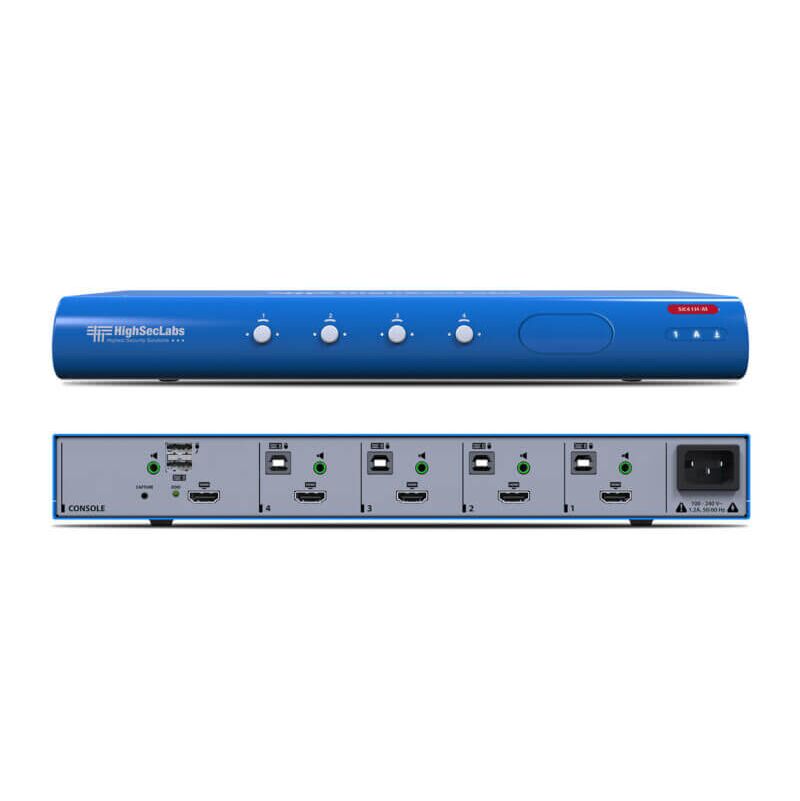

SK41H-MC Secure 4 Port Single-Head KVM Switch, 1xHDMI 1.4, USB Type-A, 3.5mm Audio Jack

Keyboard Video Mouse (KVM) switch offered by HSL allows securely sharing keyboard, video, mouse, audio and USB peripherals between multiple computers while maintaining the highest isolation. Obviate the need for purchasing and installing dedicated, per-computer peripheral sets. Certified against NIAP Common Criteria PP4.0 PSD Protection Profile (SK41PHU-4 Only) Securely share peripherals across different security domains Securely share peripherals between computers that belong to different security classifications levels while keeping the highest possible data separation security. Prevent information leaks Obstacle threats derived from sharing and switching of vulnerable, untrusted or unauthorized peripheral devices. Block peripheral exploits, information leaks, eavesdropping, signal transmission, computer malware, hardware and firmware tampering by enforcing multilayered security mechanisms. Filter USB Peripherals Block unauthorized USB devices while allowing secure switching of smart card and biometric authentication devices between computers. Whitelist and blacklist specific USB devices based on VID/PID characteristics

Features
  • Securely share peripherals across different security domains.
  • Prevent information leaks.
  • Certified against NIAP Common Criteria PP4.0 PSD Protection Profile (SX42PHU-4 Only)
Brand:
HSL
Specifications
Product Type:
4 Port Single-Head KVM Switch
Maximum Operating Temperature:
+40°C
Special Features:
Securely Share Peripherals Across Different Security Domains, Prevent Information Leaks
Supported Operating Systems:
Windows, Linux, Mac
Power Rating:
35W
Applications:
Ultrahigh Definition Applications on all Single and Dual Monitor KVM Models
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
3840x2160pixels@30Hz
Inputs and Ports
Number of Ports:
4
Console Port Type:
1xHDMI 1.4, USB Type-A, 3.5mm Audio Jack
Computer Port Type:
4xHDMI 1.4, USB Type-B, 3.5mm Audio Jack
Power
AC Input Voltage Rating:
100 to 240V AC
Dimensions
Length:
34.2cm
Width:
14.8cm
Height:
4.2cm
Weight:
1.6kg
Other
Standards Met:
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada

SK41H-MC 1 (HLT28196_HSL_DS_SH_SKVM_PP4_Rev-1.4-1.pdf, 1,602 Kb) [Download]

SK41H-MC 2 (HDC16523_HSL_M-Line_DS_4P_SH_SKVM_M_Rev1.2.pdf, 822 Kb) [Download]

SK41H-MC 3 (HLT31926_HSL_UM_2-4-8-Port_SKVM_Switches_PP4_Rev-1.0.pdf, 1,290 Kb) [Download]
