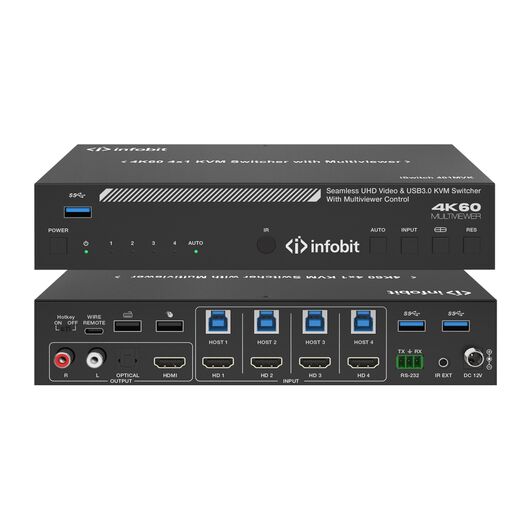

iSwitch 401MVK 4K60 4x1 KVM Switcher, with Multiviewer
Please sign in so that we can notify you about a reply
This 4K60 4x1 Seamless UHD Video & USB 3.0 KVM Switcher was designed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can manage each input, and create combinations of the four inputs on a single display, as well as adjust the position of any input
Features- HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps uncompressed video bandwidth
- Input and output resolutions support up to 4K2K@60Hz 4:4:4, as specified in HDMI 2.0b
- Support LPCM, DD+, DTS audio pass-through, up to 7.1 audio channel
- Seamless switching between input channels and combined multiple images on single UHD monitor
Brand:
Infobit
Product Type:
KVM Switch
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Compact Design for Easy and Flexible Installation
Supported Operating Systems:
Windows, Mac OS, Linux
Power Rating:
18.4W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x4K60 4x1 Seamless UHD Video & USB 3.0 KVM Switcher, 1xIR Remote, 1x3pin-3.81mm Phoenix Connector, 1xFixed Frequency 38kHz IR Receiver Cable, 2xMounting Ear, 4xMachine Screw, 4xUSB Cable, 1x12V/2.5A Locking Power Supply, 1xUser Manual
Performance
Maximum Resolution:
4K2K@60Hz (4:4:4)
Inputs and Ports
Number of Ports:
18
Console Port Type:
4xUSB 3.0, 2xUSB 2.0, 3xUSB 3.0
Computer Port Type:
2xUSB 2.0
Power
AC Input Voltage Rating:
100 to 240V
DC Input Voltage Rating:
12V
Dimensions
Length:
10cm
Width:
22cm
Height:
4.4cm
Weight:
443g
Other
Standards Met:
US/EU Standard, CE/FCC/UL Certified, IEC 61000-4-2
