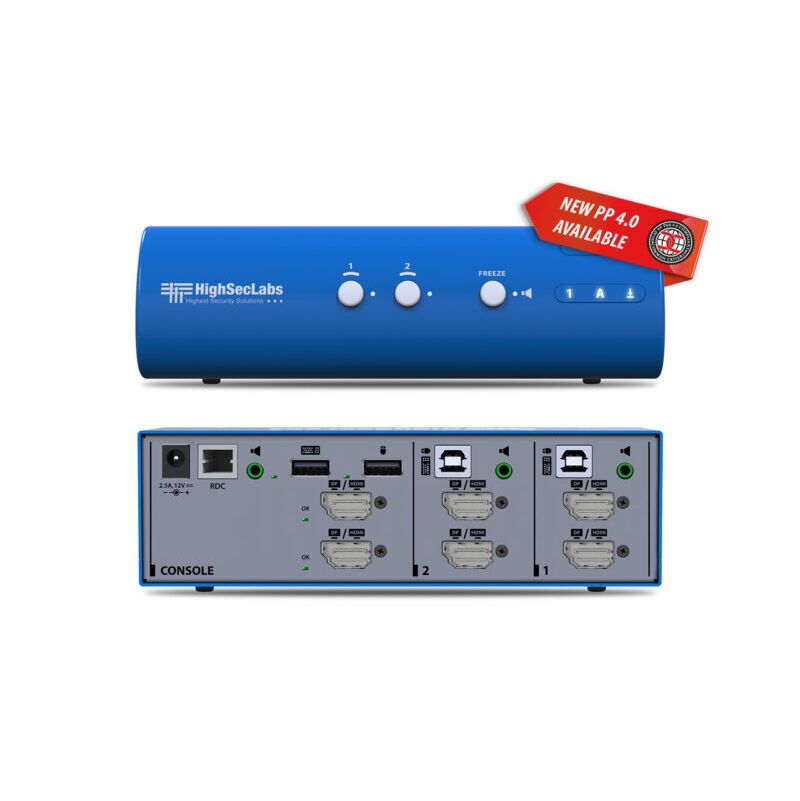

DK22PH-N Secure 2 Port Dual-Head KVM Switch, 2xDP 1.2/HDMI 2.0, USB Type-A, 3.5mm Audio Jack

Keyboard Video Mouse (KVM) switch offered by HSL allows securely sharing keyboard, video, mouse and audio peripherals between two computers while maintaining the highest isolation. Obviate the need for purchasing and installing dedicated, per-computer peripheral sets. Compliant with NIAP Common Criteria PP4.0 PSD Protection Profile (DK22x-4 Products Only). Securely share peripherals across different security domains Securely share peripherals between computers that belong to different security classifications levels while keeping the highest possible data separation security. Prevent information leaks Obstacle threats derived from sharing and switching of vulnerable, untrusted or unauthorized peripheral devices. Block peripheral exploits, information leaks, eavesdropping, signal transmission, computer malware, hardware and firmware tampering by enforcing multilayered security mechanisms. Multi Monitor Support Dual head KVM models provide flexible presentation options by supporting duplicate and extend view modes to fit any use case scenario.

Features
  • Securely share peripherals across different security domains
  • Prevent information leaks
  • Multi Monitor Support
  • Compliant with NIAP Common Criteria PP4.0 PSD Protection Profile
Brand:
HSL
Specifications
Product Type:
2 Port Dual-Head KVM Switch
Maximum Operating Temperature:
+40°C
Special Features:
Flexible Installation, Firmware Anti-Tampering
Supported Operating Systems:
Windows, Linux, Mac
Humidity:
0 to 80%
Minimum Operating Temperature:
0°C
Product Life-Cycle:
10yrs
Performance
Maximum Resolution:
3840x2160pixels@60Hz
Inputs and Ports
Number of Ports:
2
Console Port Type:
2xDP 1.2/HDMI 2.0, USB Type-A, 3.5mm Audio Jack
Computer Port Type:
2xDP 1.2/HDMI 2.0, USB Type-B, 3.5mm Audio Jack
Power
AC Input Voltage Rating:
100 to 240V AC
DC Input Voltage Rating:
12V
Dimensions
Length:
17.7cm
Width:
9.2cm
Height:
5cm
Weight:
0.6kg
Other
Standards Met:
CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada

DK22PH-N 1 (HLT24228_HSL_DS_DH_SKVM_PP4_Rev-1.5.pdf, 1,136 Kb) [Download]

DK22PH-N 2 (HLT31926_HSL_UM_2-4-8-Port_SKVM_Switches_PP4_Rev-1.0.pdf, 1,290 Kb) [Download]
