2211078-02 Extender Kit, HDMI (Video, Audio IR & RS232) to 4K UHD, Includes Tx, Rx, and 2x PSU
Please sign in so that we can notify you about a reply

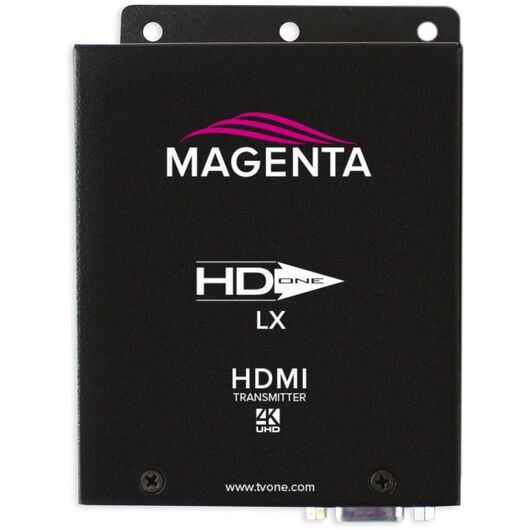

Magenta’s HD-One LX is a top of the line 4K and 1080p extender that greatly reduces the issues that most extenders face. The HD-One DX can send 1920x1200 resolution HDCP-protected video, embedded audio, RS-232 control and IR to a distance of 328 feet (100 meters) and 4K60 200 feet (60m), all on a single Cat6 while also using less power, dissipating less heat and providing significantly better resistance to environmental emissions and interference. In addition to video, the HD-One LX also functions with HDMI embedded audio. Dolby®, TrueHD, and DTS-HD Master Audio are all supported. HD-One is fully HDCP compliant and features plug-and-play functionality. Most importantly for installers, HD-One products just work, period.
Features- 1920x1080, 1080P/60, Resolution, 4K UHD (LX,DX)
- Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
- Supports Embedded HDMI Audio, Including Dolby® TrueHD and DTS-HD Master Audio
- No Adjustments or Tuning Required
- 328'/100 Meter Reach
- 200'/60 Meter Reach 4k Resolutions (LX, DX)
- 500’/152 Meter Reach (LX500, DX500)
- HDMI 1.4 Compliant, HDBaseT
- HDCP Compliant
- Bi-Directional RS-232 Interface (HD-One LX/LX500)
- Two-Way IR Support (HD-One LX/LX500)
- Includes one IR Emitter/Receiver pair (HD-One LX/LX500)
- Tolerances Designed for Commercial Environments
- Compatable with CORIOmax HDBaseT input and output modules
Brand:
tvONE
Product Type:
Extender Kit
Specifications
Maximum Operating Temperature:
55°C
Interconnect Cable Type:
CAT5e, CAT6, CAT6e, CAT7 UTP, STP/FTP
Special Features:
Embedded HDMI Audio, Including Dolby TrueHD, DTS-HD Master Audio
Maximum Storage Temperature:
85°C
Housing Material:
Metal
Minimum Storage Temperature:
-20°C
Humidity:
95%
Minimum Operating Temperature:
0°C
Back View:
1xHDMI Type A, 1xRJ45, 1xDC Power, 1xDB9F, 2x3.5mm Jack
Includes:
(1) IR Emitter, (1) IR Receiver
Performance
Video Resolution:
1920x1200pixels@60Hz
Baud Rate:
115200bps, Full Duplex
Maximum Transmission Distance:
100m
Inputs and Ports
Audio Input Type:
3.5mm Mini Jack
Audio Output Type:
3.5mm Mini Jack
Video Input Type:
HDMI Type A
Front View:
1xHDMI Type A, 1xRJ45, 1xDC Power, 1xDB9F, 2x3.5mm Jack
System Link Output:
RJ45
System Link Input:
RJ45
Dimensions
Length:
13cm
Width:
30cm
Height:
8.8cm
Weight:
0.2kg
Other
Standards Met:
RoHS, CE, FCC Class A
