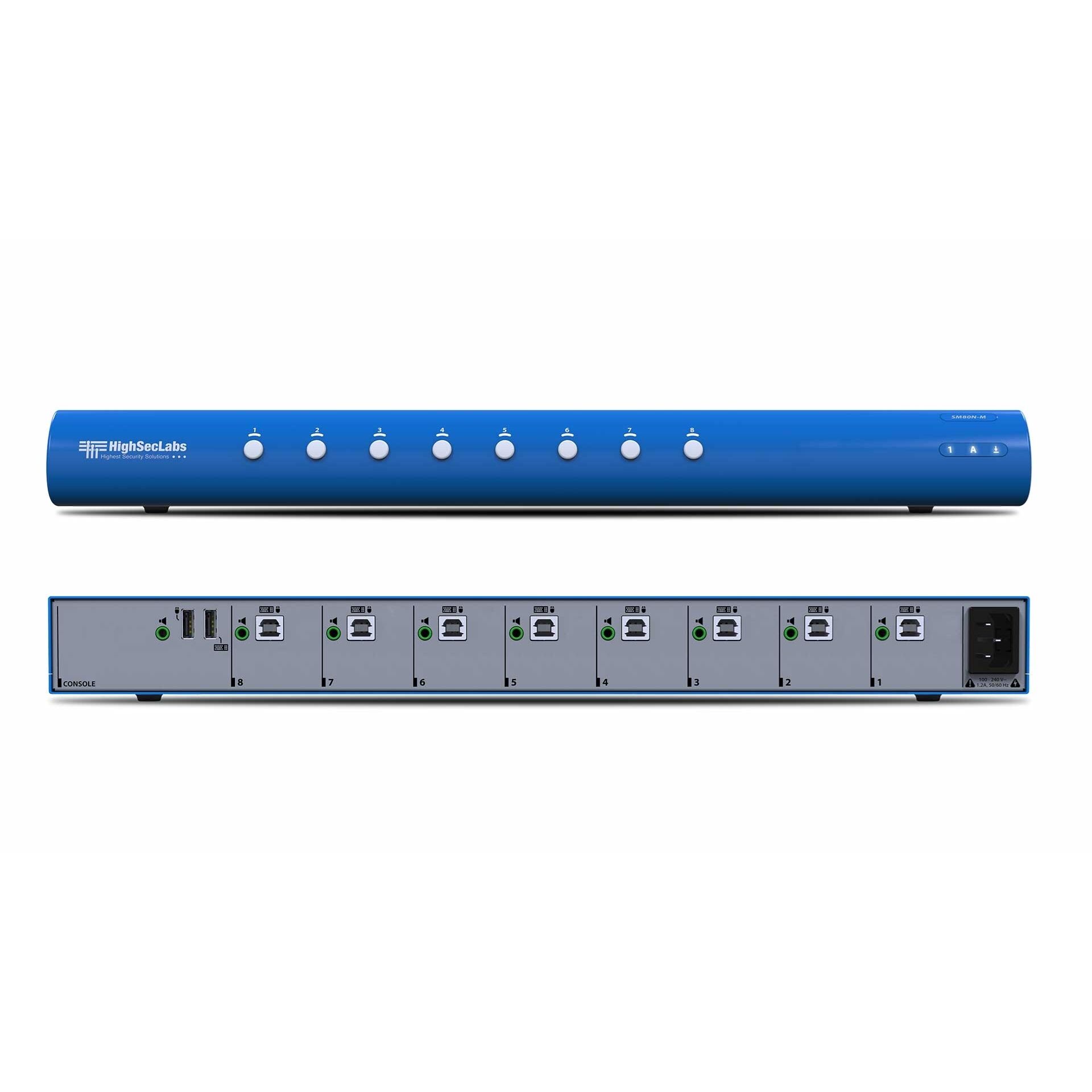

SM80N-M Secure 8-port KM Switch
Please sign in so that we can notify you about a reply
Keyboard Mouse (KM) switch offered by HSL allows interacting with multiple computers in real-time while maintaining the highest isolation between computers and peripherals. Directly connect separate display(s) to each computer and securely share keyboard, mouse, audio and USB devices through the KM.
Seamless switching between connected computers Switch between connected computers simply by moving the mouse curser from screen to screen.
Control multi-monitor computers Support multi-monitor computers with up to 4 displays per computer in duplicate or extended modes (Requires driver installation, currently available only for Windows).
Compliant with NIAP Common Criteria PP4.0 PSD Protection Profile (SM80N-4 Only)
Brand:
HSL
Part number:
CPN15223
Product Type:
High Sec Labs Secure 8-Port KM Switch
Specifications
Maximum Operating Temperature:
+40В°C
USB Keyboard/Mouse Emulation (Yes/No):
Yes
Special Features:
Highest Security by Design, Work Freely Without Compromising Security, Prevent Information Leaks, Filter USB Peripherals, Smooth Switching Between Computers, Keyboard Lock Indication, Multiple Display Layout
OS Compatibility:
Windows, Linux, Mac
Power Rating:
35W
Maximum Storage Temperature:
+60В°C
Applications:
Highest Security by Design, Work Freely Without Compromising Security, Prevent Information Leaks, Filter USB Peripherals, Smooth Switching Between Computers, Keyboard Lock Indication, Multiple Display Layouts, Biometric/Smart-Card Reader Support
Minimum Storage Temperature:
-20В°C
Humidity:
0 to 80%
Minimum Operating Temperature:
0В°C
Product Life-Cycle:
10yrs
Inputs and Ports
Number of Ports:
8
Console Port Type:
2xUSB-A Connector for Keyboard and Mouse, 1x3.5mm Mini Jack for Unbalanced Stereo Audio, 1xRJ45 Connector for Control
Computer Port Type:
8xUSB-B Connectors for Keyboard and Mouse, 8 3.5mm Mini Jacks for Unbalanced Stereo Audio
Power
AC Input Voltage Rating:
100 to 240V AC
Dimensions
Width:
44cm
Depth:
19.2cm
Height:
4.8cm
Weight:
2.4kg
Other
Standards Met:
CE, RCM Certified, FCC Compliant, VCCI Certification, TUV Certification
