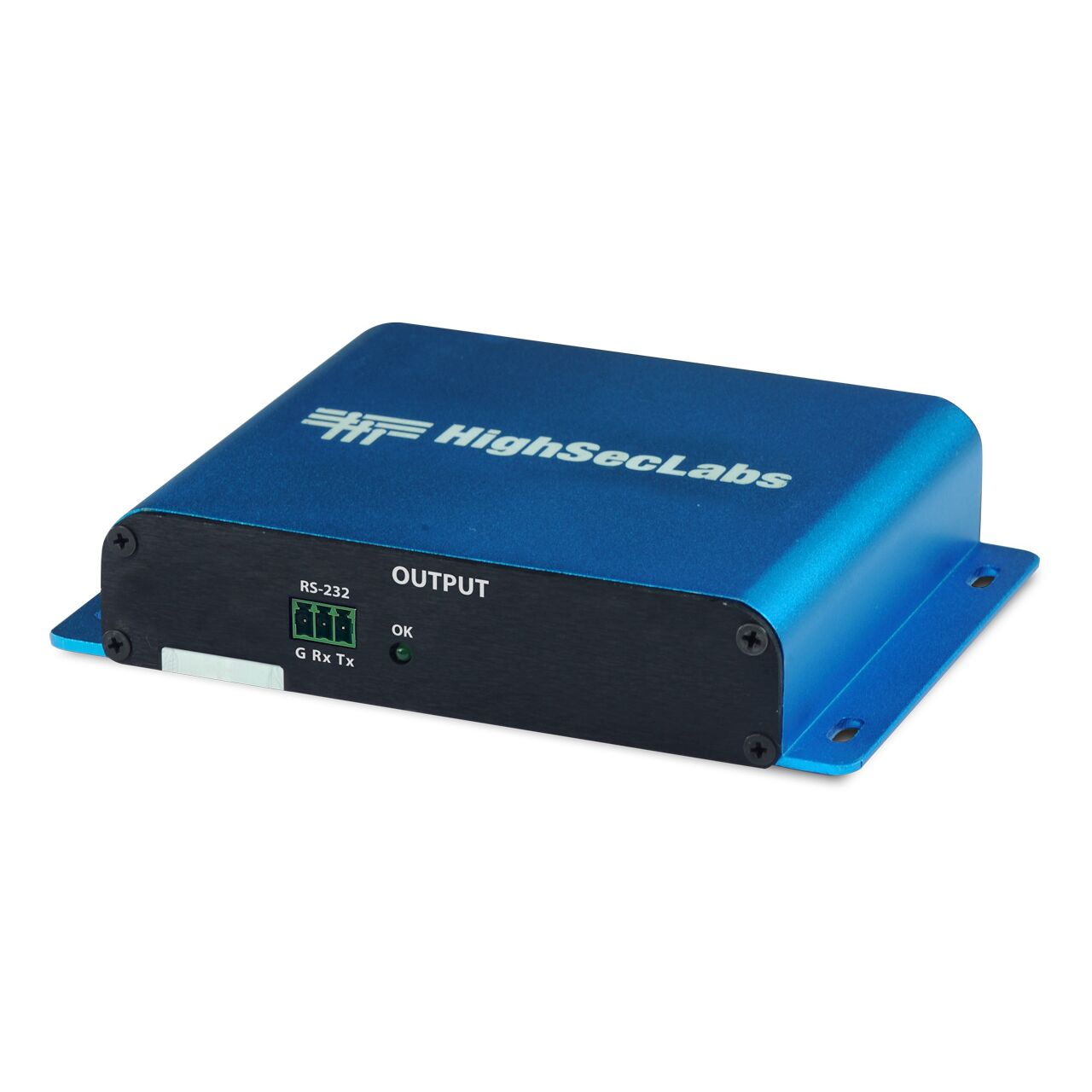

FT11N-4 KVM Isolator Diode, RS-232, Uni-Directional
Please sign in so that we can notify you about a reply
The Secure RS-232 Isolators receive an RS-232 command from any connected device and send it unidirectionally forward to its destination device while ensuring there is no return signal from the destination to the originating device. The FF11N-4 and FT11N-4 are especially suited to protect in any scenario where command and monitoring information is sent between two otherwise separated networks. SCADA, System synchronization, control commands and information sharing can all be securely done via the Secure RS-232 Isolator family. The Secure RS-232 Isolator permits one-way data flow from the serial port of one computer system to the serial port of another. Using the Secure RS-232 Isolator, control and monitoring commands and status events can be sent between two secure devices. Controlling different devices of different classification levels using a central control system is accomplished securely by using HSL’s Secure RS-232 Isolator. The configurable Secure RS-232 Isolator permits the creation of rules, using regular expressions, to filter the information passed and to limit the type of events and commands that can pass through the isolator.
Features- The RS-232 Data Diode allows one-way data flow from the serial port of one computer system to the serial port of another
- Using HSL secure unidirectional data diode it is possible to send control and monitoring commands and status events between two secure devices
- Control different devices having different classification level using a central control system securely by using HSL's RS232 diode
- The configurable RS232 data diode allows to create rules, using regular expression, to filter the information passed and limit the type of events and commands.
Brand:
HSL
Product Type:
KVM Isolator Diode
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Unidirectional by Design, Rule Based System, Flexible Configuration, Transparent
OS Compatibility:
Windows, Linux, Mac
Maximum Storage Temperature:
+60°C
Minimum Storage Temperature:
-20°C
Humidity:
20 to 80%
Minimum Operating Temperature:
0°C
Includes:
Wall-Mounted Power Supply
Product Life-Cycle:
10yrs
Power
AC Input Voltage Rating:
90 to 240V
DC Input Voltage Rating:
12V
Dimensions
Width:
14.5cm
Depth:
10.5cm
Height:
2.8cm
Weight:
0.3kg
