KDS-MP2 HD Digital Signage Media Player, 12V DC, 8 GB
Please sign in so that we can notify you about a reply

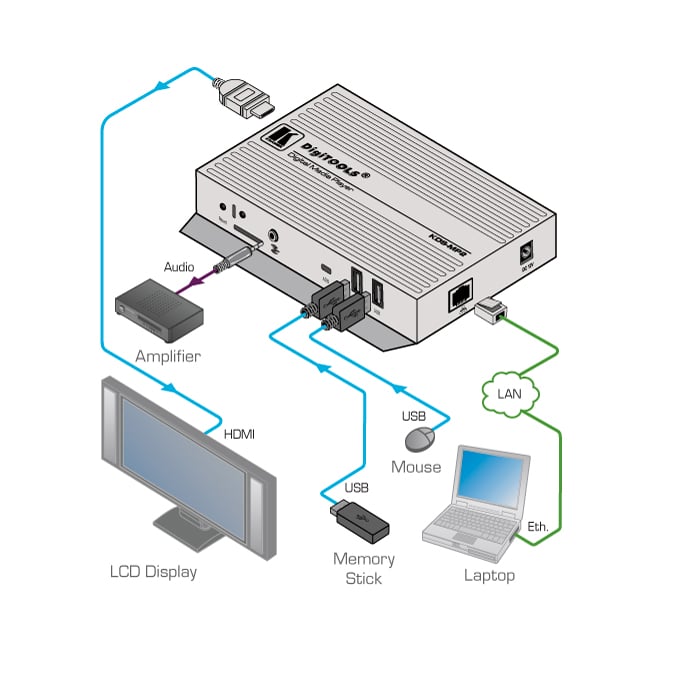

The KDS−MP2 is a high−quality LAN−based digital signage media player. The unit receives content from the Media Manager software installed on the PC, either via LAN or from an external USB memory stick, load it into its internal memory and then displays it with image quality of up to 1080p HD via HDMI output.
Features
- 1080p Full HD Support — Resolutions up to WUxGA and 1080p.
- High Quality HDMI Video & Audio.
- Codec Format Support — MPEG–1, MPEG–2, MPEG L2, MP3, H.264/MPEG–4, and VC–1.
- Memory Options — 8GB internal.
- NTP Client — For time synchronization.
- Integrated SMIL Control — CMS device management in LAN environments.
- SMIL 3.0 Instruction (Sub–Set) Support.
- CMS Device Management — In LAN environments using the integrated SMIL control.
- Perforated Side Panel — For efficient heat dissipation.
- VESA Standard Mounting Bracket — For mounting on–wall, inside a cabinet or to the VESA standard screw holes on the rear panel of a display.
- Media Manager Software — For easy, powerful and versatile management of digital signage content via a PC.
- Media–Manager Multi–language Support — Ready–made templates for screen layouts, logos, tickers and widgets.
- Compact DigiTOOLS® — Built–in mounting bracket.
Brand:
Kramer
Part number:
60-00002390
Specifications
Product Type:
HD Digital Signage Media Player
Flash Memory:
8GB
Internal Storage Memory:
8GB
Inputs and Ports
Audio Port Type:
HDMI Audio and Analog Line-Out (Dual Output)
I/O Interface Type:
1xHDMI, 2xUSB 2.0, 1xEthernet on a RJ45 Connector, 1xUnbalanced 3.5mm Stereo Audio Jack, 1xMicroSD Card Slot
Number of Video Port:
1
Number of Audio Port:
2
Video Port Type:
HDMI 1.4
Dimensions
Width:
13.9cm
Depth:
12.9cm
Height:
3.1cm
Other
Voltage Rating:
12V DC
Warranty:
1yr
