VX800I2 4K Ultra HD PTZ Video Conference Camera

Write a review
VX800I2
VHD
Log in to see price Add to wish list Add to Project

Advanced video recording equipment specially designed for executive-level meetings, educational recording and broadcasting, etc., with built-in 4K-level dual lenses, clear picture quality; equipped with AI automatic frame selection, voice tracking and intelligent guidance algorithms, no manual operation is required to accurately capture images, and Automatically switch between panoramic and close-up images to meet the needs of diverse scenes.

Features
  • Integrated design
  • 4K ultra-clear image quality
  • Wide angle and long zoom
Brand:
VHD
Product Type:
Video Conferencing Camera
Specifications
Lens Type:
12X, 4.4mm to 52.8mm, F1.8 to F2.6
Video Stream Type:
First Stream, Second Stream, Third Stream, Fourth Stream
Horizontal Angle of View:
71 to 8.2°
Tilt Speed Range:
0.44 to 15°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5Lux@(F1.8, AGC ON)
Vertical Angle of View:
42.7 to 4.5°
Audio Compression Type:
AAC, G711A
Sensor Type:
1/2.5in CMOS Effective Pixels:8.51M
Vertical Rotation Range:
-30 to +30°
Special Features:
Built-In Microphone, Wide Angle and Long Zoom
Power Rating:
18W
Support Protocols:
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, GB/T28181, Multicast
Operating Temperature Range:
-10 to +40°C
Performance
Video System Type:
4K@30fps, 4K@25fps, 4K@29.97fps1080P@30fps, 1080P@25fps SDI: 1080P@30fps, 1080P@25fps
Main Stream Resolution:
3840x2160pixels, 1920x1080pixels, 1280x720pixels, 1024x576pixels, 720x480pixels, 720x408pixels, 640x480pixels, 640x360pixels
Bit Rate Type:
Variable Rate, Constant Rate
Video Bit Rate:
32 to 51200Kbps
Video Signal-to-Noise Ratio:
≥ 55dB
Digital Noise Reduction:
3D
Sub Stream Resolution:
720x576pixels, 720x480pixels, 320x240pixels
Shutter Time:
1/30 to 1/10000sec
Frame Rate:
1 to 25fps (50Hz), 1 to 30fps (60Hz)
Video Compression Type:
H.265/H.264/MJPEG
Scanning Mode:
Progressive
Audio Bit Rate:
48Kbps, 64Kbps, 96Kbps, 128Kbps
Pan Speed Range:
1.61 to 75.56°/s
Preset Accuracy:
0.1°

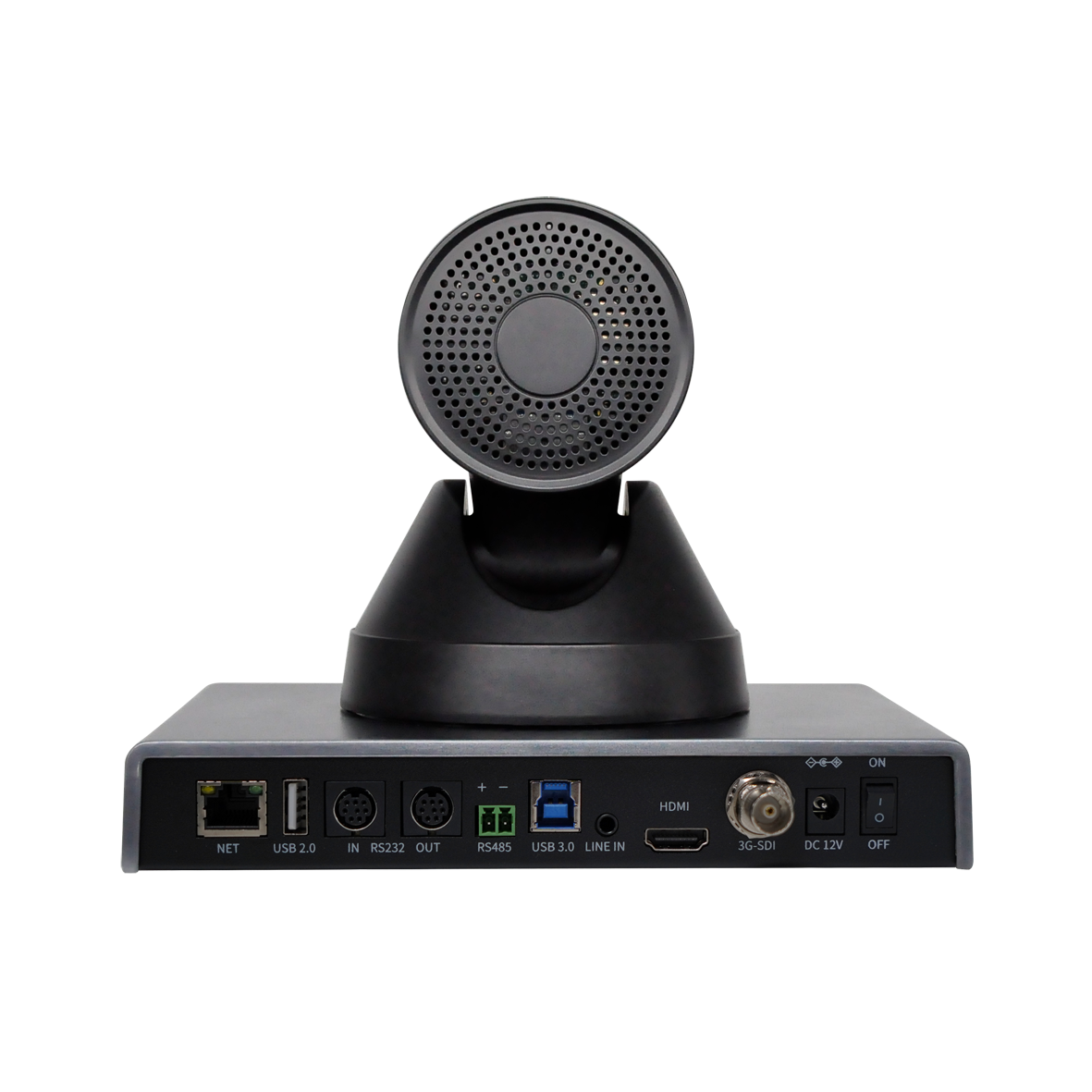

Inputs and Ports
Audio Interface Type:
1xLine In, 3.5mm Jack
HD Output Type:
1xHDMI 2.0, 1x 3G-SDI BNC
USB Type:
1xUSB 2.0 Type-C, 1xUSB 3.0 Type-C
Communication Interface:
1xRS232 In: 8-pin, VISCA/Pelco-D/Pelco-P Protocol, 1xRS232 Out: 8-Pin, VISCA/Pelco-D/Pelco-P Protocol, 1xRS485 2-Core Phoenix Port, VISCA/Pelco-D/Pelco-P Protocol
Interface Type:
1xRJ45 10M/100M/1000M Adaptive Ethernet
Power
Input Voltage:
12V DC
Current Rating:
2A
Power Jack Type:
DC-005/2.0 Type (12V DC)
Dimensions
Length:
20cm
Width:
15cm
Depth:
16.5cm
