Catalog :: Professional Video :: Video Conferencing Solutions :: Video Conferencing Accessories :: Video Conferencing Cameras :: VX752A USB 3.0 4K60P Professional PTZ Camera

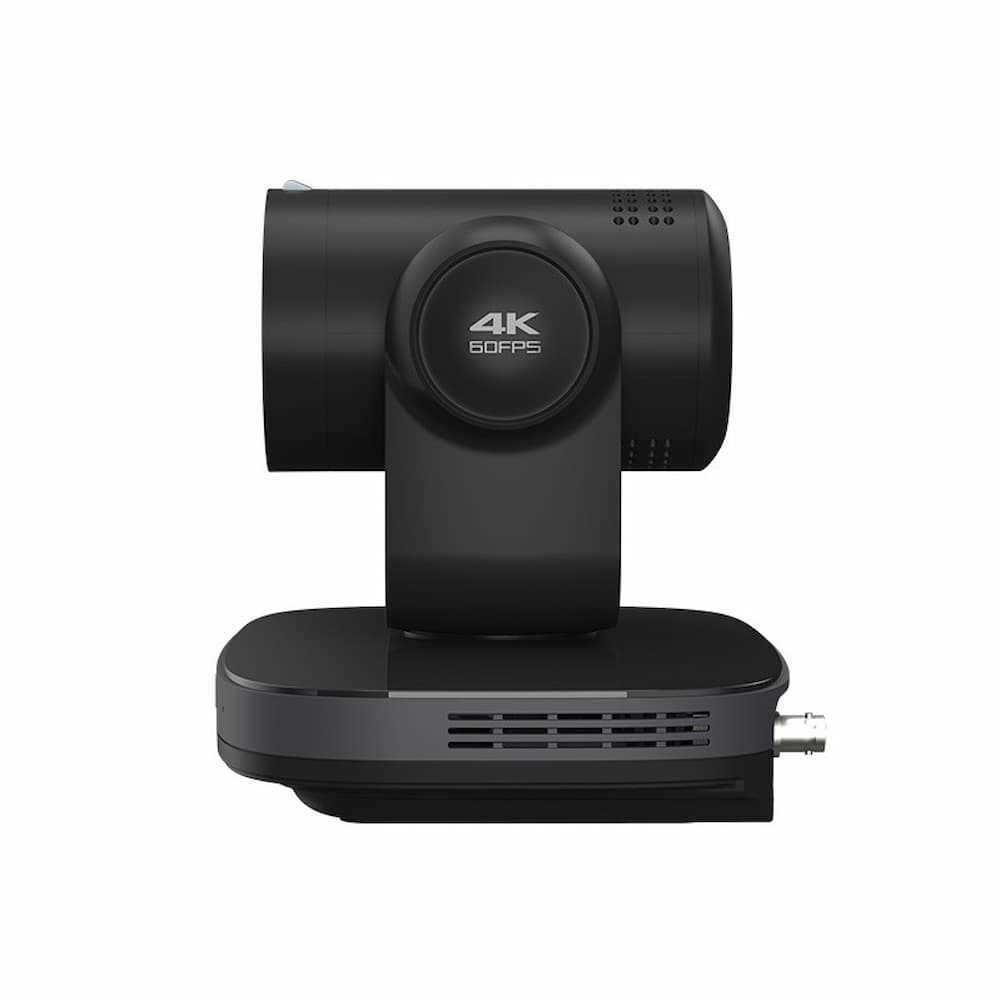

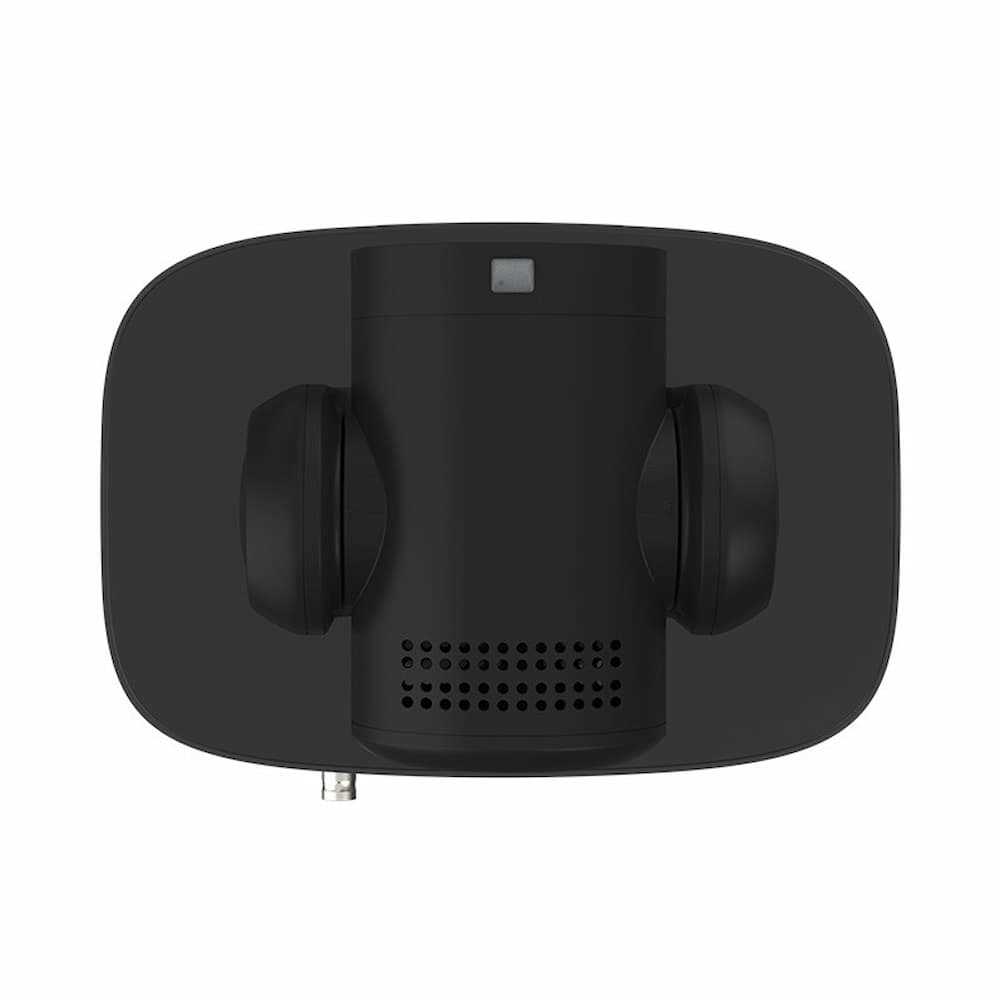

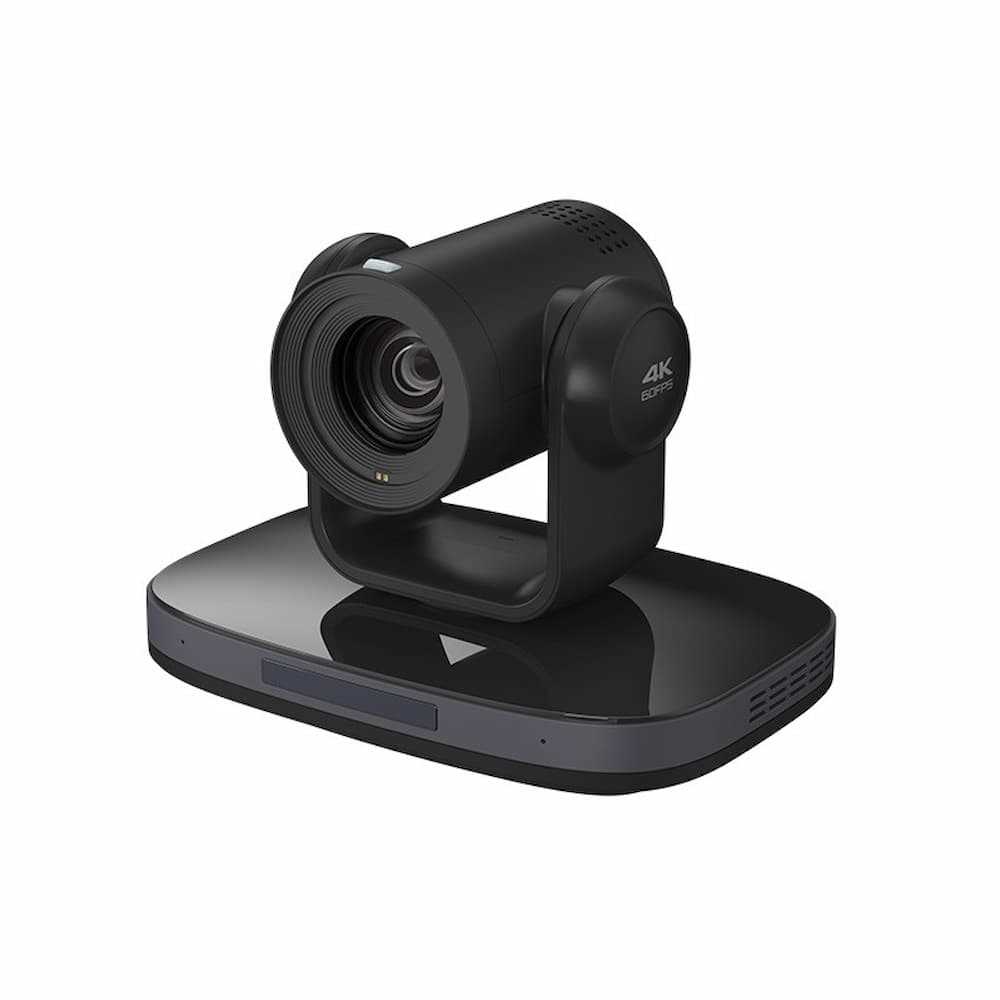

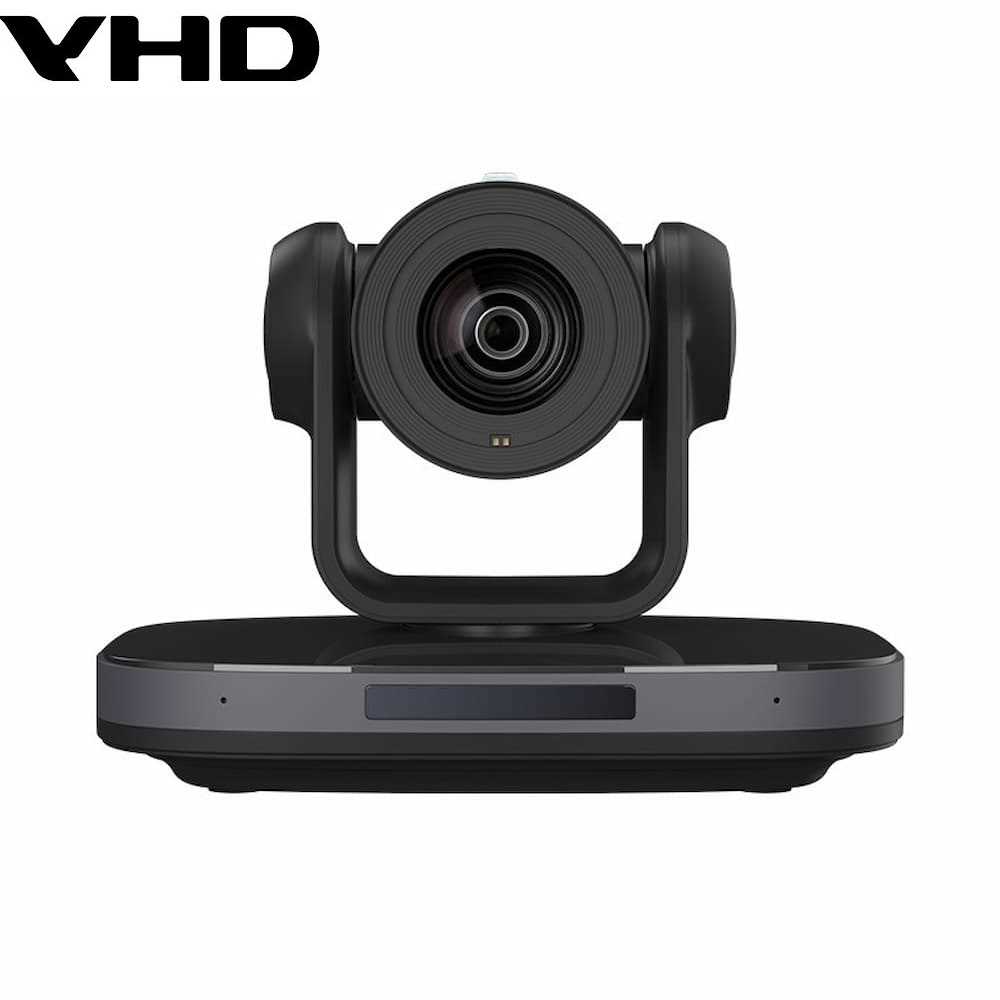

VX752A is a PTZ video camera with image resolution up to 4K/60, 20x optical and 16x digital zoom, 60⁰ horizontal and 35.7⁰ vertical field of view, 80⁰/s pan speed, 49⁰/s tilt speed. Horizontal rotation range ±162.5⁰, vertical rotation range –30⁰ (down), +90⁰ (up). Adjustable white balance. Horizontal flip support allows the camera to be installed on ceiling. Can store up to 255 presets. Output interface: USB 3.0, HDMI, 3G-SDI, Ethernet. UVC 1.1~1.5 support. Controls via RS-232, RS-485, Ethernet.

Brand:

VHD

Product Type:

Video Conference Camera

Specifications

Lens Type:

20xf6.25mm, 125mm, f1.58, f3.95

Video Stream Type:

First Stream, Second Stream

Horizontal Angle of View:

60 to 3.5°

Tilt Speed Range:

1.5 to 49°/s

Number of Preset:

255

Horizontal Rotation Range:

±162.5°

Minimal Illumination:

0.5Lux@(F1.8, AGC ON)

Vertical Angle of View:

35.7 to 2.0°

Audio Compression Type:

AAC

Sensor Type:

1/1.8in CMOS Effectivepixels: 8.42 Megapixels

Special Features:

4K60P, AI Tracking, Voice Tracking, Multiple Interfaces, NDI®, HX2 (Optional), HDMI2.0, 12x Optical Zoom + 80.8° Wide-angle Lens, Built-in Dual Microphones, USB3.0, Low Illumination, Remote Control, Gravity Sensor

Power Rating:

18W

Support Protocols:

HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s), Onvif, DHCP, Multicast

Applications:

3D Noise Reduction Algorithm Greatly Reduces Image Noise, Even Under the Condition of Ultra-Low Illumination, It Still Keep the Picture Clean and Clear, the SNR of Image is as High as 55db

Operating Temperature Range:

0 TO +40°C

Performance

Video System Type:

HDMI, 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 3G-SDI:1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25,

Main Stream Resolution:

3840x2160pixels, 1920x1080pixels, 1280x720pixels, 1024x576pixels

Bit Rate Type:

Fixed Rate, Variable Rate

Video Bit Rate:

First Stream 32 to 51200, Second Stream 32 to 20480Kbps

Video Signal-to-Noise Ratio:

≥55dB

Digital Noise Reduction:

3D Digital Noise Reduction

Sub Stream Resolution:

720x576pixels, 720x480pixels, 320x240pixels

Shutter Time:

1/30 to 1/10000sec

Frame Rate:

1 to 50fps (50Hz), 1 to 60fps (60Hz)

Video Compression Type:

H.264/MJPEG/H.265

Scanning Mode:

Progressive

Audio Bit Rate:

96Kbps, 128Kbps

Pan Speed Range:

1.8 to 80°/s

Preset Accuracy:

0.1°

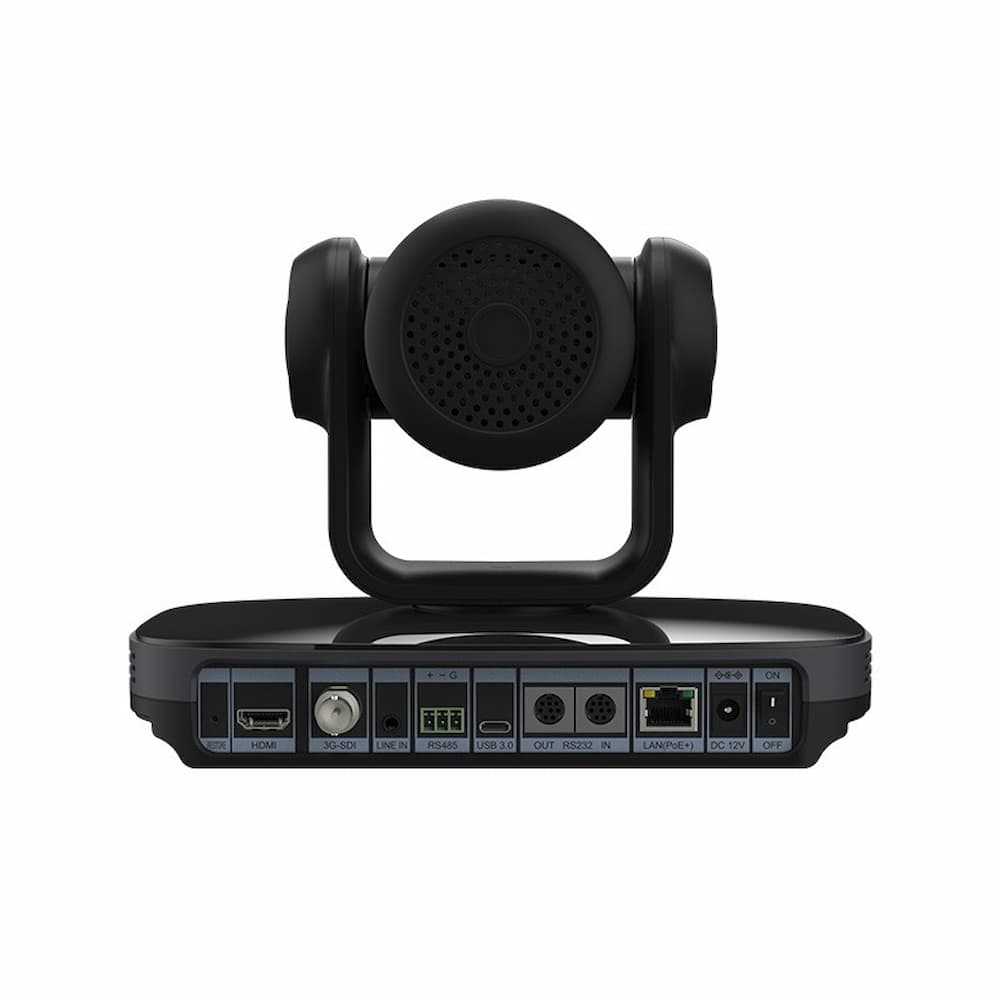

Inputs and Ports

Audio Interface Type:

1xLine In, 3.5mm Jack

HD Output Type:

1xHDMI Version 2.0, 1x3G-SDI BNC, 800mVp-p, 75Ω, SMPTE 424M Standard

USB Type:

1xUSB Type-C (Optional upgrade to USB3.0)

Communication Interface:

1xRS-485 3-Pin Phoenix Port, Max Distance 1200m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-232 IN 8-Pin Mini DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-232 OUT 8-Pin Mini DIN, Max Distance 30m, Protocol VISCA Only

Interface Type:

1xRJ5 10M/100M/1000M Adaptive Ethernet Port

Power

Input Voltage:

12V DC

Power Jack Type:

JEITA Type (DC IN 12V)

Dimensions

Length:

22.3cm

Width:

15.48cm

Depth:

16.5cm
