VX752A USB 2.0 4K Ultra HD Video Conference Camera AI tracking 1/2.5''
Please sign in so that we can notify you about a reply
Features
- 4K60P Using 1/1.8-inches high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions.
- AI Tracking With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, which can realize automatic tracking of scenes such as education, conferences and live broadcasts.
- Voice Tracking The built-in intelligent AI algorithm uses dual microphones to accurately locate the sound source. The camera can automatically find and track the speaker. When different speakers speak, the camera can switch between different speakers.
- Multiple Interfaces Support HDMI and 3G-SDI interface, effective transmission distance of 3G-SDI is up to 150 meters (1080P30). HDMI or 3G-SDI, USB, LAN can output three HD digital signals at the same time.
- NDI®
- HX2 (Optional) NDI®
- HX2 has the characteristics of low latency and plug and play, which is convenient for project implementation and deployment. It has good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode.
- HDMI2.0 Support HDMI 2.0 interface, which can directly output 4K/60P uncompressed digital video.
- 20x Optical Zoom + 60 ° Wide-angle Lens It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 20x optical zoom, and the maximum field angle is 60° .
- Built-in Dual Microphones Built-in dual microphones use the beam forming algorithm to accurately pick up the sound. The unique noise suppression algorithm makes the speaker's voice clearer and more realistic, and the pickup distance is up to 6 meters.
- USB3.0 The optional USB3.0 interface can transmit uncompressed original video images and is backward compatible with USB2.0.
- Low Illumination The application of 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keeps the picture clean and clear, and the SNR of image is as high as 55dB.
- Remote Control Support a variety of control methods, you can use RS232, RS485, network and USB to control the camera.
- Gravity Sensor It supports automatic image flipping function, which is convenient for engineering installation and use.
Brand:
VHD
Product Type:
PTZ Camera
Specifications
Lens Type:
20X, f6.25mm to 125mm, F1.58 to F3.95
Video Stream Type:
First Stream, Second Stream
Colour:
Black
Horizontal Angle of View:
60 to 3.5°
Tilt Speed Range:
1.5 to 49°/s
Number of Preset:
255
Horizontal Rotation Range:
±162.5°
Minimal Illumination:
0.5 Lux@(F1.8, AGC ON)
Vertical Angle of View:
35.7 to 2.0°
Audio Compression Type:
AAC
Sensor Type:
1/1.8in CMOS Effective Pixels 8.42Megapixels
Vertical Rotation Range:
-30 to +90°
Special Features:
Power Switch, Recovery Key, Remote Output, Indicator Lamp
Power Rating:
18W
Support Protocols:
HX2, SRT, TCP/IP, HTTP, RTSP, RTMP,Onvif, DHCP, Multicast
Operating Temperature Range:
-10 to +40°C
Performance
Video System Type:
HDMI:4K/60, 4K/59.94, 4K/50P, 4K/30P, 4K/29.97P, 4K/25P, 1080P/60, 1080P/59.94, 1080P/50, 1080P/30, 1080P/29.97, 1080I/60, 1080I/59.94, 1080I/50, 720P/60, 720P/59.94, 3G-SDI:1080P/60,1080P/59.94, 1080P/50, 1080P/30, 1080P/29.97, 1080P/25, 1080I/60, 1080I/
Main Stream Resolution:
3840x2160pixels, 1920x1080pixels, 1280x720pixels, 1024x576pixels
Bit Rate Type:
Variable Rate, Constant Rate
Video Bit Rate:
32 to 51200Kbps, 32 to 20480Kbps
Video Signal-to-Noise Ratio:
≥ 55dB
Digital Noise Reduction:
3D
Sub Stream Resolution:
720x576pixels, 720x480pixels, 320x240pixels
Shutter Time:
1/30 to 1/10000sec
Frame Rate:
1 to 50fps(50Hz), 1 to 60fps(60Hz)
Video Compression Type:
H.265/H.264/MJPEG
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps
Pan Speed Range:
1.8 to 80°/s
Preset Accuracy:
0.1°

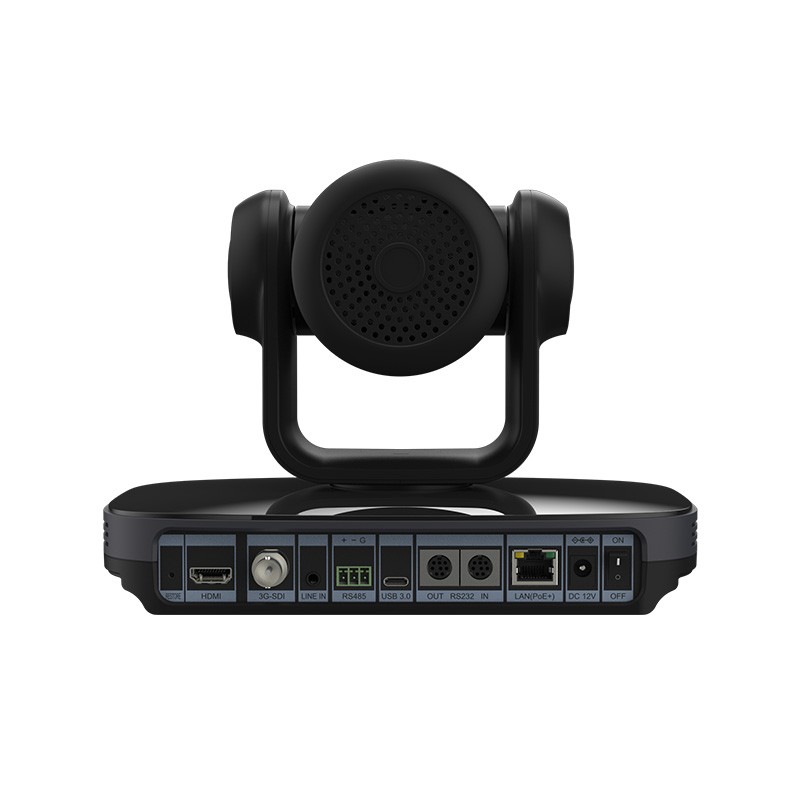

Inputs and Ports
Audio Interface Type:
1xLine In, 3.5mm Jack
HD Output Type:
1xHDMI Version 2.0, 1x 3G-SDI BNC, 800mVp-p, 75Ω, as per SMPTE 424M Standard
USB Type:
1xUSB 3.0 Type C
Communication Interface:
1xRS485 3 pin Phoenix Port, MaxDistance 1200m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS232 In 8 pin Mini DIN, Max Distance 30m, Protocol VISCA /Pelco-D/Pelco-P, 1xRS232 Out 8 pin Mini DIN, Max Distance 30m, Protocol VISCA
Interface Type:
1xRJ45 10M/100M/1000M Adaptive Ethernet
Power
Input Voltage:
12V DC
Power Jack Type:
JEITA Type (DC IN 12V)
Dimensions
Length:
22.3cm
Width:
15.4cm
Depth:
16.5cm
Shipping Weight:
1.8kg
