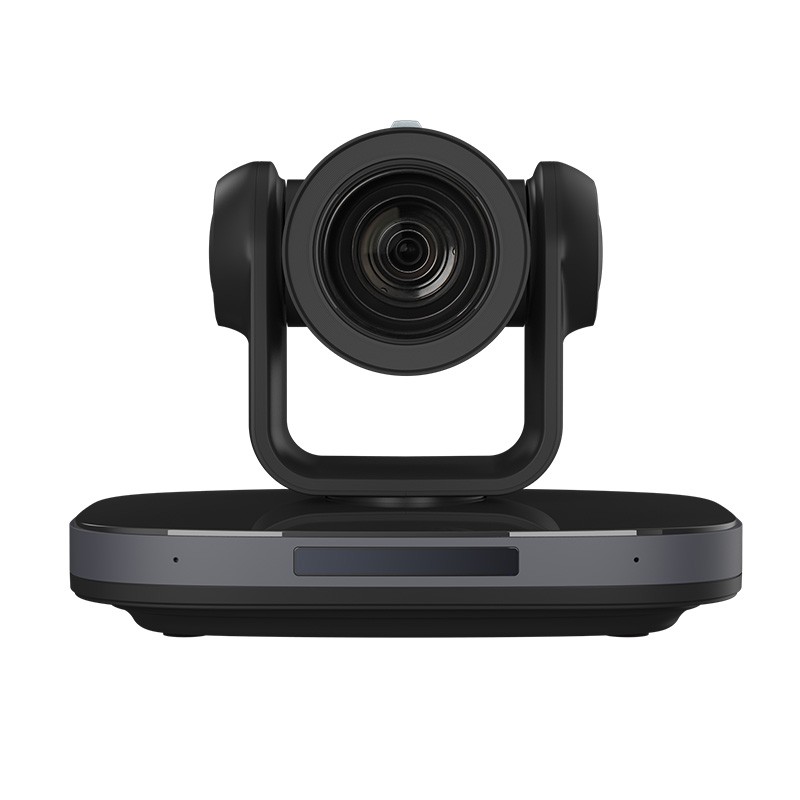

VX751BAG 4K Ultra HD PTZ Video Conference Camera, 12G-SDI

Write a review
VX751BAG
VHD
Log in to see price Add to wish list Add to Project

Using 1/2.5-inch high-quality UHD CMOS sensor with a maximum of 8.51 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions.

Features
  • Electro Mechanical PTZ
  • Multiple Interfaces
  • Built-in Dual Microphones
  • Uncompressed video output
Brand:
VHD
Product Type:
Video Conferencing Camera
Specifications
Lens Type:
12X, 4.4mm to 52.8mm, F1.8 to F2.6
Video Stream Type:
First Stream, Second Stream
Horizontal Angle of View:
80.8 to 7.5°
Tilt Speed Range:
1.7 to 69.9°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5Lux@(F1.8, AGC ON)
Vertical Angle of View:
49.9 to 4.3°
Audio Compression Type:
AAC, G711A
Sensor Type:
1/2.8in CMOS Effective Pixels 8.40Megapixels
Vertical Rotation Range:
-30 to +90°
Special Features:
Power Switch, Recovery Key, Remote Output
Power Rating:
18W
Support Protocols:
HX2, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast
Applications:
Broadcast Studios, Live Broadcast, Gymnasiums, Arenas, Churches and Lecture Hall
Operating Temperature Range:
0 TO +40°C
Performance
Video System Type:
4K/60P, 4K/50P, 4K/30P, 4K/25P, 4K/59.94P, 4K/29.97P, 1080P/60P, 1080P/50P, 1080I/60P, 1080I/50,P 1080P/3P0, 1080P/59.94P,1080I/59.94P, 1080P/29.97, 720P/60, 720P/59.94
Main Stream Resolution:
3840x2160pixels, 1920x1080pixels, 1280x720pixels, 1024x576pixels
Bit Rate Type:
Variable Rate, Constant Rate
Video Bit Rate:
32 to 51200Kbps
Video Signal-to-Noise Ratio:
≥ 55dB
Digital Noise Reduction:
3D
Sub Stream Resolution:
720x576pixels, 720x480pixels, 320x240pixels
Shutter Time:
1/30 to 1/10000sec
Frame Rate:
1 to 50fps (50Hz), 1 to 60fps (60Hz)
Video Compression Type:
H.265/H.264/MJPEG
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps, 256Kbps
Pan Speed Range:
1.7 to 100°/s
Preset Accuracy:
0.1°

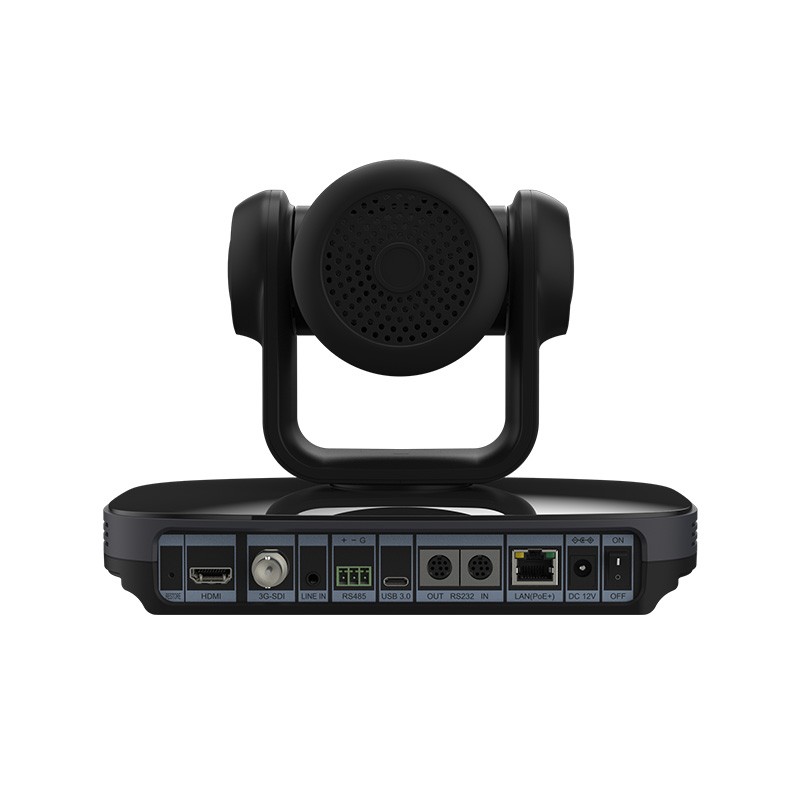

Inputs and Ports
Audio Interface Type:
1xLine In, 3.5mm Jack
HD Output Type:
1xHDMI 2.0, 1x 3G-SDI BNC
USB Type:
1xUSB 2.0 Type-C
Communication Interface:
1xRS485 2-pin Phoenix Port, Protocol VISCA/Pelco-D/Pelco-P, 1xRS232 In 8-pin, Protocol, VISCA/Pelco-D/Pelco-P, 1xRS232 Out 8-pin, ProtocolVISCA only
Interface Type:
1xRJ45 10M/100M/1000M Adaptive Ethernet
Power
Input Voltage:
12V DC
Current Rating:
1.5A
Power Jack Type:
JEITA Type (12V DC)
Dimensions
Length:
22.3cm
Width:
15.5cm
Depth:
16.5cm
