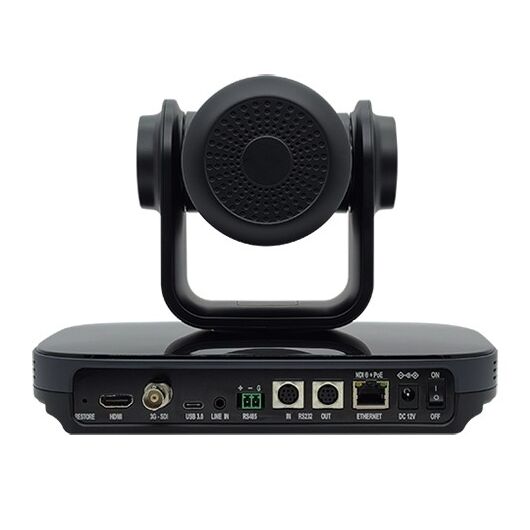

VX751BA (USB3.0) 4K@60fps PTZ camera, Ultra Wide angle, AI Tracking
Please sign in so that we can notify you about a reply
VX751BA is a ultra wide angle AI tracking PTZ video camera with image resolution up to 4K/60, 12x optical and 16x digital zoom
Ultra wide angle, AI tracking PTZ camera, 4K/60 with 12x optical and 16x digital zoom
Brand:
VHD
Product Type:
Video Conference Camera
Specifications
Lens Type:
12xf3.47mm, 41.65mm, f1.84, f3.72
Video Stream Type:
First Stream, Second Stream
Horizontal Angle of View:
80.8 to 7.5°
Tilt Speed Range:
1.5 to 49°/s
Number of Preset:
255
Horizontal Rotation Range:
±162.5°
Minimal Illumination:
0.5Lux@(F1.8, AGC ON)
Vertical Angle of View:
49.9 to 4.3°
Audio Compression Type:
AAC
Sensor Type:
1/2.5in CMOS Effectivepixels 8.51 Megapixels
Special Features:
4K60P, AI Tracking, Voice Tracking, Multiple Interfaces, NDI®, HX2 (Optional), HDMI2.0, 12x Optical Zoom + 80.8° Wide-angle Lens, Built-in Dual Microphones, USB3.0, Low Illumination, Remote Control, Gravity Sensor
Power Rating:
18W
Support Protocols:
HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s), Onvif, DHCP, Multicast
Applications:
3D Noise Reduction Algorithm Greatly Reduces Image Noise, Even Under the Condition of Ultra-Low Illumination, It Still Keep the Picture Clean and Clear, the SNR of Image is as High as 55db
Operating Temperature Range:
0 TO +40°C
Performance
Video System Type:
HDMI, 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 3G-SDI:1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25,
Main Stream Resolution:
3840x2160pixels, 1920x1080pixels, 1280x720pixels, 1024x576pixels
Bit Rate Type:
Fixed Rate, Variable Rate
Video Bit Rate:
First Stream 32 to 51200, Second Stream 32 to 20480Kbps
Video Signal-to-Noise Ratio:
≥55dB
Digital Noise Reduction:
3D Digital Noise Reduction
Sub Stream Resolution:
720x576pixels, 720x480pixels, 320x240pixels
Shutter Time:
1/30 to 1/10000sec
Frame Rate:
1 to 50fps (50Hz), 1 to 60fps (60Hz)
Video Compression Type:
H.264/MJPEG/H.265
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps
Pan Speed Range:
1.8 to 80°/s
Preset Accuracy:
0.1°
Inputs and Ports
Audio Interface Type:
1xLine In, 3.5mm Jack
HD Output Type:
1xHDMI Version 2.0, 1x3G-SDI BNC, 800mVp-p, 75Ω, SMPTE 424M Standard
USB Type:
1xUSB 2.0 Type-C (Optional upgrade to USB3.0)
Communication Interface:
1xRS-485 3-Pin Phoenix Port, Max Distance 1200m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-232 IN 8-Pin Mini DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-232 OUT 8-Pin Mini DIN, Max Distance 30m, Protocol VISCA Only
Interface Type:
1xRJ5 10M/100M/1000M Adaptive Ethernet Port
Power
Input Voltage:
12V DC
Power Jack Type:
JEITA Type (DC IN 12V)
Dimensions
Length:
22.3cm
Width:
15.48cm
Depth:
16.5cm
