VX71UVS 4K UHD Video Conference PTZ Camera
Please sign in so that we can notify you about a reply
4K UHD
High-quality 1/2.5-inch UHD CMOS sensor with 8.42 million
effective pixels for ultra-high resolution high-quality images up to 4K (3840x2160) and downward compatible with 1080P, 720P and other resolutions.
Brand:
VHD
Product Type:
Video Conference Camera
Specifications
Video Stream Type:
First Stream, Second Stream
Horizontal Angle of View:
71 to 8.2°
Tilt Speed Range:
2.7 to 31.5°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5Lux@(F1.8, AGC ON)
Vertical Angle of View:
42.7 to 4.5°
Audio Compression Type:
AAC
Sensor Type:
1/2.5in CMOS Effective Pixel: 8.42M
Special Features:
4K UHD, Full Function USB Interface, Low Illumination, HDMI 1.4b, PoE Support, Multiple & Complete Interfaces, 71° Wide-angle Lens + 12x Optical Zoom, Remote Control, H.264 Slice, Dual Stream Optional, Three Power Supply Mode
Power Rating:
12W
Support Protocols:
TCP/IP, HTTP:RTSP:RTMP:Onvif:DHCP, Multicast
Applications:
2D and 3D Noise Reduction Algorithm Greatly Reduces Image Noise, Even Under the Condition of Ultra-Low Illumination, it Still Keep the Picture Clean and Clear, the SNR of Image is as High as 55dB
Operating Temperature Range:
-10 to +40°C
Performance
Video System Type:
4K/30, 4K/29.97, 4K/25, 1080p/30, 1080p/29.29, 1080p/25
Main Stream Resolution:
3840x2160pixels, 1920x1080pixels, 1280x720pixels, 1024x576pixels
Bit Rate Type:
Fixed Rate, Variable Rate
Video Bit Rate:
32 to 6144Kbps
Video Signal-to-Noise Ratio:
≥55dB
Digital Noise Reduction:
2D and 3D Digital Noise Reduction
Sub Stream Resolution:
1920x1080pixels, 1280x720pixels, 1024x576pixels
Shutter Time:
1/30 to 1/10000sec
Frame Rate:
1 to 25fps (50Hz), 1 to 30fps (60Hz)
Video Compression Type:
H.265/H.264/MJPEG
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps, 256Kbps
Pan Speed Range:
2.7 to 35.7°/s
Preset Accuracy:
0.1°

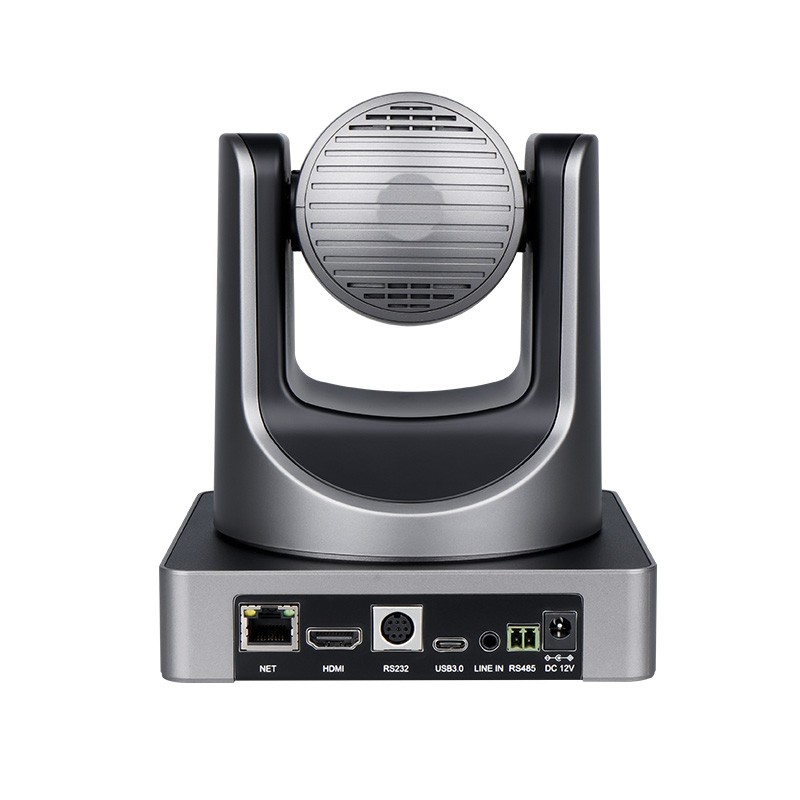

Inputs and Ports
Audio Interface Type:
1xLine In, 3.5mm Jack
HD Output Type:
1xHDMI 1.4b
USB Type:
1xUSB 3.0 Type-C
Communication Interface:
1xRS-232 in 8-Pin Min DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-485 In (Optional) 2-Pin Phoenix Port, Max Distance 1200m, Protocol VISCA/Pelco-D/Pelco-P
Interface Type:
1xRJ5 10M/100M Adaptive Ethernet Port
Power
Input Voltage:
12V DC
Power Jack Type:
JEITA Type (DC IN 12V)
Current Rating:
1.0A
Dimensions
Length:
16.6cm
Width:
14.4cm
