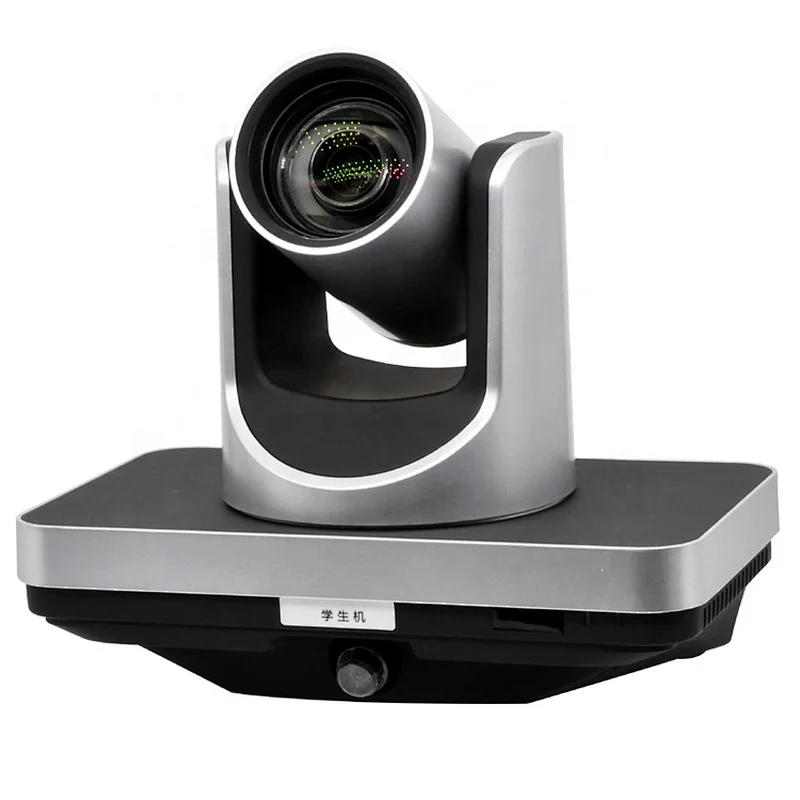

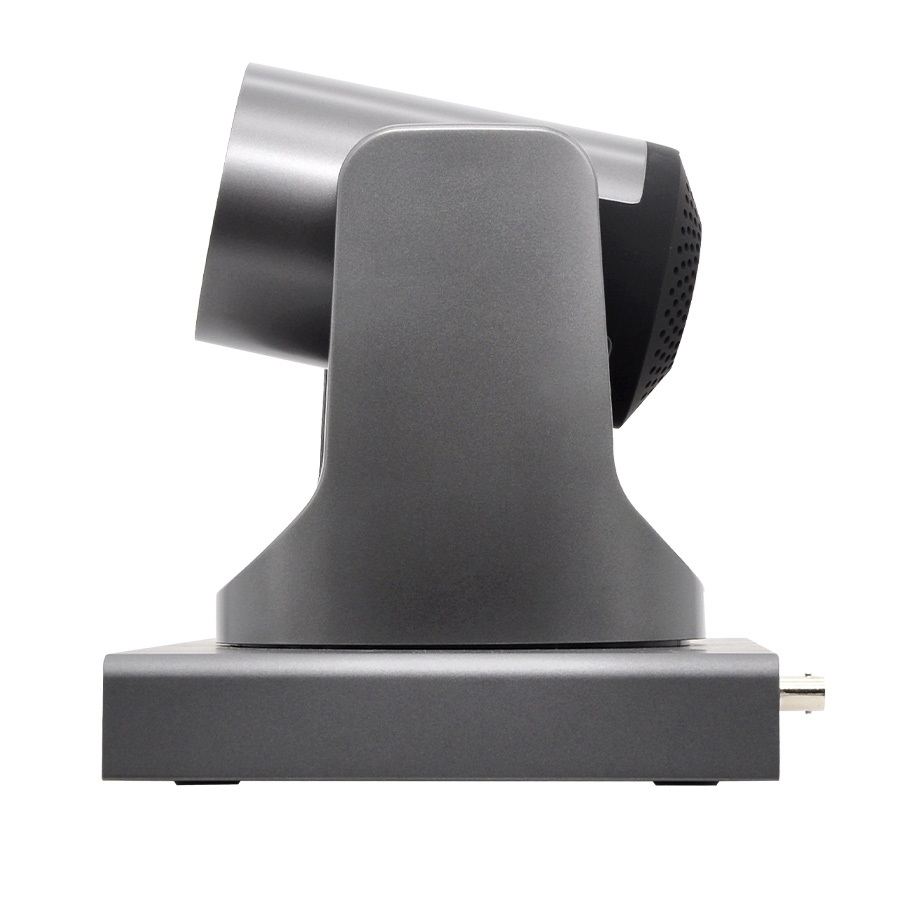

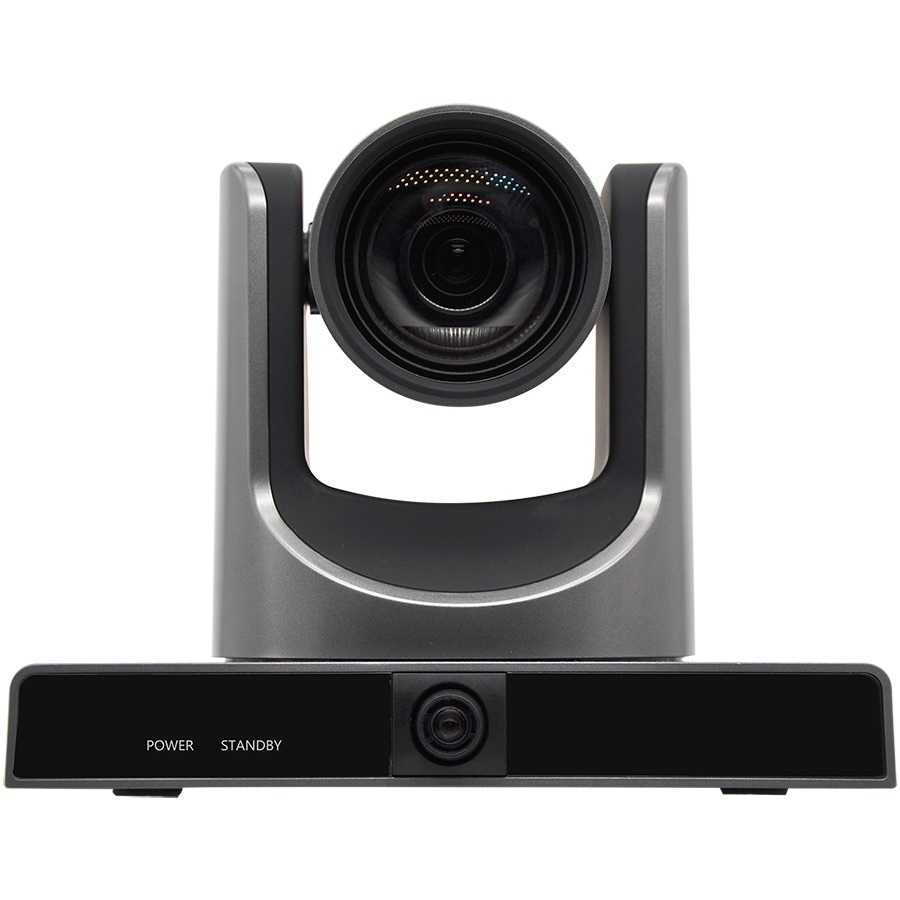

V800 Auto-tracking camera Close-up Camera 12x optical , 16x digital

Write a review
V800
VHD
Log in to see price Add to wish list Add to Project

Auto-tracking PTZ Camera.

Features

  • All-in-One Design All-in-One design, can output 5 channel HD video (3 channel for close-up camera, 2 channel for panorama camera) at the same time. both teacher tracking and student traking are use the same devide
  • Changeable Lens Panorama camera can replace the lens, compatible M12 mount lens, easy to use for different size classroom
  • Adjustable Viewing Angle Panorama camera can adjust viewing angle in vertical(-15° ~ 0°), conveninet installation and degugging
  • High Efficient Traking Built-in image recognition and traking algorithms, can be tracking realized without any auxiliary camera or tracking host
  • Same Image Style Both panorama camera and close-up camera use the same ISP, make sure the image output have the same brightness, color, style, etc.
  • Easy Configuration Easy to make a configuration for tracking, direct connect by Ethernet, just need make some base parameters for configuration, large engineering debugging time and cost will be save
  • 72.5° Wide-angle Lens + 16x Digital Zoom Close-up camera use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom (optional)
  • H.265 Support H.265 encoding support, enabling full HD 1080p video stream by ultra-low bandwidth
  • 1080P Full HD Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image
  • Ultra-high Frame Rate The output frame rate up to 60fps in 1080P
  • AAC Audio Encoding Close-up camera support AAC audio encoding, better sound quality and smaller bandwidth
  • Local Storage Close-up camera support local storage module, directly recording to local USB flash disk without NVR
Brand:
VHD
Product Type:
Auto-Tracking Lecture Camera
Specifications
Lens Type:
12xf3.5mm, 42.3mm, f1.8, f2.8
Video Stream Type:
First Stream, Second Stream
Horizontal Angle of View:
72.5 to 6.9°
Tilt Speed Range:
1.7 to 69.9°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5Lux@(F1.8, AGC ON)
Vertical Angle of View:
44.8 to 3.9°
Audio Compression Type:
AAC
Sensor Type:
1/2.8in CMOS Effective Pixel: 2.07M
Vertical Rotation Range:
-30 to +90°
Special Features:
All-in-One Design, Changeable Lens, Adjustable Viewing Angle, High Efficient Tracking, Same Image Style, Easy Configuration, 72.5° Wide-angle Lens + 16x Digital Zoom, H.265 Support, 1080P Full HD, Ultra-high Frame Rate, AAC Audio Encoding, Local Storage
Power Rating:
18W
Support Protocols:
TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
Operating Temperature Range:
-10 to +40°C
Performance
Video System Type:
1080p60, 1080p50, 1080i/60, 1080i50, 1080p30
Main Stream Resolution:
1920x1080pixels, 1280x720pixels, 1024x576pixels
Bit Rate Type:
Fixed Rate, Variable Rate
Video Bit Rate:
128 to 8192Kbps
Video Signal-to-Noise Ratio:
≥55dB
Digital Noise Reduction:
2D and 3D Digital Noise Reduction
Sub Stream Resolution:
720x576pixels, 720x480pixels, 320x240pixels
Shutter Time:
1/30 to 1/10000sec
Frame Rate:
1 to 50fps (50Hz), 1 to 60fps (60Hz)
Video Compression Type:
H.265/H.264/MJEPG
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps, 256Kbps
Pan Speed Range:
1.7 to 100°/s
Preset Accuracy:
0.1°
Inputs and Ports
Audio Interface Type:
1-Ch 3.5mm Audio Interface, Line In
HD Output Type:
1xHDMI Version 1.3
USB Type:
1xUSB 2.0 Type a Female Jack
Communication Interface:
1xRS-232 in 8-Pin Min DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P, 2xRS-232 Out 8-Pin Min DIN Max Distance 30m, 1xRS-232 2-Pin Phoenix Port, Max Distance 1200m, Protocol VISCA/Pelco-D/Pelco-P
Interface Type:
2xRJ5 10M/100M Ethernet Interface
Power
Input Voltage:
12V DC
Power Jack Type:
JEITA Type (DC IN 12V)
Current Rating:
1.5A
Dimensions
Length:
24cm
Width:
14.4cm
Depth:
2cm
