V71UVS FHD Video Conference camera

Write a review
V71UVS
VHD
Log in to see price Add to wish list Add to Project

1080P Full-HD

The 1/2.8-inch quality HD CMOS sensor with effective 2.07  megapixels offers HD quality images up to 1920x1080 pixels.

High Frame Rate
The output frame rate at 1080P up to 30fps (60fps optional).

Full-Featured USB Port
The full-featured USB port is compatible with USB3.0 and  USB2.0, and supports audio, coding output, and UVC 1.1~1.5  protocols.

Low Light
The application of 2D and 3D noise reduction algorithm greatly  reduces image noise. Even under the condition of ultra-low  illumination, it still keep the picture clean and clear, and the  SNR of image is as high as 55dB.

PoE Support
The wired network supports PoE power supply, the control, power supply, video and audio can be completed with a network cable.

72.5° Wide-Angle Lens+16x Digital Zoom
72.5° ultra-wide-angle lens with 12x optical zoom and 16x  digital zoom.

Remote Control
Cameras can be controlled through RS232.

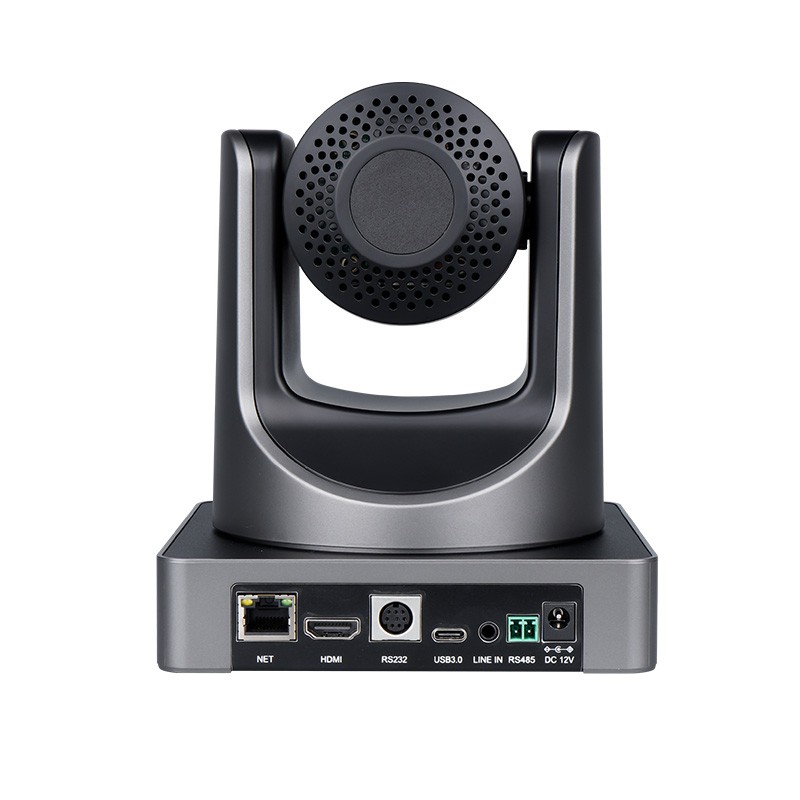

Multiple&Complete Interfaces
Support 1080P video output via HDMI (optional), USB3.0 and network interface simultaneously.

H.264 Slice / H.264 SVC Supported
The H.264 standard supports Slice and SVC coding and is  suitable for USB video conferencing.

Dual stream(optional)
Simultaneously support two stream output(YUY2, MJEPG, H.264 each of both) to reduce the host codec pressure.

Three Power Supply Modes
Simultaneously support USB 5V,12V power adaptor and PoE power supply.

Brand:
VHD
Product Type:
Video Conference Camera
Specifications
Lens Type:
12xf3.5mm, 42.3mm, f1.8, f2.8
Video Stream Type:
First Stream, Second Stream
Horizontal Angle of View:
72.5 to 6.9°
Tilt Speed Range:
2.7 to 31.5°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5Lux@(F1.8, AGC ON)
Vertical Angle of View:
44.8 to 3.9°
Audio Compression Type:
AAC
Sensor Type:
1/2.8in CMOS Effectivepixels: 2.07 Megapixels
Special Features:
1080P Full-HD, High Frame Rate, Full Function USB Interface, Low Illumination, PoE Support, 72.5° Wide-angle Lens+16x Digital Zoom, Remote Control, Multiple & Complete Interfaces, H.264 Slice/H.264 SVC, Dual Stream, Three Power Supply Mode
Power Rating:
12W
Support Protocols:
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast
Applications:
2D and 3D Noise Reduction Algorithm Greatly Reduces Image Noise, Even Under the Condition of Ultra-Low Illumination, it Still Keep the Picture Clean and Clear, the SNR of Image is as High as 55dB
Operating Temperature Range:
-10 to +40°C
Performance
Video System Type:
1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50
Main Stream Resolution:
1920x1080pixels, 1280x720pixels, 1024x576pixels
Bit Rate Type:
Fixed Rate, Variable Rate
Video Bit Rate:
32 to 20480Kbps
Video Signal-to-Noise Ratio:
≥55dB
Digital Noise Reduction:
2D and 3D Digital Noise Reduction
Sub Stream Resolution:
1280x720pixels, 1024x576pixels, 720x576p(50Hz Support), 720x480p(60Hz Support)
Shutter Time:
1/30 to 1/10000sec
Frame Rate:
1 to 50fps (50Hz), 1 to 60fps (60Hz)
Video Compression Type:
H.264/MJPEG
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps, 256Kbps
Pan Speed Range:
2.7 to 35.7°/s
Preset Accuracy:
0.1°
Inputs and Ports
Audio Interface Type:
1xLine In, 3.5mm Jack
HD Output Type:
1xHDMI 1.4b 1
USB Type:
1xUSB 3.0-Type C
Communication Interface:
1xRS-232 in 8-Pin Min DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS-485 2-Pin Phoenix Port, Max Distance 1200m, Protocol VISCA/Pelco-D/Pelco-P
Interface Type:
1xRJ5 10M/100M Adaptive Ethernet Port
Power
Input Voltage:
12V DC
Power Jack Type:
JEITA Type (DC IN 12V)/USB Type-C (USB IN 5V/PoE)
Current Rating:
1.0A
Dimensions
Length:
14.4cm
Width:
14.4cm
Depth:
16.6cm
