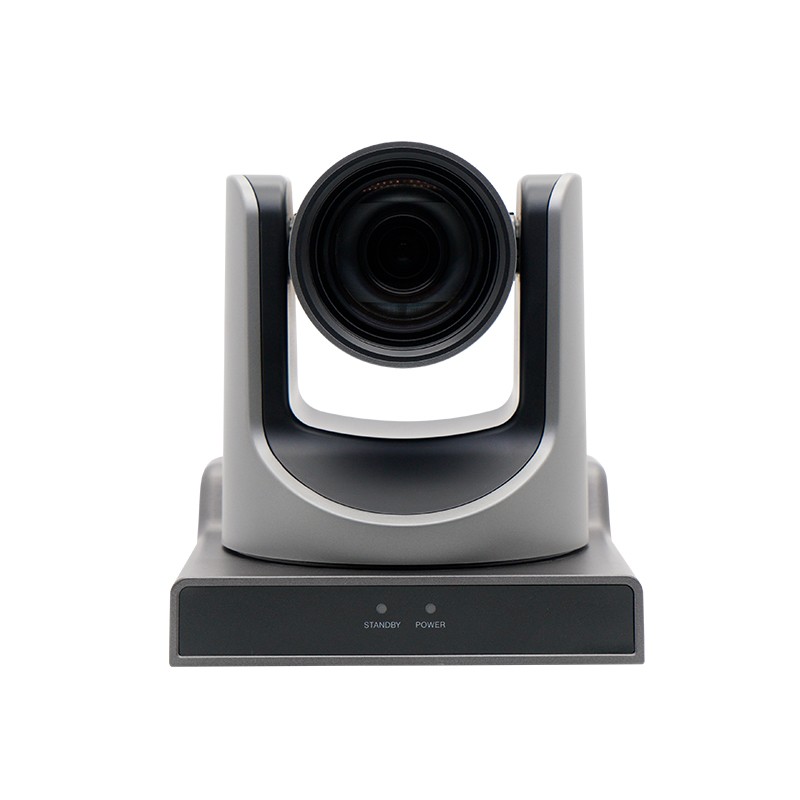

V61XL FHD Video Conference Camera 1/2.8''

Features

  • 1080P Full HD Equipped with 1/2.8", 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
  • 72.5° Wide-angle Lens + 12x Optical Zoom Using high-quality ultra-high-resolution Full HD lens, the maximum horizontal field of view is up to 72.5° , while supporting classic 12x optical zoom.
  • Electromechanical head Built-in self-developed electromechanical head, the horizontal rotation range can reach ±170 ° , the rotation speed range is 1.7°~ 100° /s; the vertical rotation range can reach -30°~ 90° , and the rotation speed range is 1.7°~ 69.9° /s.
  • Interfaces Multiple Interfaces, low-latency output of all It supports 3G-SDI, HDMI, USB and network audio and video to output 1080P60 at the same time, and all video output interfaces meet the low-latency index.
  • Uncompressed Professionally video output With HDMI 1.3 and 3G-SDI interface, it can directly output uncompressed digital video.
  • Low Illumination The application of 2D and 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keeps the picture clean and clear, and the SNR of image is as high as 55dB.
  • Remote Control Through the RS232 and RS485 serial ports and USB, the camera can be controlled remotely.
  • Leading Auto Focus Technology Using advanced focusing algorithm, the lens can focus quickly, accurately and stably.
  • New Generation of ISP Image Processing Algorithm The new generation of ISP image processing algorithm provides more complete white balance and automatic exposure functions, It is which significantly improves the image output performance of the camera, and the imaging effect is also better. Widely used in education recording and broadcasting, distance education, video conferencing, live broadcasting, broadcasting and other industries.
  • Upgraded AI Technology Using upgraded AI technology and pedestrian recognition technology, it can accurately determine the location of each person based on information such as pedestrian clothing, body shape, hairstyle, and face recognition, and realize automatic identification and tracking of target human figures, automatic frame selection, and intelligent privacy for meetings. Blur function.
  • Exclusive Audio Processing Algorithm exclusive audio processing algorithm can eliminate reverberation, effectively reduce environmental noise, and support EQ adjustment to optimize sound effects; the device supports dual mic pickup, and can also be connected to external microphones, wireless bees, etc., to meet the pickup needs of most scenarios.
  • 1080P60 NDI®
  • HB It supports 1080P60 NDI®
  • HB technology, which brings us ultralow latency high-quality audio and video signal transmission, which can achieve unparalleled ultra-high-resolution image quality and lossless effects that are closer to vision.
Brand:
VHD
Product Type:
PTZ Camera
Specifications
Lens Type:
12X, f3.5mm to 42.3mm, F1.8 to F2.8
Video Stream Type:
First Stream, Second Stream
Colour:
Black
Horizontal Angle of View:
72.5 to 6.9°
Tilt Speed Range:
1.7 to 69.9°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5 Lux@(F1.8, AGC ON)
Vertical Angle of View:
44.8 to 3.9°
Audio Compression Type:
AAC, G711A
Sensor Type:
1/2.8in CMOS Effective Pixel 2.07Megapixels
Vertical Rotation Range:
-30 to +90°
Special Features:
H.264 Support, 1080 Full HD, Double Interface, AAC Audio Encoding, Low Light, POE
Power Rating:
12W
Support Protocols:
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast
Operating Temperature Range:
-10 to +40°C
Performance
Video System Type:
HDM, 3G-SDI:, 1080P/60, 1080P/59.94, 1080P/50, 1080I/60, 1080I/59.94, 1080I/50, 1080P/30, 1080P/29.97, 1080P/25, 720P/60, 720P/59.94, 720P/50
Main Stream Resolution:
1920x1080pixels, 1280x720pixels, 1024x576pixels
Bit Rate Type:
Variable Rate, Constant Rate
Video Bit Rate:
32 to 20480Kbps
Video Signal-to-Noise Ratio:
≥ 55dB
Digital Noise Reduction:
2D, 3D
Sub Stream Resolution:
1024x576pixels, 720x480pixels, 320x240pixels
Shutter Time:
1/30 to 1/10000sec
Frame Rate:
1 to 50fps(50Hz), 1 to 60fps(60Hz)
Video Compression Type:
H.264/MJPEG
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps, 256Kbps
Pan Speed Range:
1.7 to 100°/s
Preset Accuracy:
0.1°

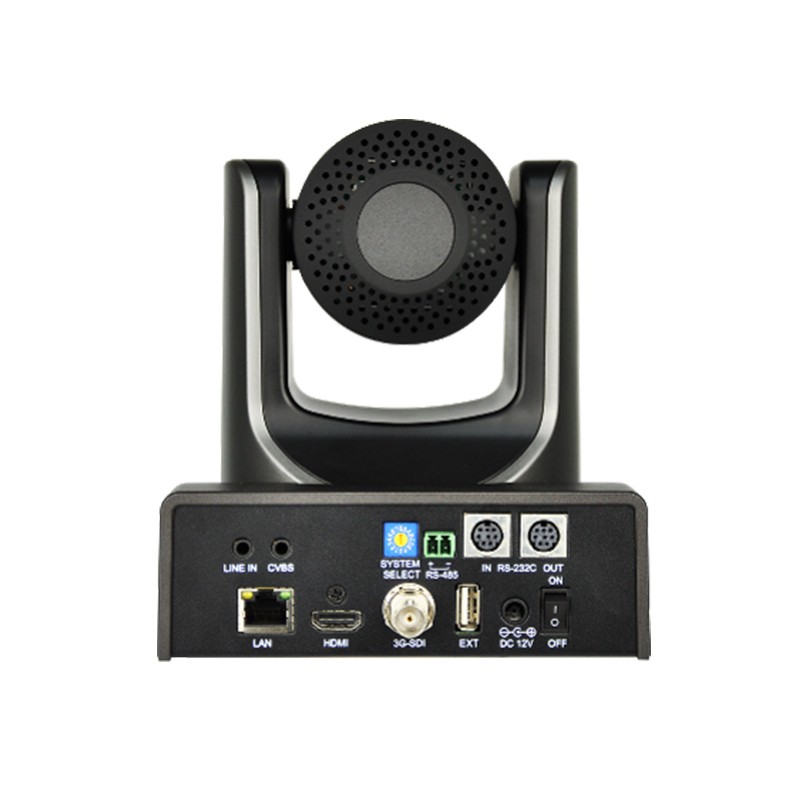

Inputs and Ports
Audio Interface Type:
Built-in Dual Microphones, 1xLine In, 3.5mm Jack 1xLine Out, 3.5mm Jack
HD Output Type:
1xHDMI Version 1.3, 1x3G-SDI BNC, 800mVp-p, 75Ω, SMPTE 424M Standard
USB Type:
1xUSB 3.0 Type A
Communication Interface:
1xRS485 2 pin Phoenix Port, Max Distance 1200m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS232 In 8 pin Mini DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P, 1xRS232 Out 8 pin Mini DIN, Max Distance 30m, Protocol VISCA only
Interface Type:
1xRJ45 10M/100M Adaptive Ethernet, PoE Support
Power
Input Voltage:
12V DC
Current Rating:
1A
Power Jack Type:
JEITA Type (DC IN 12V)
Current Rating:
1A
Dimensions
Length:
16.9cm
Width:
14.2cm
Depth:
16.4cm
Shipping Weight:
1.35kg
