FHD video conference camera 58.5 degree Wide-angle,10x optical,16X digital zoom HD: 1080p@30/25, 1080i@60/50, 720p@60/ USB2.0, RS232
Please sign in so that we can notify you about a reply
Brand:
VHD
Product Type:
PTZ Camera
Specifications
Lens Type:
10X, f5.13mm to 46.3mm, F1.8 to F2.8
Colour:
Black
Horizontal Angle of View:
53.6 to 6.41°
Tilt Speed Range:
2.7 to 31.5°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5 Lux@(F1.8, AGC ON)
Vertical Angle of View:
31.7 to 3.61°
Sensor Type:
1/2.7in CMOS Effective Pixels 2.07Megapixels
Special Features:
H.264 Support, Full HD Sensor, Optical Zoom Lens, Image Freeze, YUV 4:2:2/H.264/MJPEG
Power Rating:
12W
Support Protocols:
UVC 1.1 to1.5
Operating Temperature Range:
-10 to +40°C
Performance
Video System Type:
1080P, 720P, 540P, 480P, 360P, 240P
Video Signal-to-Noise Ratio:
≥ 55dB
Digital Noise Reduction:
2D, 3D
Shutter Time:
1/30 to 1/10000sec
Video Compression Type:
H.264/MJEPG
Scanning Mode:
Progressive
Pan Speed Range:
2.7 to 35.7°/s
Preset Accuracy:
0.1°

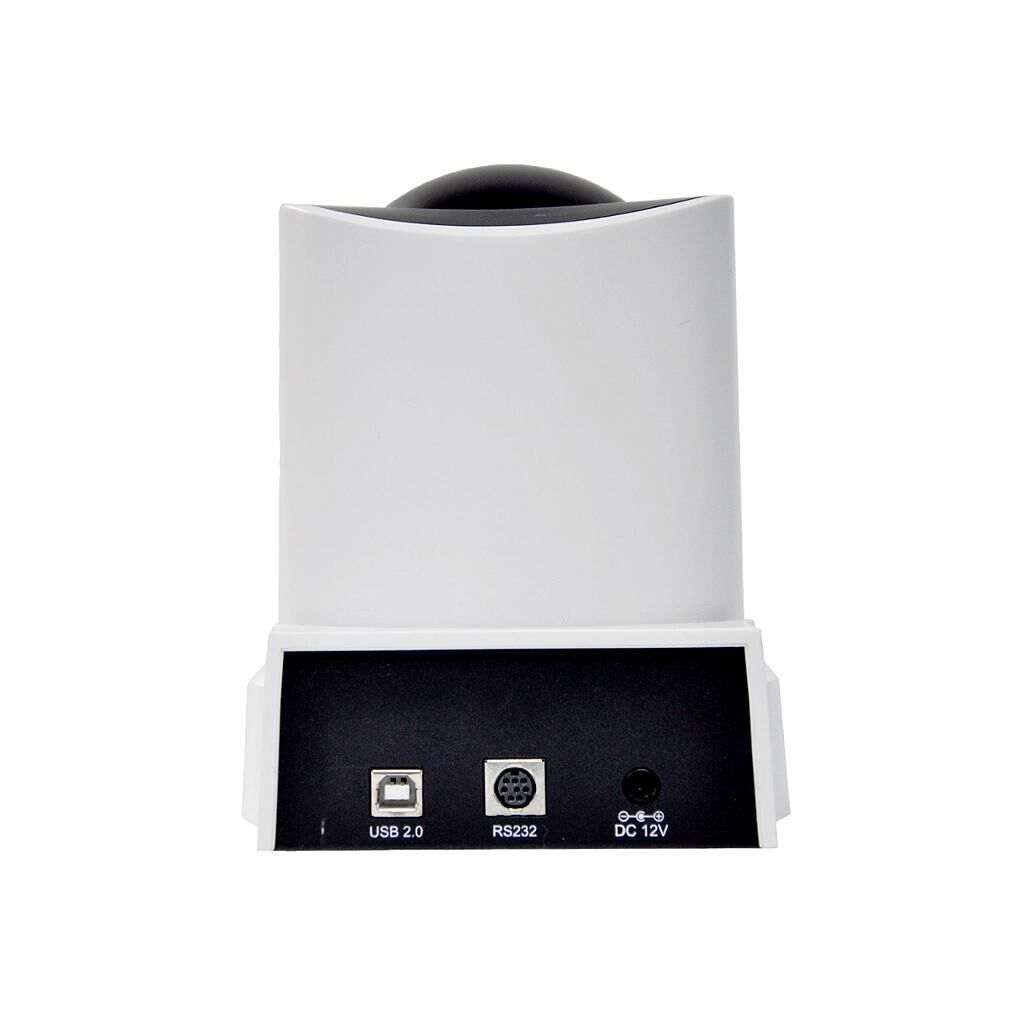

Inputs and Ports
Audio Interface Type:
1-Ch, 3.5mm Audio Interface, Line In
USB Type:
1xUSB 2.0 Type B Female Jack
Communication Interface:
1xRS232 In 8 pin Min DIN, Max Distance 30m, Protocol VISCA/Pelco-D/Pelco-P
Power
Input Voltage:
5V DC, 12V DC
Current Rating:
1A
Power Jack Type:
JEITA Type (DC IN 12V)/USB B Type (DC IN 5V)
Current Rating:
1A
Dimensions
Shipping Weight:
1.16kg
