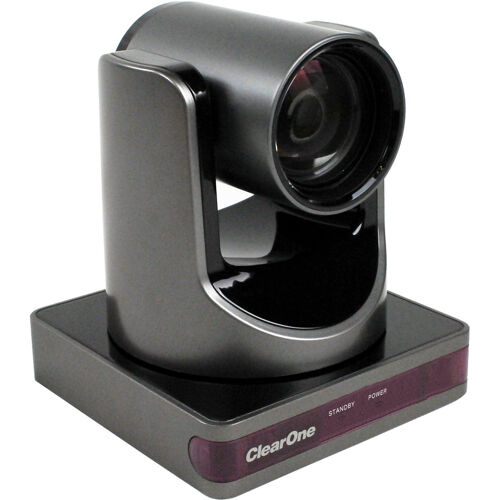

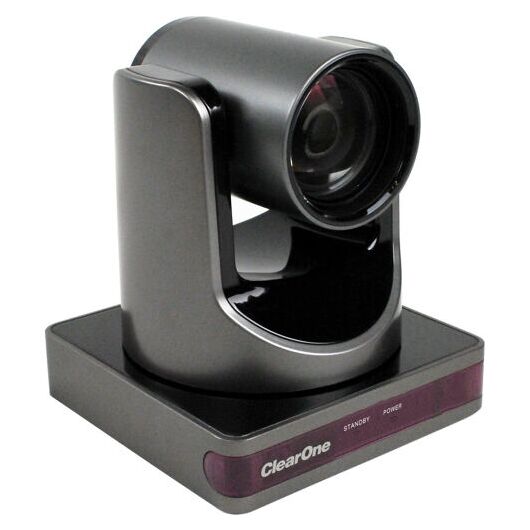

UNITE 150 PTZ Camera with 12x Optical Zoom, 1080P30 Full HD, USB

UNITE 150, the professional-grade USB PTZ camera for PC-based video conferencing, web conferencing, UC applications and more in meeting rooms.

Features

  • Output up to 1080p30 USB Video
  • 12x Zoom Lens, f1.8 to 2.8 Aperture
  • USB, RS-232, RS-485 Control
  • VISCA, PELCO-D, PELCO-P Support
  • High SNR with 2D and 3D Noise Reduction
  • White Balance and Backlight Compensation
  • Compatible with Multiple Platforms
  • Lens Cap, Remote, Cables Included
Brand:
ClearOne
Product Type:
Camera
Specifications
Lens Type:
12xf3.5mm, 42.3mm, f1.8, f2.8
Colour:
Black
Horizontal Angle of View:
72.5 to 6.9°
Tilt Speed Range:
1.7 to 69.9°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.05Lux@(F1.8, AGC ON)
Vertical Angle of View:
44.8 to 3.9°
Sensor Type:
1/2.7in CMOS
Vertical Rotation Range:
-30 to +90°
Special Features:
Wall Mount, Ceiling Mount, Upside-Down Mounting
Power Rating:
12W
Support Protocols:
VISCA/PELCO-D/PELCO-P
Applications:
Huddle Space, Executive Office, Meeting Room, Conference Room, Boardroom, Training Center, Classroom
Operating Temperature Range:
-10 to 40°C
Performance
Video System Type:
1080pixels@30Hz, 1080pixels@25Hz, 720pixels@30Hz, 720pixels@25Hz
Video Signal-to-Noise Ratio:
≥55dB
Digital Noise Reduction:
2D and 3D Digital Noise Reduction
Shutter Time:
1/30 to 1/10000sec
Scanning Mode:
Progressive
Pan Speed Range:
1.7 to 100°/s

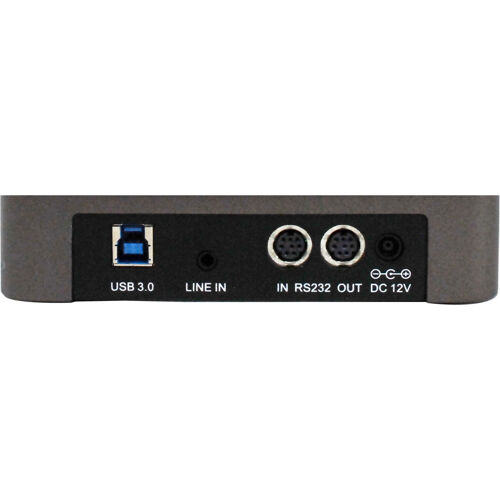

Inputs and Ports
Audio Interface Type:
1-Ch 3.5mm Audio Interface, Line In
USB Type:
1xUSB 3.0: Type B Female Jack, 1xUSB 2.0: Type A Female Jack
Communication Interface:
UVC 1
Power
Input Voltage:
12V DC
Power Jack Type:
JEITA Type (DCin 12 V)
Dimensions
Length:
24cm
Width:
14.4cm
Depth:
16cm

Unite 150 1 (UNITE_PTZ_150_DS.pdf, 1,030 Kb) [Download]
