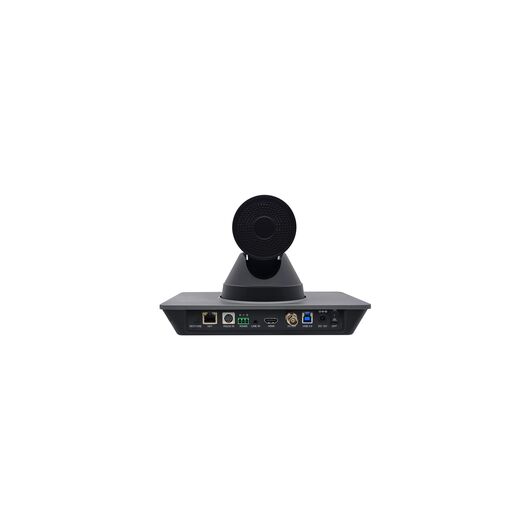

Catalog :: Professional Video :: Video Conferencing Solutions :: Video Conferencing Accessories :: Video Conferencing Cameras :: KAC-CAM-70 1 YEAR-SUPPORT PTZ Camera, CMOS, Wide-Angle Lens, 4K UHD, 1yr Support

Ultra-HD camera for premium-clarity video in large spaces. Put every meeting in sharp focus with crystal-clear, ultra-high-definition video capture and advanced, yet easy, control.4K resolution, high-power optical and digital zooms, smooth PTZ operation and multiple outputs, the K-Cam4K takes video conferencing to a new level.

Features

4K30fps clear video
8.51 megapixel CMOS image sensor
Ultra–low CMOS image sensors plus 2D and 3D DNR technology
H.264

Brand:

Kramer

Part number:

SV-EW-000041

Product Type:

PTZ Camera

Specifications

Lens Type:

Wide-Angle Lens

Video Stream Type:

First Stream, Second Stream

Horizontal Angle of View:

71 to 8.2°

Tilt Speed Range:

15W

Number of Preset:

255

Horizontal Rotation Range:

±170°

Minimal Illumination:

0.5Lux

Vertical Angle of View:

42.7 to 4.5°

Audio Compression Type:

G711A, AAC

Sensor Type:

CMOS

Vertical Rotation Range:

±30°

Special Features:

Sharp Focus With Crystal-Clear, Ultra-High-Definition Video Capture, 4K Resolution, High-Power Optical and Digital Zooms, Smooth PTZ Operation and Multiple Output, 1 yr Support

Power Rating:

12W

Support Protocols:

TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast

Applications:

Enterprise Meeting Rooms, Educational Spaces

Operating Temperature Range:

-10 to 40°C

Performance

Video System Type:

HDMI

Main Stream Resolution:

3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360

Bit Rate Type:

Variable Rate, Fixed Rate

Video Bit Rate:

60Mbps

Video Signal-to-Noise Ratio:

≥55dB

Digital Noise Reduction:

2D, 3D DNR Technology

Sub Stream Resolution:

720x480, 720x408, 640x480, 640x360, 480x320, 320x240

Shutter Time:

1/30 to 1/10000sec

Frame Rate:

50Hz:4K Max to 30fps, 1080P max to 50fps/60Hz:4K Max to 30fps, 1080P max to 60fps

Video Compression Type:

H.264

Scanning Mode:

Progressive

Audio Bit Rate:

96K, 128K

Pan Speed Range:

1.6 to 76°/s

Preset Accuracy:

0.1°

Inputs and Ports

Audio Interface Type:

3.5mm (Mini Jack)

HD Output Type:

HDMI

USB Type:

Type B

Communication Interface:

RS-232

Interface Type:

USB 3.0, RS-232, RJ-45, HDMI 1.4

Power

Input Voltage:

12VDC

Current Rating:

2A

Dimensions

Length:

14.50cm

Width:

9.80cm

Depth:

15.00cm

Shipping Weight:

2.60kg

KAC-CAM-70 1 YEAR-SUPPORT 1 (K-Cam4K, 1,680 Kb) [Download]
