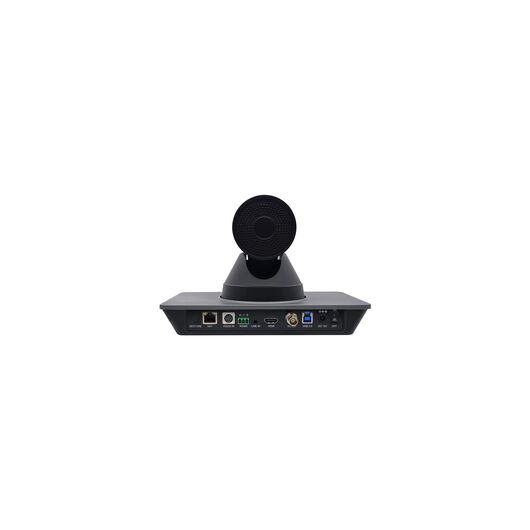

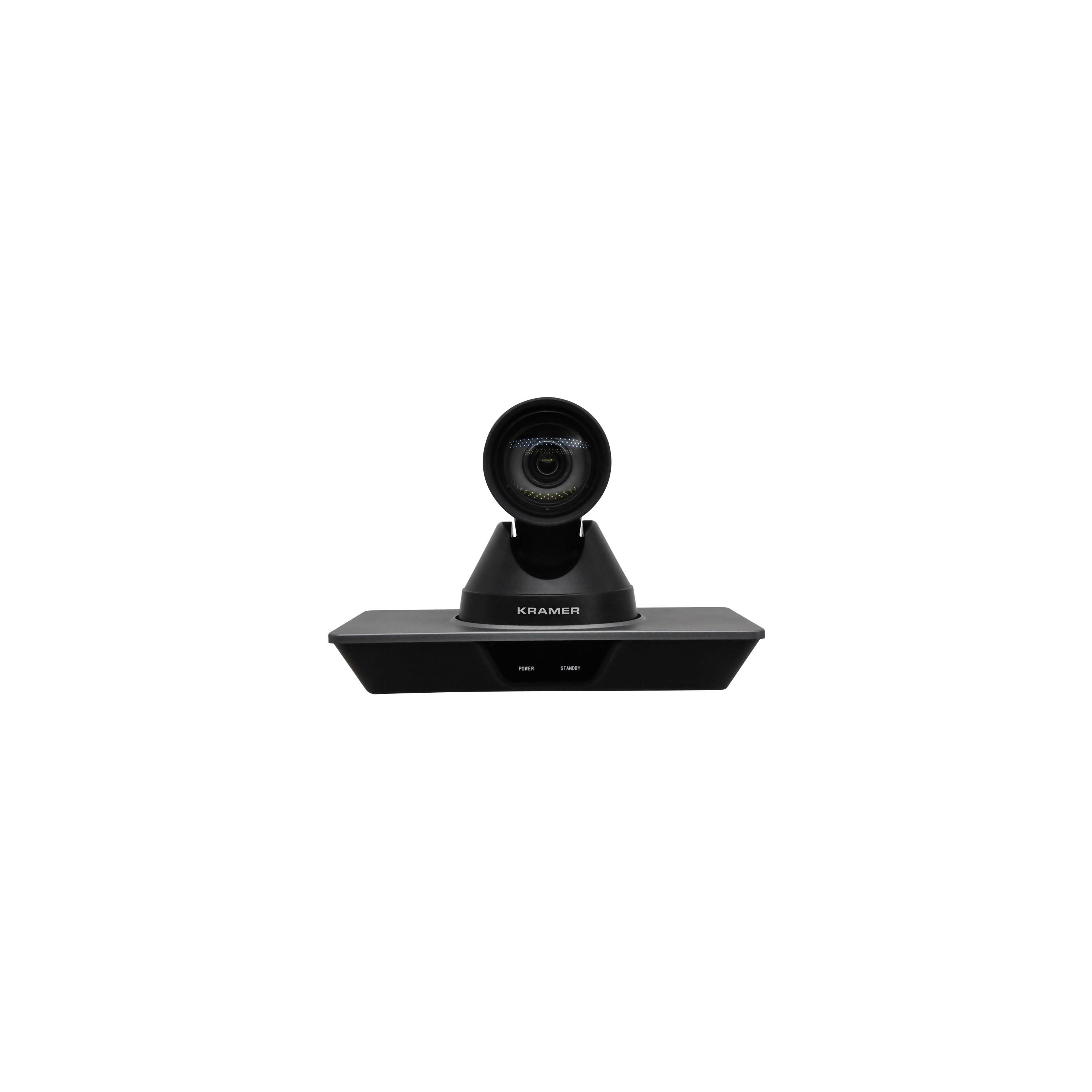

K-CAM4K 4K PTZ Camera & 4K UHD camera, 71-degree Wide-angle Lens & 12 Times Optical Zoom
Please sign in so that we can notify you about a reply
Ultra−HD camera for premium−clarity video in large spaces. Put every meeting in sharp focus with crystal−clear, ultra−high−definition video capture and advanced, yet easy, control.4K resolution, high−power optical and digital zooms, smooth PTZ operation and multiple outputs, the K−Cam4K takes video conferencing to a new level.
Features
Superior video at any distance —
- Wide–angle image capture with advanced PTZ control enables dynamic coverage of medium and large spaces, such as boardrooms, classrooms, and auditoriums.
- Best–in–class image clarity and highly accurate close–ups, with 4K60 resolution and 12x optical zoom plus 16x digital zoom.
- Enhanced video quality, even in low–light conditions, with industry–leading CMOS image sensing with 2D and 3D digital noise reduction (DNR).
Easy configuration and control —
- All operation, including pan, tile and zoom, are easily controlled from any Kramer control interface and/or the compact remote control.
- Multiple ports including RS–232, RJ–45, HDMI 1.4, and USB 3.0 deliver 4K video at up to 60 fps.
- Works seamlessly with virtually all meeting applications.
- Fast and simple setting of camera angle, with a choice of 255 pre–set camera positions.
Brand:
Kramer
Part number:
87-80011290
Product Type:
UHD Camera
Specifications
Lens Type:
12xf4.4mm, 52.8mm, f1.8, f2.6
Video Stream Type:
First Stream, Second Stream
Colour:
Black
Horizontal Angle of View:
71 to 8.2°
Tilt Speed Range:
0.5 to 15°/s
Number of Preset:
255
Horizontal Rotation Range:
±170°
Minimal Illumination:
0.5Lux@(F1.8, AGC ON)
Vertical Angle of View:
42.7 to 4.5°
Audio Compression Type:
AAC, G711A
Sensor Type:
1/2.5in CMOS
Vertical Rotation Range:
±30°
Power Rating:
12W
Support Protocols:
TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
Applications:
Enterprise Meeting Rooms, Educational Spaces, High-Quality Video Conferencing
Operating Temperature Range:
-10 to +40°C
Performance
Main Stream Resolution:
3840x2160pixels, 1920x1080pixels, 1280x720pixels, 1024x576pixels, 720x480pixels, 720x408pixels, 640x480pixels, 640x360pixels
Bit Rate Type:
Fixed Rate, Variable Rate
Video Bit Rate:
60 to 200Mbps
Video Signal-to-Noise Ratio:
≥55dB
Digital Noise Reduction:
3D Digital Noise Reduction
Sub Stream Resolution:
720x480pixels, 720x408p, 640x480pixels, 640x360pixels, 480x 320pixels, 320x240pixels
Shutter Time:
1/30 to 1/10sec
Frame Rate:
50Hz, 4K max to 30fps, 1080pixels max to 50fps
Video Compression Type:
H.264/H.265/MJPEG
Scanning Mode:
Progressive
Audio Bit Rate:
96Kbps, 128Kbps
Pan Speed Range:
1.6 to 76°/s
Preset Accuracy:
0.1°
Inputs and Ports
USB Type:
USB 3.0 on a USB Type B Connector
Power
Current Rating:
2A
Dimensions
Length:
17cm
Width:
23.5cm
Depth:
14.5cm
