Catalog :: Professional Video :: Video Conferencing Solutions :: Video Conferencing Accessories :: Video Conferencing Cameras :: J2630Z HD-SDI, IP Box Video Camera with Zoom Lens

J2630 – fixed camera, 12х optical zoom, 1080/30, IP and HD-SDI outputs. RS-485 control, Ethernet.

Brand:

VHD

Product Type:

Video Conference Camera

Specifications

Lens Type:

12xf3.5mm, 42.3mm, f1.8, f2.8

Video Stream Type:

First Stream, Second Stream

Horizontal Angle of View:

72.5 to 6.9°

Number of Preset:

255

Minimal Illumination:

0.5Lux@(F1.8, AGC ON)

Vertical Angle of View:

44.8 to 3.9°

Audio Compression Type:

AAC

Sensor Type:

1/2.8in CMOS Effectivepixels: 2.07 Megapixels

Special Features:

1080P Full-HD, 72.5° Wide-angle Lens + 12X Optical Zoom, POC and POE Supported, RS485 Remote Control, HD Digital Interface, AAC Audio Encoding, Jack, Network Interface Video Output, Low Illumination

Power Rating:

6W

Support Protocols:

TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast

Applications:

2D and 3D Noise Reduction Algorithm Greatly Reduces Image Noise, Even Under the Condition of Ultra-Low Illumination, it Still Keep the Picture Clean and Clear, the SNR of Image is as High as 55dB

Operating Temperature Range:

-10 to +40°C

Performance

Video System Type:

1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50

Main Stream Resolution:

1920x1080pixels, 1280x720pixels, 1024x576pixels

Bit Rate Type:

Fixed Rate, Variable Rate

Video Bit Rate:

32 to 20480Kbps

Video Signal-to-Noise Ratio:

≥55dB

Digital Noise Reduction:

2D and 3D Digital Noise Reduction

Sub Stream Resolution:

1280x720pixels, 720x576pixels, 720x480pixels, 320x240

Shutter Time:

1/30 to 1/10000sec

Frame Rate:

1 to 25fps (50Hz), 1 to 30fps (60Hz)

Video Compression Type:

H.264/MJPEG

Scanning Mode:

Progressive

Audio Bit Rate:

96Kbps, 128Kbps, 256Kbps

Inputs and Ports

Audio Interface Type:

1xLine In, 3.5mm Jack

HD Output Type:

1x3G-SDI BNC, 800mVp-p, 75Ω, as per SMPTE 424M Standard

Communication Interface:

1xRS-485 3-Core Honeycomb Interface, Max Distance 1200m, VISCA/Pelco-D/Pelco-P Protocol

Interface Type:

1xRJ5 10M/100M Adaptive Ethernet Port

Power

Input Voltage:

12V DC

Power Jack Type:

DC005 Type (DC IN 12V)

Current Rating:

0.5A

Dimensions

Length:

14.2cm

Width:

7.7cm

Depth:

7.2cm

No reviews found

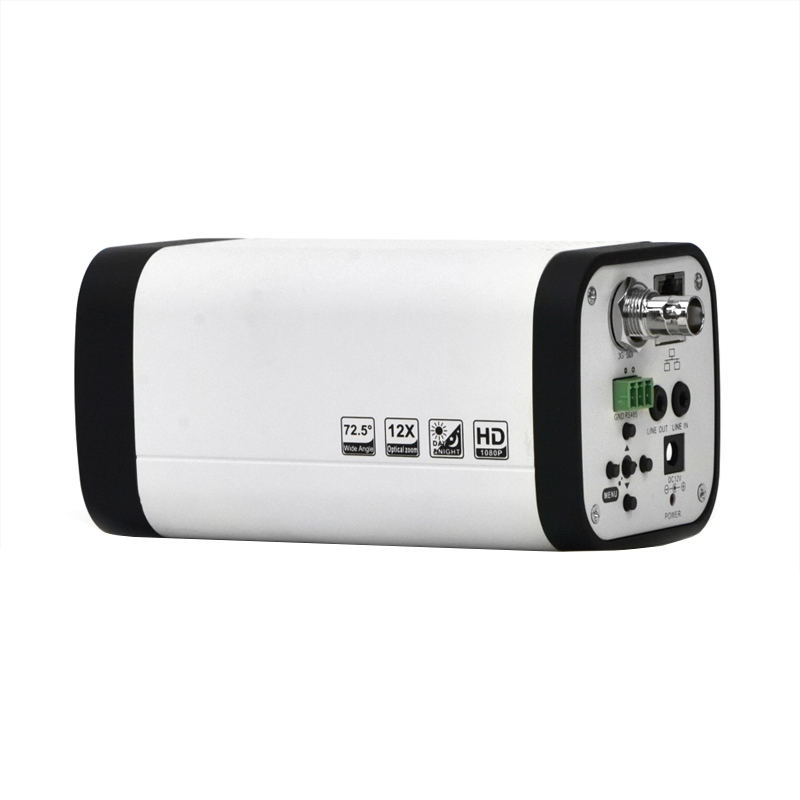

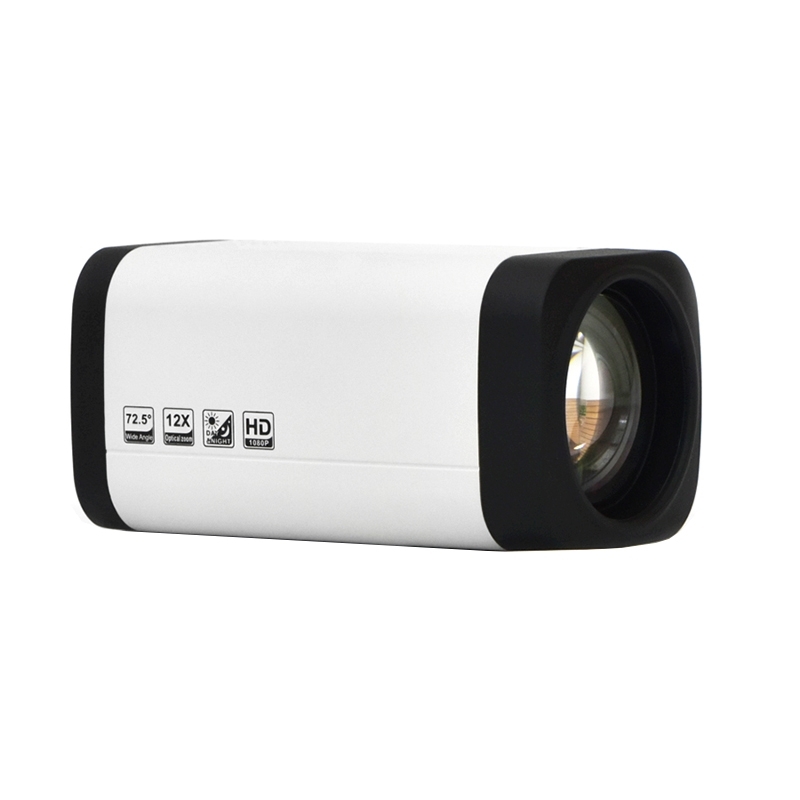

J2630Z HD-SDI, IP Box Video Camera with Zoom Lens
