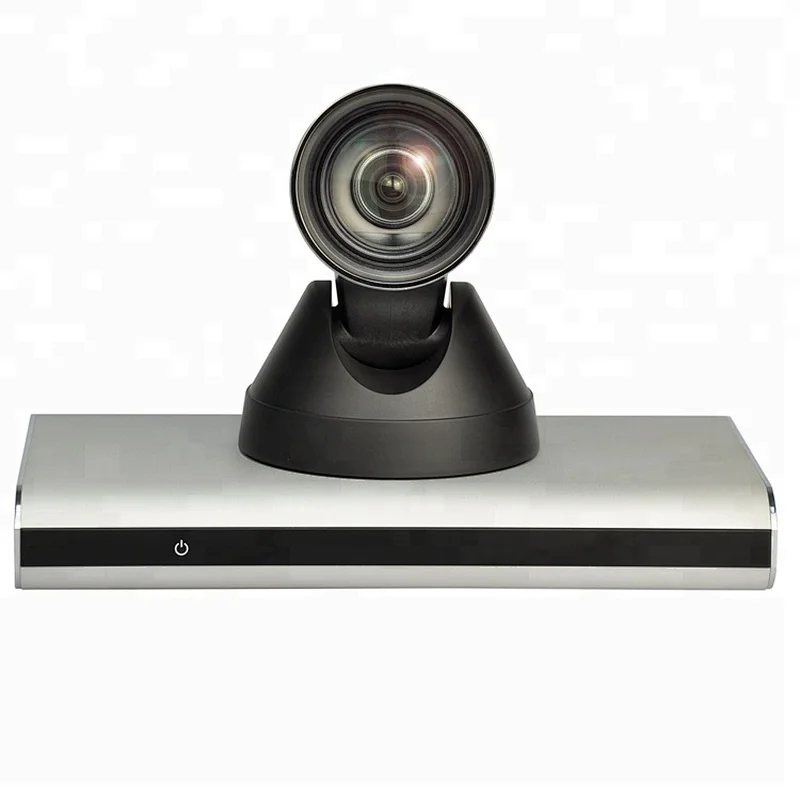

C9 Video Conference Camera, 12x, IP, PTZ
Please sign in so that we can notify you about a reply
Features
- New appearance with all metal A new appearance, use integrative design with all metal, bring you more sedate solid texture
- All-in-one Design All-in-one design, Camera + Video Conferencing System buit-in-one device, simple to use. Support external microphone, small size, easy to install
- 72.5° Wide-angle Lens Use 72.5° wide-angle high quality lens, support 12x optical zoom
- Standard protocols, fusion Support the standard SIP, H.323 protocol, compatible with the industry mainstream standard terminal and the network side device
- Low bandwidth, high-definition Support for the latest HP coding standard H.264, about 50% less bandwidth requirements compare with prervious encode standard
- Multiple type of microphone support Support digital microphone, USB microphone, general microphone input, adapted to different conference scene, more meet the demand of audio
- Wi-Fi support (optional) Built-in Wi-Fi module for optional, access networks by wireless, wiring simple, flexible and convenient
- High network adaptability and security Support H.460 through firewall technology, solution and solve the safety of the public and private network connection. Support multiple encryption protocol, such as H.235, SRTP and AES-128 etc. omni-directional to protect the communication security
- 1080P Full HD Support 1080P Full HD video, except built-in HD camera, support another DVI-I (compatible with HDMI, VGA/YPbPr) interface for HD video input, 2 channel HDMI for output
- Base on embedded DSP solution Base on embedded DSP hardware solutions, high efficiency, low latency
- Full open API Full open API, support the development of third-party applications, easy to implement secondary development for customers
- Bult-in HD MCU (optional) Support build-in MCU, max to implement 1 + 3 end mode HD video conference, very appropriate to use video conference on the small and medium-sized enterprises, low-cost, simple maintenance and so on
- Built-in VPN Support build-in VPN (Server / Client) , can implement private network without a private network
- 8G storage capacity Built-in 8G EMMC storage, faster to start, more storage capacity
- Remote, local recorded broadcast Support remote recording with one PC only, USB flash disk recording, PnP (Plus and Play), protecting meeting content
Brand:
VHD
Product Type:
Video Conference Camera
Specifications
Lens Type:
12x
Colour:
Black
Horizontal Angle of View:
72.5°
Number of Preset:
100
Horizontal Rotation Range:
±170°
Audio Compression Type:
AAC-LD, G.711, G.722, G.722.1, G.722.1C, G.726, SILK
Sensor Type:
1/2.7in CMOS 2.07 Mega Effective Pixel
Vertical Rotation Range:
-30 to +90°
Special Features:
PIP 1/16 picture size, optional position, Split output: Bi-screen and tri-screen display, Network address book, Support SDK API, Bulit-in MCU (optional), Support web-based conference management, Support USB micphone, Remote upgrade by network, Wi-Fi (opti
Power Rating:
24W
Support Protocols:
ITU-T H.323, IETF SIP
Operating Temperature Range:
0 TO +40°C
Performance
Video System Type:
1080pixels
Video Signal-to-Noise Ratio:
<46dB
Inputs and Ports
HD Output Type:
1xHDMI Audio Output, 1xDVI-I (HDMI, VGA/YPbPr), 2xHDMI
USB Type:
2xUSB 2.0 Host
Interface Type:
1xRJ5 10/100 Base-T
Power
Input Voltage:
12V DC
Dimensions
Length:
25.8cm
Width:
14.6cm
