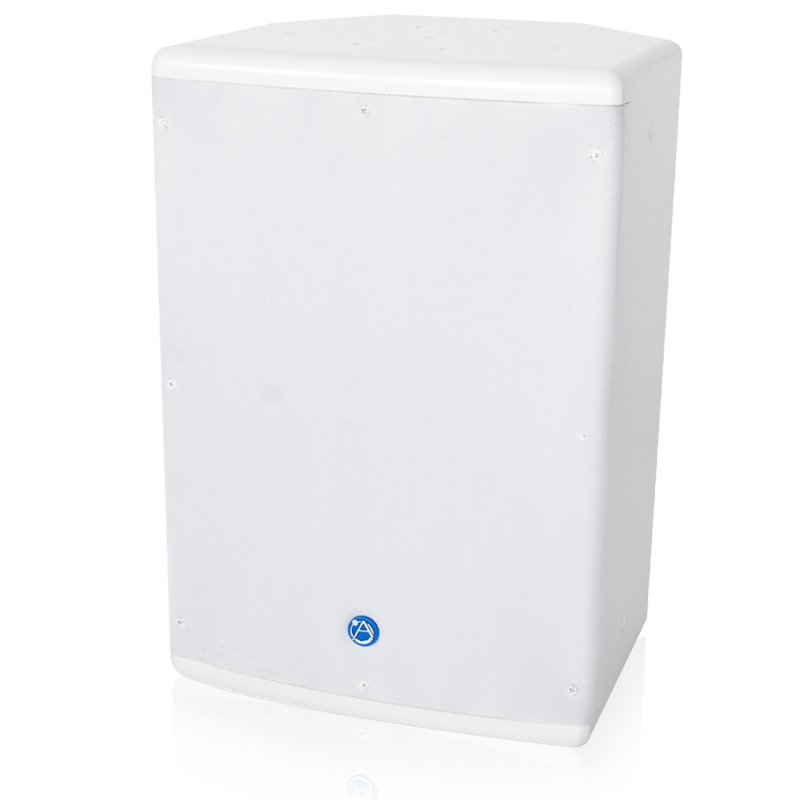

SM8CXT-W 8" 2-Way Compression Driver Coaxial Surface Mount Speaker with 60-Watt 70V Transformer - White

Write a review
SM8CXT-W
Atlas IED
Log in to see price Add to wish list Add to Project

SM Series speakers offer quality sound reproduction and contemporary styling. The SM8CXT-W features the SM8CXT60—a 150 watt speaker that combines an 8" diameter, low frequency transducer and a 1" exit, compression driver. The speaker has a curvlilinear, polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. The low frequency transducer and the high frequency driver feature permanently aligned voice coils for low distortion performance. The copper coils have Polyimide voice coil formers. The SM8CXT-W features a wood enclosure with a metal grille. Internal hardware, for flying, includes multiple (12) 1/4"-20 inserts for overheard suspension in most any orientation. A 90 degree conical pattern (2 kHz octave band) and amazing efficiency make the SM8CXT-W a perfect choice for a wide variety of applications including school auditoriums, gymnasiums, cafeterias, church sanctuary systems, and more.

Features
  • Attractive, Heavy-Duty Grille Assembly
  • Barrier Strip Input for 70.7/100V/8 Ohm or Parallel 4 Pole Speak-ON™ Input for 8 Ohm Operation Only
  • Durable White Finish
  • Fuse Protection for Low and High Frequency Drivers
  • High Performance Atlas Sound Compression Driver Coaxial Loudspeaker in Versatile, Flyable, Wood Enclosure
  • Includes Internal, High Efficiency 60 Watt 70.7/100V Transformer (May Be Bypassed for 8 Ohm Operation)
  • Multiple (12) 1/4"-20 Inserts, Providing Fly Points for a Variety of Mounting Configurations
  • Optional Brackets for Wall Mounting

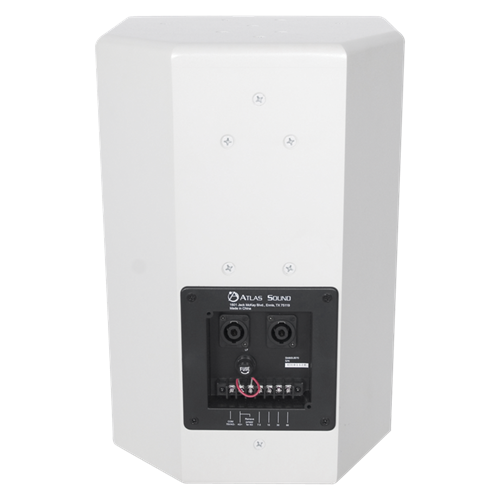

  • Unique Input Panel Allows Use of Standard 4" Square Box Cover (Raco 753 or eq.) for Applications Where Flex Conduit is Required for Termination
Brand:
Atlas IED
Product Type:
High Performance Coaxial Loudspeaker
Specifications
Coverage Angle:
90° (Dispersion)
Speaker Configuration:
Two Way
Colour:
White
Series:
SM
Power Rating:
150W (RMS)
Applications:
School Auditorium, Gymnasium, Cafeteria, Church Sanctuary System
Enclosure Type:
Versatile, Flyable
Material:
Wood (Enclosure)
Performance
Frequency Rating:
60Hz to 15kHz
Dimensions
Width:
27cm
Depth:
26.4cm
Height:
39.4cm
Weight:
8.6kg
Shipping Weight:
8.6kg
Other
Voltage Rating:
70V, 100V

SM8CXT-W 1 (ATS001826E-SM8CXT-Datasheet.pdf, 2,660 Kb) [Download]

SM8CXT-W 2 (ATS001610D-SM8-12CXT.INST.pdf, 213 Kb) [Download]
