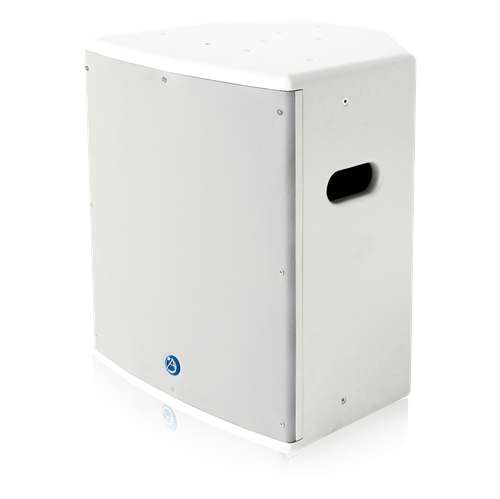

SM12SUB70-W 12" Surface Mount Subwoofer with 60-Watt 70V/100V Transformer - White
Please sign in so that we can notify you about a reply
The AtlasIED SM12SUB70 is designed for 8Ω and 70.7V distributed audio applications where low frequency enhancement is desired. This model features a unique compact cabinet design with multiple ¼"-20 inserts to allow easy suspension or wall mounting. The SM12SUB70 includes a built in 18dB / octave three-pole passive crossover network coupled to a long-excursion 12" woofer housed in multi-angle wood enclosure system. The passive crossover eliminates the need for a separate crossover or dedicated amplifier to power the speaker. A premium 70.7V transformer allows the SM12SUB70 to be paralleled with any 70.7V commercial audio system to provide extended low frequency response and more overall audio impact for foreground music systems(Unit is also 8Ω compatible).
Features- Multiple ¼"-20 Inserts, Provide Fly Points for a Variety of Mounting Configurations
- Includes Internal, High Efficiency, 60 Watt 70.7V/100V Transformer (May Be Bypassed for 8Ω Operation)
- Barrier Strip Input for 70.7V/100V/8Ω or Parallel 4 Pole Speak-ON™ Input,
- (8Ω Only)
- 250W RMS Power Handling
- Unique Input Panel Allows Use of Standard 4" Square Box Cover for Applications Where Flex Conduit is Required for Termination
- Durable, Rough-Coat Finish and Heavy-Duty Grille Assembly
- Optional Bracket for Wall Mounting
- Omnimount™ Compatible
Brand:
Atlas IED
Product Type:
Subwoofer System
Specifications
Colour:
White
Power Rating:
150W (RMS)
Applications:
High-Level Foreground Music Systems, General Live Sound Reinforcement (installed or Portable)
Material:
Wood (Enclosure)
Performance
Frequency Rating:
45 to 125Hz
Inputs and Ports
I/O Interface Type:
Barrier Strip
Input Connector Type:
Barrier Strip
Dimensions
Width:
36.8cm
Depth:
35.7cm
Height:
48.3cm
Weight:
11.7kg
Shipping Weight:
11.7kg
Other
Voltage Rating:
70.7V, 100V
Standards Met:
CE
No reviews found
