ALA5TAW-B Line Array Speaker, Non-Powered Passive, 116.8dB, 137Hz to 20kHz, Black
Please sign in so that we can notify you about a reply

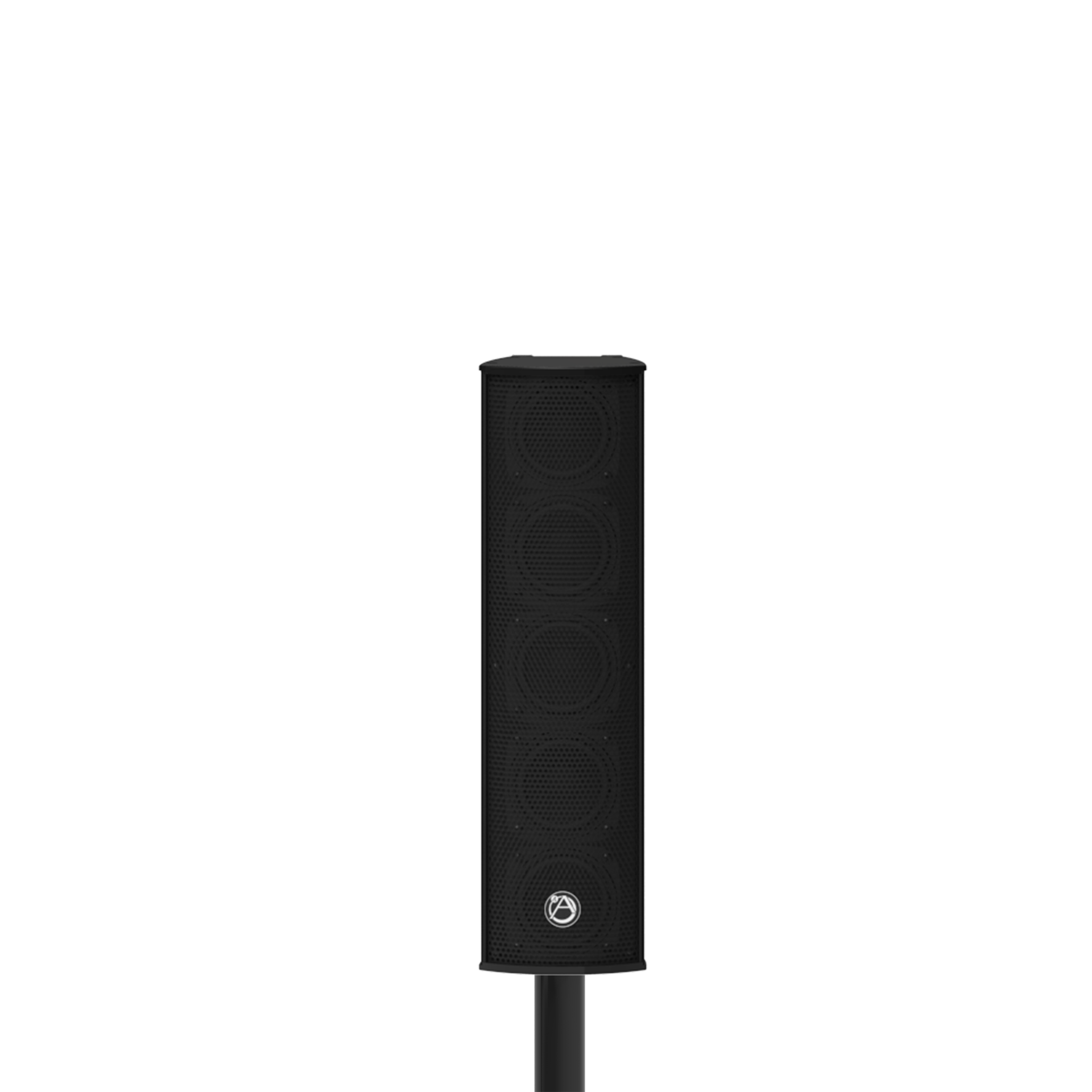

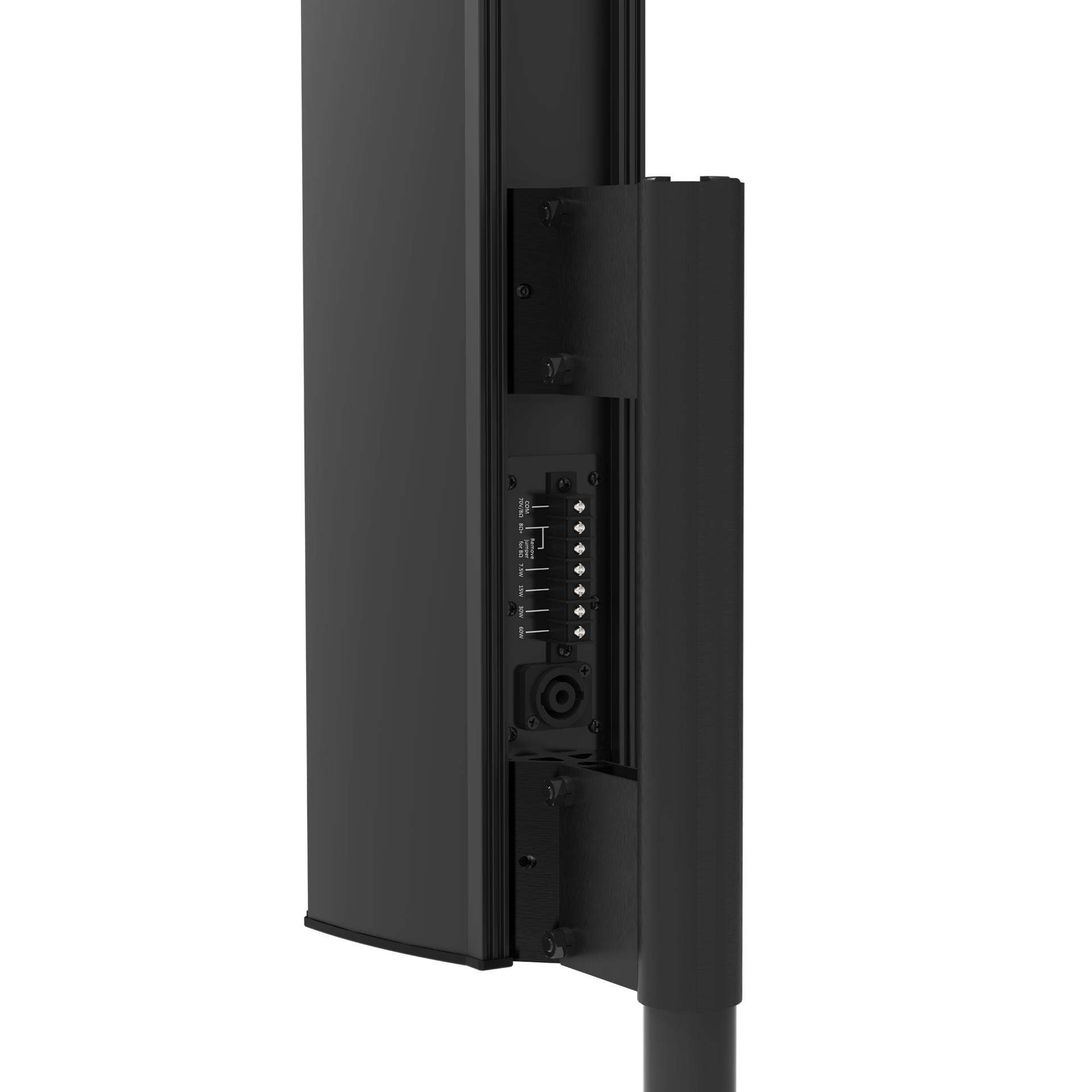

The EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW’s transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system.
Features- 45° Vertical Coverage
- 135° Horizontal Coverage
- Two (2) High Frequency Tweeters
- Five (5) Proprietary 3" (76mm) Full Range Drivers
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Wall Mount Bracket Included
Brand:
Atlas IED
Product Type:
Line Array Speaker
Specifications
Sound Level:
116.8dB
Coverage Angle:
45x135°
Number of Included Speakers:
5
Speaker Configuration:
Non-Powered Passive
Colour:
Black
Series:
ALA
Power Rating:
125W (Continuous), 250W (Program)
Applications:
Challenging Acoustic Spaces, Architecturally Sensitive Spaces, Houses of Worship, Transportation Hubs, Retail Spaces, Conference Rooms, Lecture Theatres, Gymnasiums, Convention Centers, Museums, Stadium Concourses, Multipurpose Venues
Enclosure Type:
Extruded Aluminium
Material:
Extruded Aluminium (Enclosure), Powder Coated Aluminium (Grille), Aluminium (Baffle Material), Powder Coated CRS (Mount Material)
Performance
Frequency Rating:
137Hz to 20kHz
Amplifier Power Rating:
375W
Dimensions
Width:
11.7cm
Depth:
13.8cm
Height:
42.2cm
Weight:
5.1kg
Shipping Weight:
6.6kg
Other
Standards Met:
EN54-24
No reviews found
