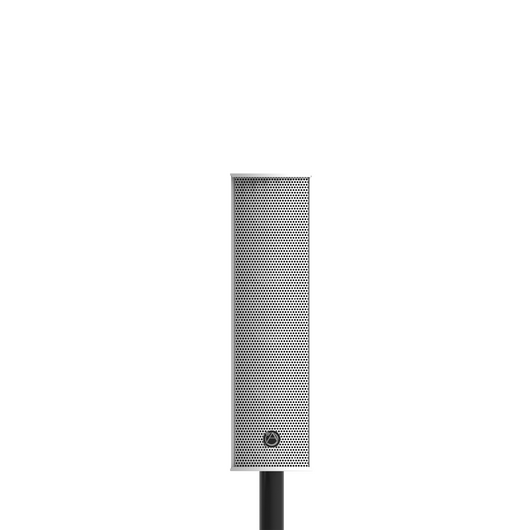

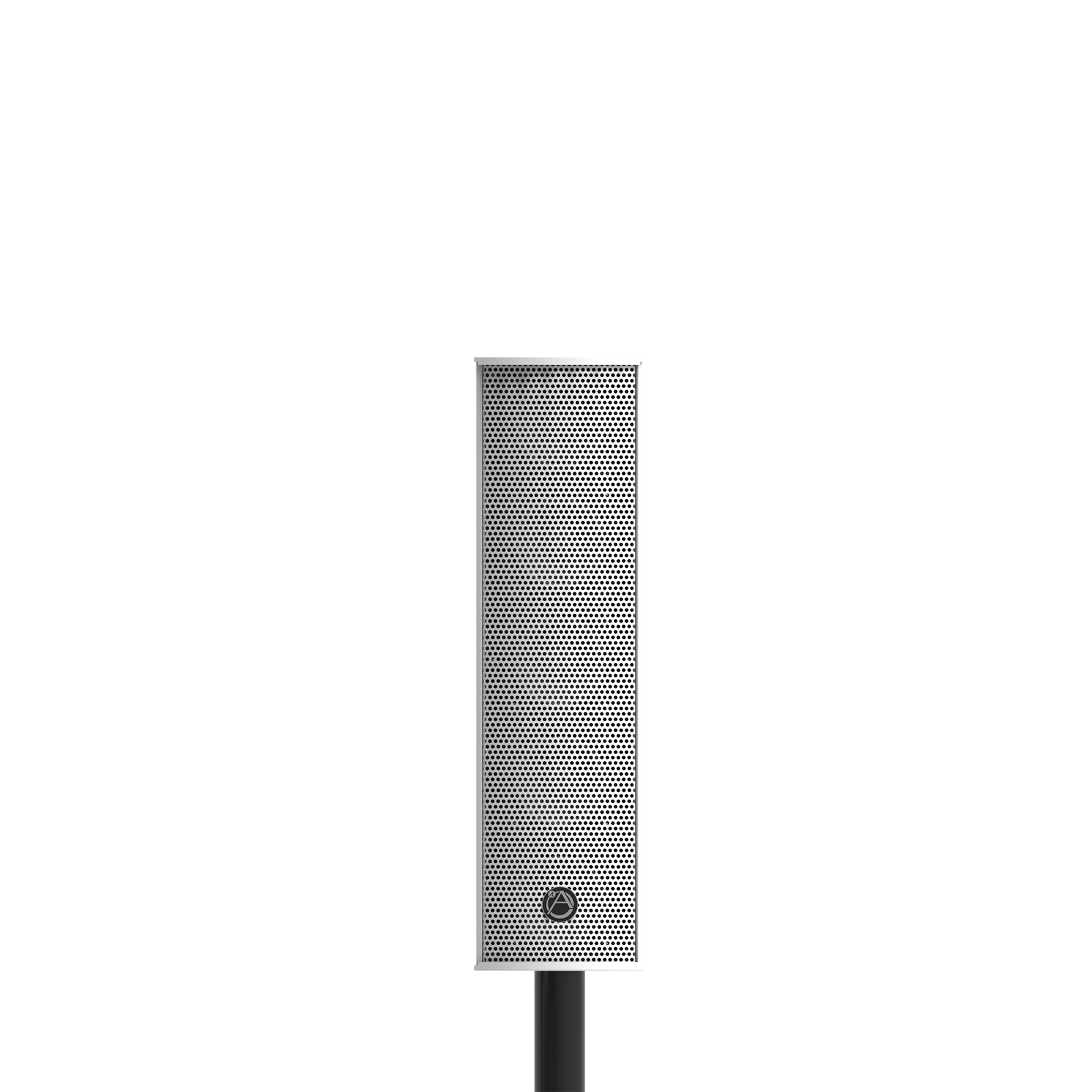

ALA5T 5 Speaker Full Range Line Array Speaker System

Write a review
ALA5T
Atlas IED
Out of stock
Log in to see price Add to wish list

The ultra-compact ALA5T column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5T’s transducer configuration combines five tight packed 3" full range drivers and two 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.

Note: Pole and Pole mount bracket sold separately.

Features

  • 45° Vertical Coverage
  • 135° Horizontal Coverage
  • Two (2) High Frequency Tweeters
  • Five (5) Proprietary 3" (76mm) Full Range Drivers

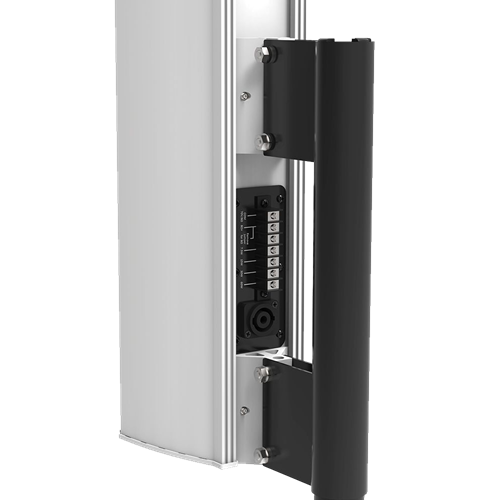

  • Barrier Strip and NL-4 Terminals
  • Lightweight Aluminium Housing
  • Wall Mount Bracket Included
Brand:
Atlas IED
Specifications
Product Type:
Array Loudspeaker
Coverage Angle:
135° (Horizontal)x45° (Vertical)
Speaker Configuration:
Two Way
Sound Level:
113.8dB (Continuous), 116.8dB (Peak 8Ω)
Colour:
Black, Chameleon Silver
Power Rating:
125W (Continuous), 250W (Program)
Applications:
Challenging Acoustic Space, Architecturally Sensitive Space, Houses of Worship, Transportation Hub, Retail Space, Conference Room, Lecture Theatre, Gymnasium, Convention Center, Museum, Stadium Concourse, Multipurpose Venue
Material:
Extruded Aluminium (Enclosure), Powder-Coated Aluminium (Grill), Aluminium (Baffle), Zinc-Plated/Powder-Coated CRS (Mount)
Performance
Frequency Rating:
137Hz to 20kHz
Amplifier Power Rating:
375W@8Ω
Inputs and Ports
I/O Interface Type:
Barrier Terminal
Input Connector Type:
Barrier Terminal for Transformer & 8Ω Inputs/NL4 for 8Ω Input
Dimensions
Width:
11.7cm
Depth:
13.7cm
Height:
42.2cm
Weight:
5.1kg (Unit with Wall Mount Bracket)
Other
Voltage Rating:
70V, 100V

ALA5T 1 (ATS005393A-ALA5T-Datasheet.pdf, 1,036 Kb) [Download]

ALA5T 2 (ATS005301B-ALA5T-Install-Sheet.pdf, 352 Kb) [Download]
