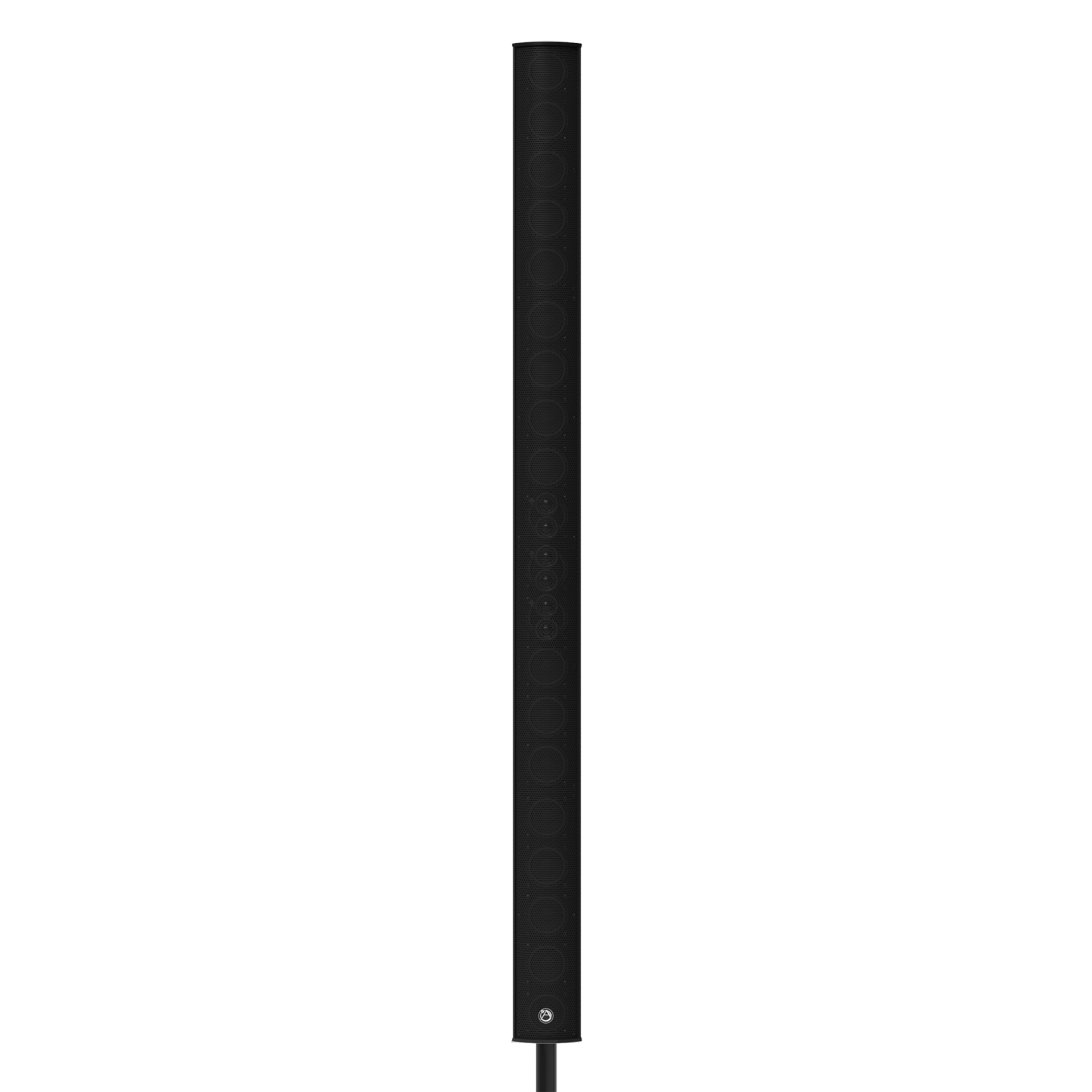

ALA20TAW-B Line Array Speaker, Non-Powered Passive, 127dB, 110Hz to 20kHz, Black
Please sign in so that we can notify you about a reply

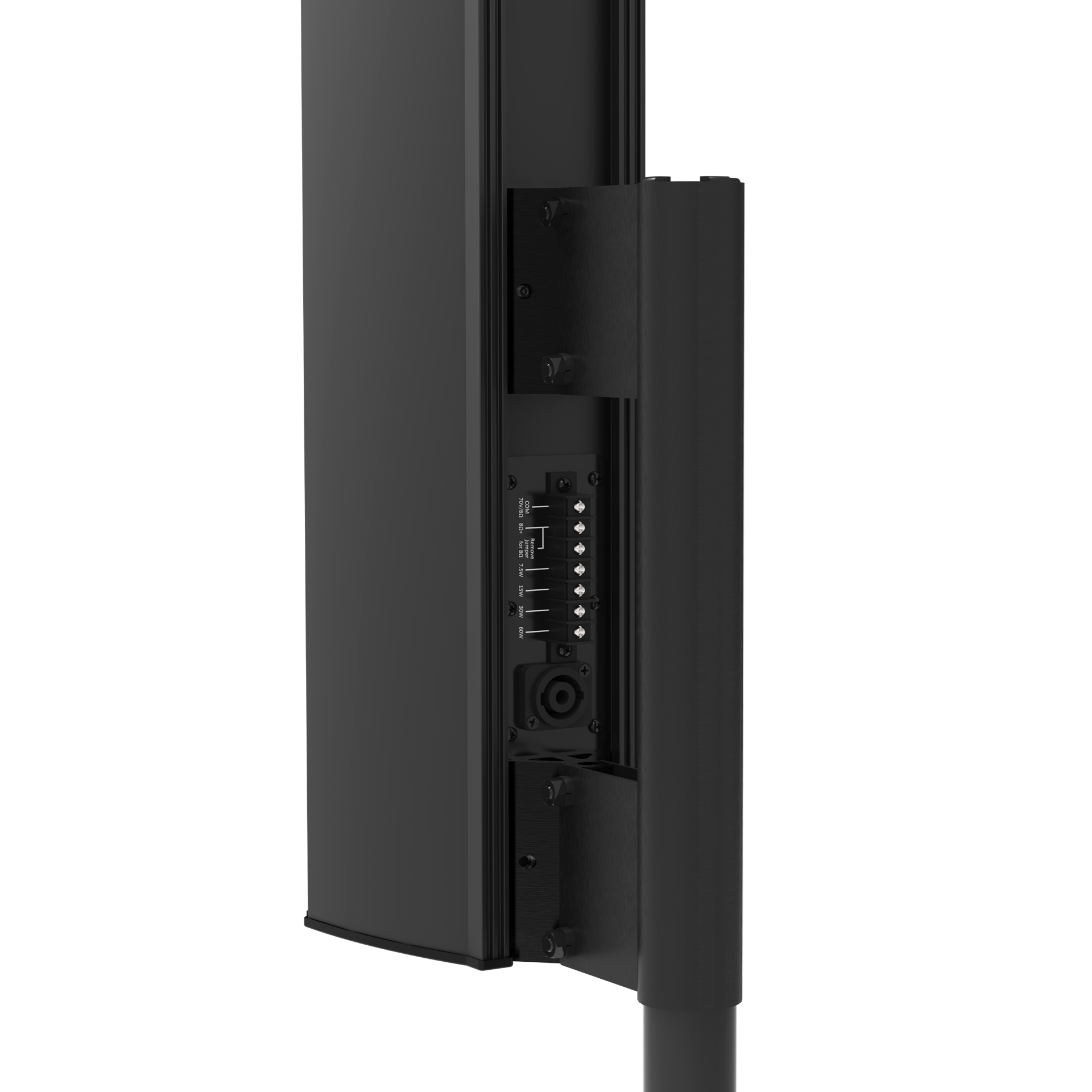

The EN54-24 certified ALA20TAW column line array loudspeaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20TAW’s transducer configuration combines twenty tight packed 3" (76mm) full range drivers and six 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system
Features- 45° Vertical Coverage
- 135° Horizontal Coverage
- Twenty (20) Proprietary 3" (76mm) Full Range Drivers
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Wall Mount Bracket Included
Brand:
Atlas IED
Product Type:
Line Array Speaker
Specifications
Sound Level:
127dB
Coverage Angle:
40x135°
Number of Included Speakers:
20
Speaker Configuration:
Non-Powered Passive
Colour:
Black
Series:
ALA
Power Rating:
500W (Continuous), 1000W (Program)
Applications:
Challenging Acoustic Spaces, Architecturally Sensitive Spaces, Houses of Worship, Transportation Hubs, Retail Spaces, Conference Rooms, Lecture Theatres, Gymnasiums, Convention Centers, Museums, Stadium Concourses, Multipurpose Venues
Enclosure Type:
Extruded Aluminium
Material:
Extruded Aluminium (Enclosure), Powder Coated Aluminium (Grille), Aluminium (Baffle Material), Powder Coated CRS (Mount Material)
Performance
Frequency Rating:
110Hz to 20kHz
Amplifier Power Rating:
1000W
Dimensions
Width:
11.7cm
Depth:
13.8cm
Height:
167cm
Weight:
17.3kg
Shipping Weight:
5.1kg
Other
Standards Met:
EN54-24
