ALA15TAW-B Line Array Speaker, Non-Powered Passive, 123dB, 160Hz to 20kHz, Black
Please sign in so that we can notify you about a reply

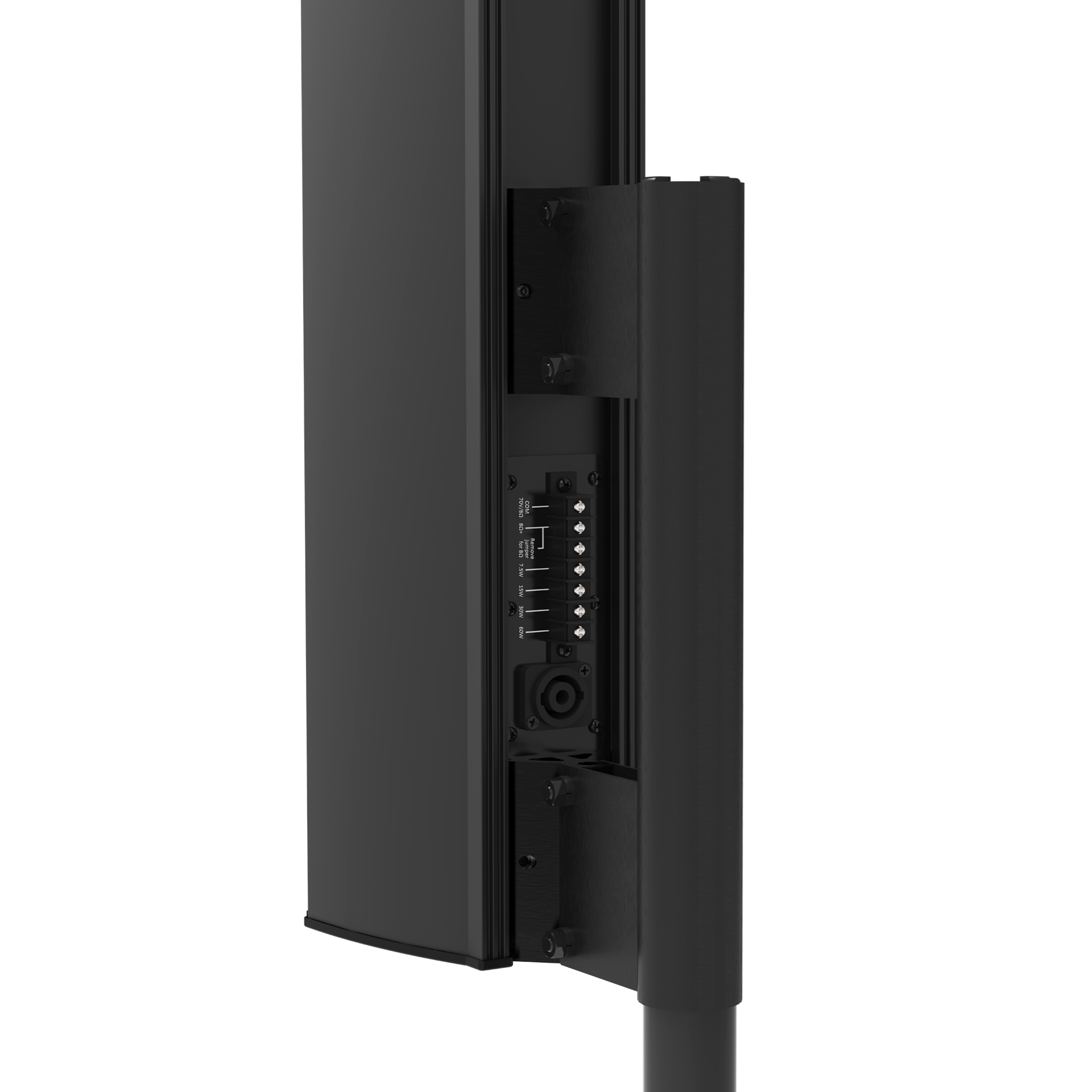

The EN54-24 certified ALA15TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA15TAW’s transducer configuration combines fifteen tight packed 3" (76mm)full range drivers and four 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system
Features- 45° Vertical Coverage
- 135° Horizontal Coverage
- Fifteen (15) Proprietary 3" (76mm) Full Range Drivers
- Four (4) High Frequency Tweeters
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Wall Mount Bracket Included
Brand:
Atlas IED
Product Type:
Line Array Speaker
Specifications
Sound Level:
123dB
Coverage Angle:
40x135°
Number of Included Speakers:
15
Speaker Configuration:
Non-Powered Passive
Colour:
Black
Series:
ALA
Power Rating:
250W (Continuous), 500W (Program)
Applications:
Challenging Acoustic Spaces, Architecturally Sensitive Spaces, Houses of Worship, Transportation Hubs, Retail Spaces, Conference Rooms, Lecture Theatres, Gymnasiums, Convention Centers, Museums, Stadium Concourses, Multipurpose Venues
Enclosure Type:
Extruded Aluminium
Material:
Extruded Aluminium (Enclosure), Powder Coated Aluminium (Grille), Aluminium (Baffle Material), Powder Coated CRS (Mount Material)
Performance
Frequency Rating:
160Hz to 20kHz
Amplifier Power Rating:
600W
Dimensions
Width:
11.7cm
Depth:
13.8cm
Height:
125.4cm
Weight:
13.5kg
Shipping Weight:
3.8kg
Other
Standards Met:
EN54-24
