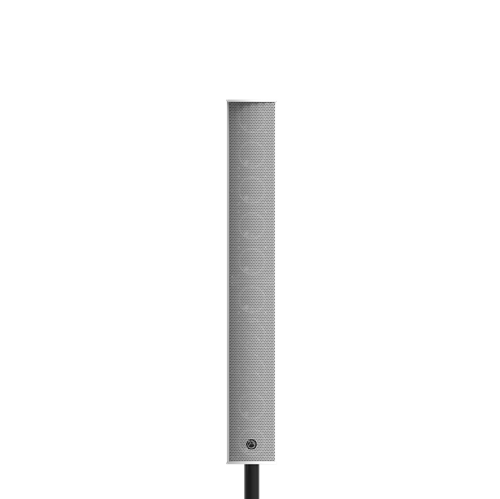

ALA10TAW EN54-24 Certified 10 Speaker Full Range Line Array Speaker System (white finish)
Please sign in so that we can notify you about a reply

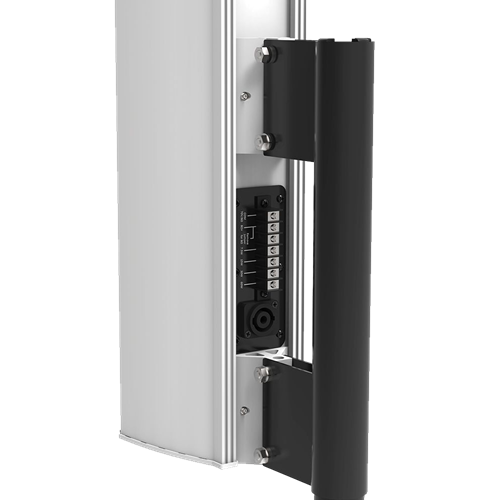

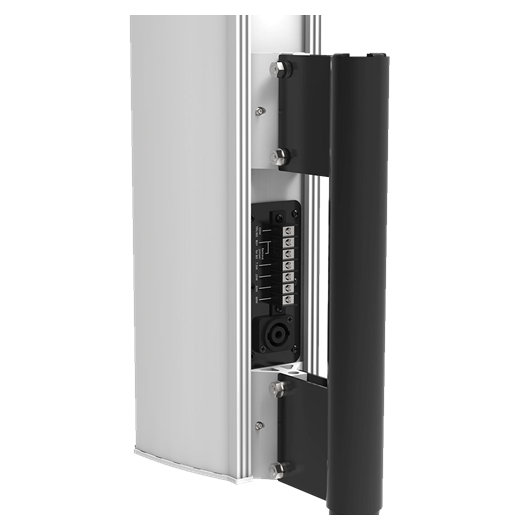

The EN54-24 certified compact ALA10TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA10TAW’s transducer configuration combines ten tight packed 3" (76mm) full range drivers and four 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.
Note: Pole and Pole mount bracket sold separately.
Features
- 45° Vertical Coverage
- 135° Horizontal Coverage
- Ten (10) Proprietary 3" (76mm) Full Range Drivers
- Four (4) High Frequency Tweeters
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Wall Mount Bracket Included
Brand:
Atlas IED
Product Type:
Array Loudspeaker
Specifications
Coverage Angle:
135° (Horizontal)x40° (Vertical)
Speaker Configuration:
Two Way
Sound Level:
119dB (Continuous), 122dB (Peak 6Ω), 96dB (4m EN54-24/Passive-100V/60W)
Colour:
White
Power Rating:
200W (Continuous), 400W (Program)
Applications:
Challenging Acoustic Space, Architecturally Sensitive Space, Houses of Worship, Transportation Hub, Retail Space, Conference Room, Lecture Theatre, Gymnasium, Convention Center, Museum, Stadium Concourse, Multipurpose Venue
Material:
Extruded Aluminium (Enclosure), Powder-Coated Aluminium (Grill), Aluminium (Baffle), Powder-Coated CRS (Mount)
Performance
Frequency Rating:
160Hz to 20kHz
Amplifier Power Rating:
600W@6Ω
Inputs and Ports
I/O Interface Type:
Barrier Terminal
Input Connector Type:
Barrier Terminal for Transformer & 6Ω Inputs/NL4 for 6Ω Input
Dimensions
Width:
11.7cm
Depth:
13.8cm
Height:
83.8cm
Weight:
8.9kg (Unit with Wall Mount Bracket)
Shipping Weight:
10.9kg
Other
Voltage Rating:
70V, 100V
Standards Met:
EN54-24 Certified
