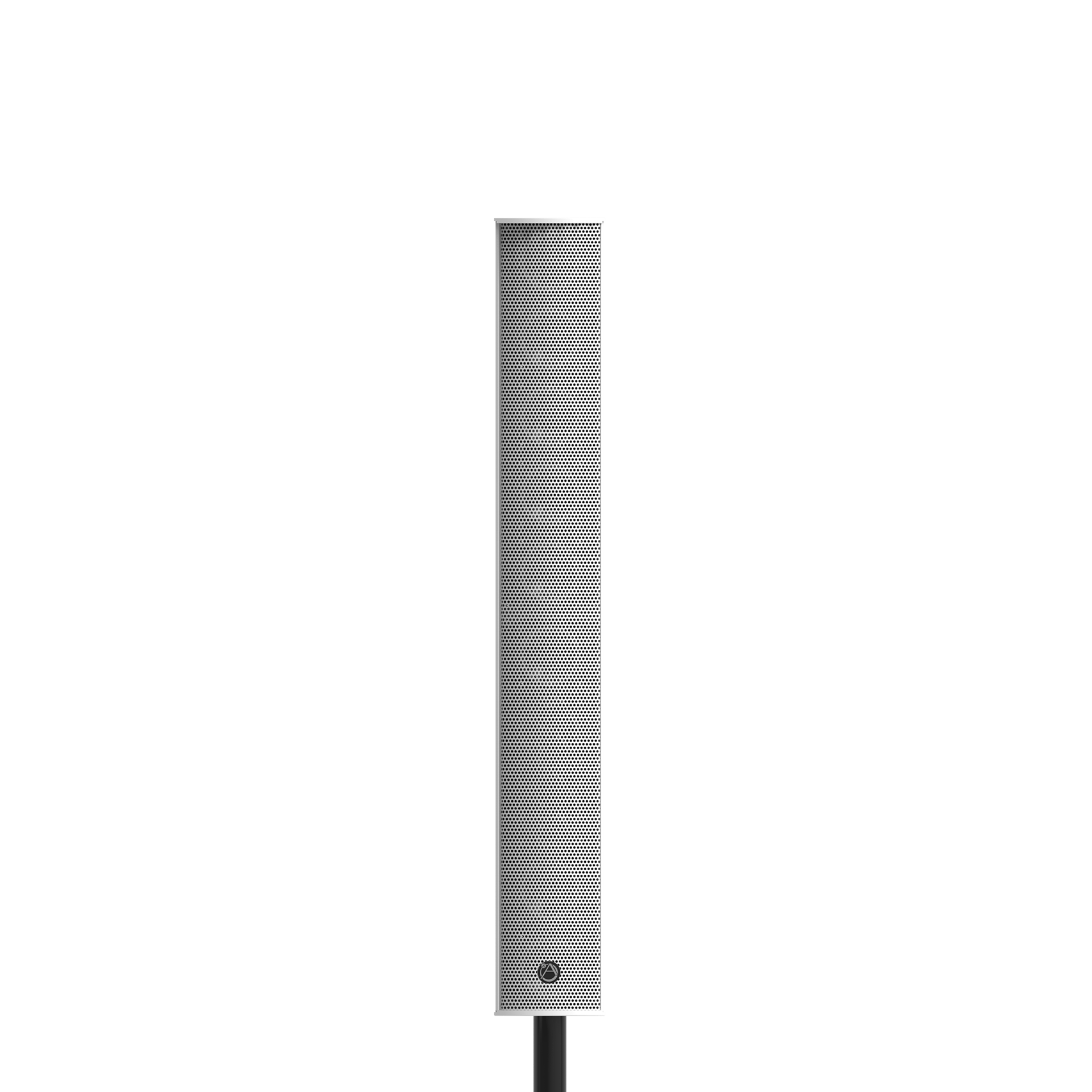

ALA10T 10 Speaker Full Range Line Array Speaker System

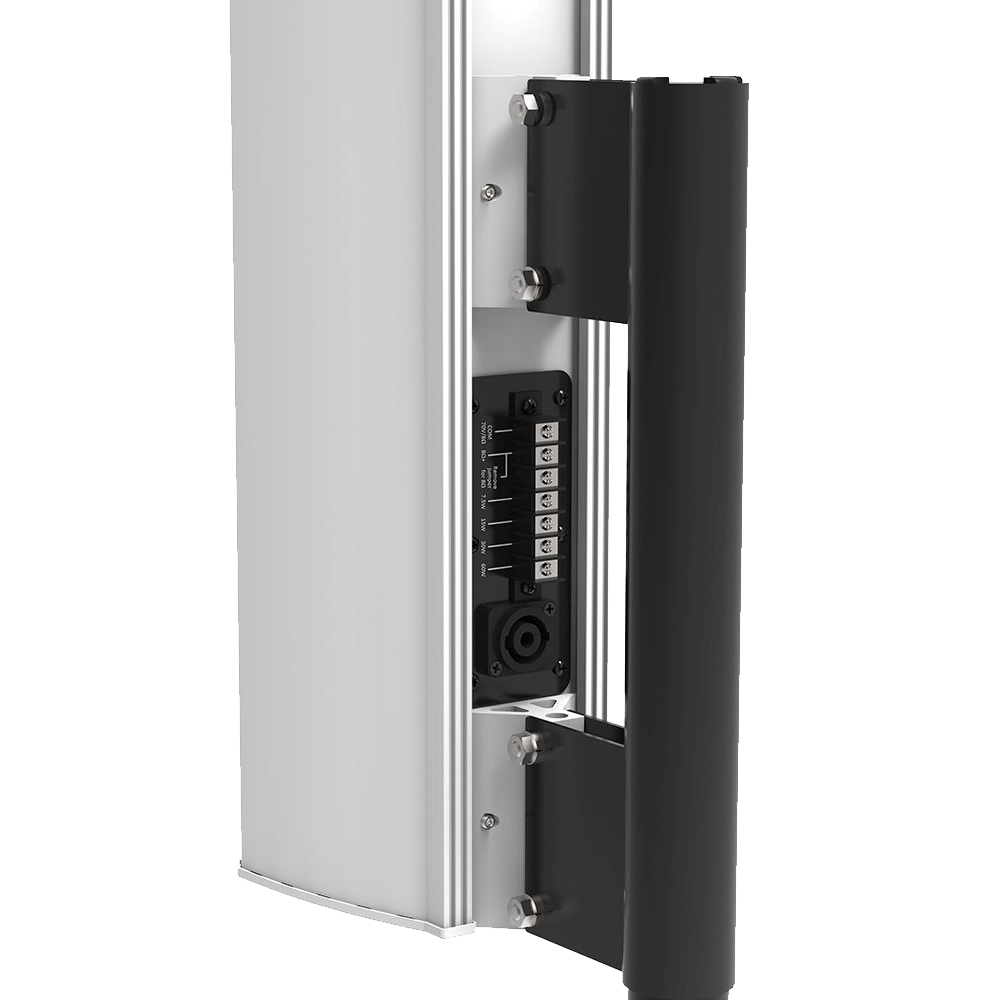

The ALA10T column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA10T’s transducer configuration combines ten tight packed 3" full range drivers and four 25mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.

Note: Pole and Pole mouth bracket sold separately.

Features

  • 45° Vertical Coverage
  • 135° Horizontal Coverage
  • Ten (10) Proprietary 3" (76mm) Full Range Drivers
  • Four (4) High Frequency Tweeters
  • Barrier Strip and NL-4 Terminals
  • Lightweight Aluminum Housing
  • Wall Mount Bracket Included
Brand:
Atlas IED
Specifications
Product Type:
Array Loudspeaker
Speaker Configuration:
Two Way
Sound Level:
119dB (Continuous), 122dB (Peak 8Ω)
Power Rating:
200W (Continuous), 400W (Program)
Applications:
Challenging Acoustic Space, Architecturally Sensitive Space, Houses of Worship, Transportation Hub, Retail Space, Conference Room, Lecture Theatre, Gymnasium, Convention Center, Museum, Stadium Concourse, Multipurpose Venue
Material:
Extruded Aluminium (Enclosure), Powder-Coated Aluminium (Grill), Aluminium (Baffle), Powder-Coated CRS (Mount)
Inputs and Ports
I/O Interface Type:
Barrier Terminal
Input Connector Type:
Barrier Terminal for Transformer & 8Ω Inputs/NL4 for 8Ω Input
Dimensions
Width:
11.7cm
Depth:
13.7cm
Height:
83.5cm
Weight:
8.9kg
Shipping Weight:
10.9kg

ALA10T 1 (ATS005394A-ALA10T-Datasheet.pdf, 945 Kb) [Download]
