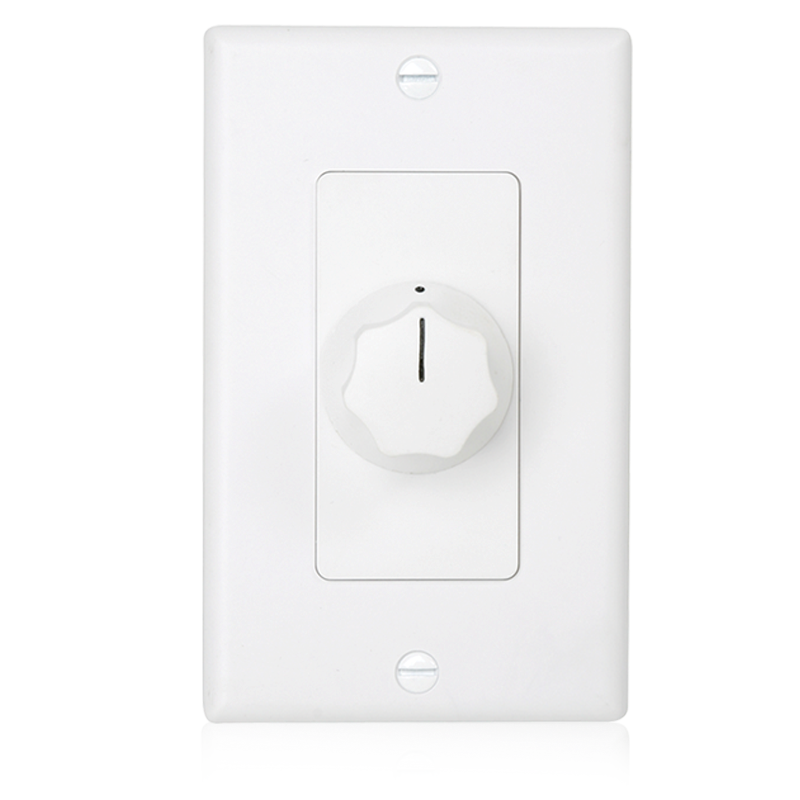

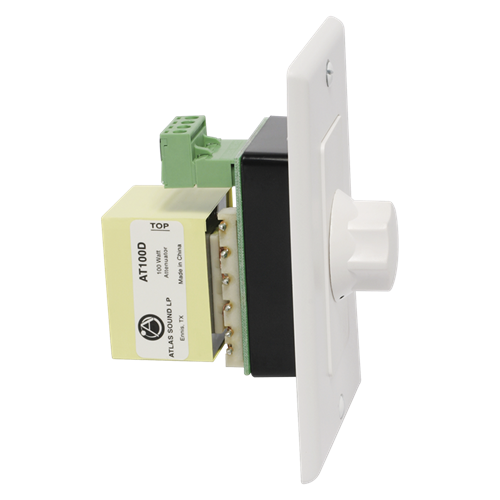

AT100D Deluxe Decora Plate Mounted 100W Attenuator, 3dB Steps

Write a review
AT100D
Atlas IED
Log in to see price Add to wish list Add to Project

Decora style High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and comes complete with white and ivory plastic plates with matching skirted knobs.

Features

  • Attractive Alternative to Commercial Series Attenuators
  • Mount into Most 1-Gang E.O. Boxes
  • White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style
Brand:
Atlas IED
Product Type:
Attenuator
Specifications
Mounting Type:
Plate Mount
Colour:
Ivory, White
Style:
Decora
Power Rating:
100W
Dimensions
Width:
6.9cm
Depth:
6.3cm
Height:
11.4cm
Shipping Weight:
0.6kg
Other
Voltage Rating:
70.7V

AT100D 1 (ATS001063D-Commercial-Attenuators-Datasheet.pdf, 1,002 Kb) [Download]
