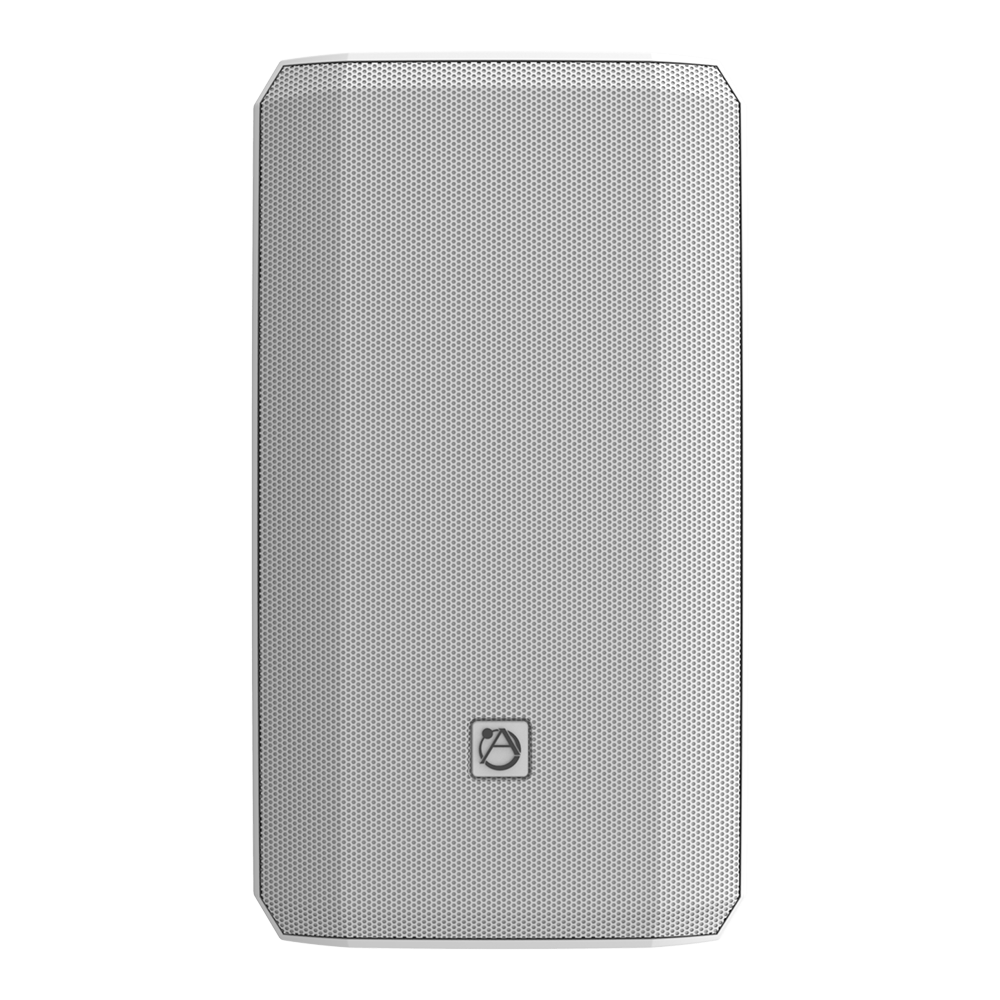

AS-8T-W 8" AS Series Surface Mount Speaker, White
Please sign in so that we can notify you about a reply
The AtlasIED AS-8T is a two-way compact Surface-Mount weather resistant loudspeaker boasting an exceptional performance-to-size ratio for demanding foreground & background applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites. Featuring a high excursion, weather treated 8" woofer, seamlessly transitioning to a 1" exit compression driver, the AS-8T delivers a consistent and accurate broadband frequency response, both on and off axis. The outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out. Safe and effective Installation of the AS-8T is made simple by way of the included slip free yoke mount, optional universal mount, or compatibility with 3rd party VESA mounts. Equipped with a low insertion loss 60W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover. The AS-8T has been sonically matched with the wider range of AS Series models, this allows consistency in installations where there is a mix of products used. For the most discerning designers and integrators, a complete suite of EASE™ (including compatibility with EASE Focus), CF2, 3D CAD, and BIM/Revit families are available for download.
Features- Minimalistic and clean industrial design for sensitive architectural
- Constraints
- Effective coverage for systems with space limitations
- Extremely consistent horizontal off axis performance
- Ultra-low insertion loss 60W transformer for dynamic performance
- In distributed systems
- High impact ABS enclosure with UV inhibitor
- IP55 & UL1480A rated
- Slip-Free yoke mount supplied. Optional pan and tilt bracket
- Compatible with VESA™ mounts
- Advanced tunings available via AtlasIED Atmosphere DSP platform
Brand:
Atlas IED
Product Type:
2-Way All Weather Speaker
Product information
Compression Driver Size:
2.5cm
Operating Range:
49Hz to 20kHz
Specifications
SPL:
113dB
Transducer Size:
200mm (LF), 25mm (HF)
Transformer Tap Scale:
60W, 30W, 15W, 7.5W, (3.8W 70V), Low Z Operation
Woofer Cone Material:
Weather Treated Paper
Woofer Size:
20.3cm
Woofer Surround Material:
Butyl Rubber
Coverage Angle:
100 x 90°
Mounting Type:
Surface Mount
Colour:
White
Series:
AS
IP Rating:
IP55
Power Rating:
180W (Average), 360W (Programme), 720W (Peak)
Applications:
Bars & Restaurants, Hotels, Casinos & Cruise Ships, Retail, Houses of Worship, Education, Themed Attractions, Transportation, Corporate & Business, Museums & Courthouses, Live Music Clubs
Material:
High Impact ABS (Enclosure), Aluminium (Grille)
Resistant Properties:
Weather-Resistant, UV-Resistant;Cuff Resistant
Includes:
Slip Free U-Bracket
Performance
Directivity Factor:
08.фев
Maximum Output:
119dB
Operating Temperature Rating:
-40 to +60°C
Sensitivity:
90dB
Frequency Rating:
70Hz to 18kHz
Dimensions
Width:
24.13cm
Depth:
23.62cm
Height:
43.56cm
Weight:
10.84kg
Shipping Weight:
14.92kg
Other
Standards Met:
Mil STD 810G, UL1480A, CE
Warranty:
5yrs
