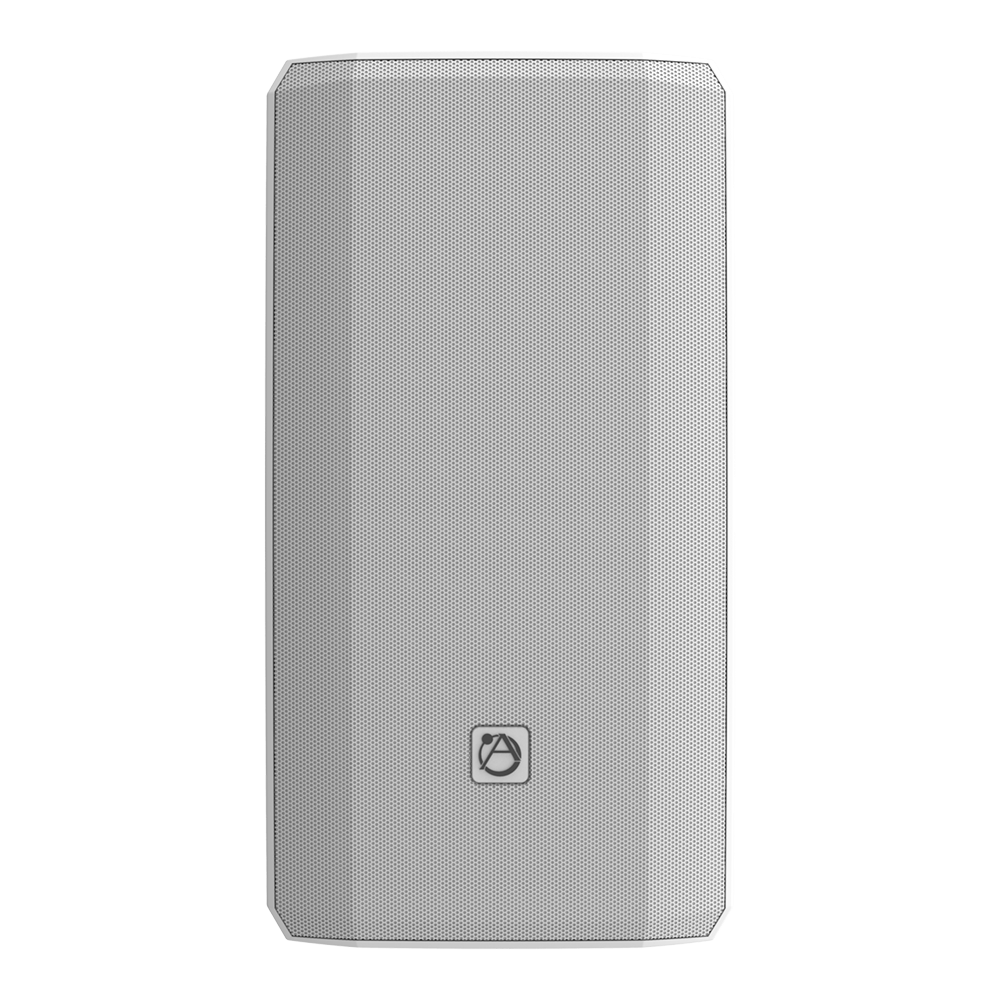

AS-10T-W 10" AS Series Surface Mount Speaker, White
Please sign in so that we can notify you about a reply
The AtlasIED AS-10T is a high performance, two-way Surface-Mount weather resistant loudspeaker boasting an exceptional performance-to-size ratio for distributed sound reinforcement applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites. Featuring a high excursion 10" woofer, seamlessly transitioning to a 1" exit compression driver, the AS-10T delivers a consistent and accurate broadband frequency response, both on and off axis. The outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out. Safe and effective Installation of the AS-10T is made simple by way of the included slip free yoke mount. Equipped with a low insertion loss 120W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover. The AS-10T has been sonically matched with the wider range of AS Series models, this allows consistency in installations where there is a mix of products used. For the most discerning designers and integrators, a complete suite of EASE™ (including compatibility with EASE Focus), CF2, 3D CAD, and BIM/Revit families are available for download.
Features- Minimalistic and clean industrial design for sensitive architectural
- Constraints
- Effective coverage for systems with space limitations
- Extremely consistent horizontal off axis performance
- Ultra-low insertion loss 120W transformer for dynamic performance in distributed systems
- High impact ABS enclosure with UV inhibitor
- IP55 & UL1480A rated
- Slip-Free yoke mount supplied. Optional pan and tilt bracket
- Compatible with VESA™ mounts
- Advanced tunings available via AtlasIED Atmosphere DSP platform
Brand:
Atlas IED
Product Type:
2-Way All Weather Speaker
Product information
Compression Driver Size:
2.5cm
Operating Range:
45Hz to 20kHz
Specifications
SPL:
117dB
Transducer Size:
250mm (LF), 25mm (HF)
Transformer Tap Scale:
120W, 60W, 30W, 15W (7.5W 70V), Low Z Operation
Woofer Cone Material:
Weather Treated Paper
Woofer Size:
25.4cm
Woofer Surround Material:
Fabric Double Roll
Coverage Angle:
100 x 90°
Mounting Type:
Surface Mount
Colour:
White
Series:
AS
IP Rating:
IP55
Power Rating:
240W (Average), 480W (Programme), 960W (Peak)
Applications:
Bars & Restaurants, Hotels, Casinos & Cruise Ships, Retail, Houses of Worship, Education, Themed Attractions, Transportation, Corporate & Business, Museums & Courthouses, Live Music Clubs
Material:
High Impact ABS (Enclosure), Aluminium (Grille)
Resistant Properties:
Weather-Resistant, UV-Resistant;Cuff Resistant
Includes:
Slip Free U-Bracket
Performance
Directivity Factor:
08.май
Maximum Output:
123dB
Operating Temperature Rating:
-40 to +60°C
Sensitivity:
93dB
Frequency Rating:
58Hz to 18kHz
Dimensions
Width:
31.12cm
Depth:
29.82cm
Height:
59.44cm
Weight:
16.16kg
Shipping Weight:
22.43kg
Other
Standards Met:
Mil STD 810G, UL1480A, CE
Warranty:
5yrs
