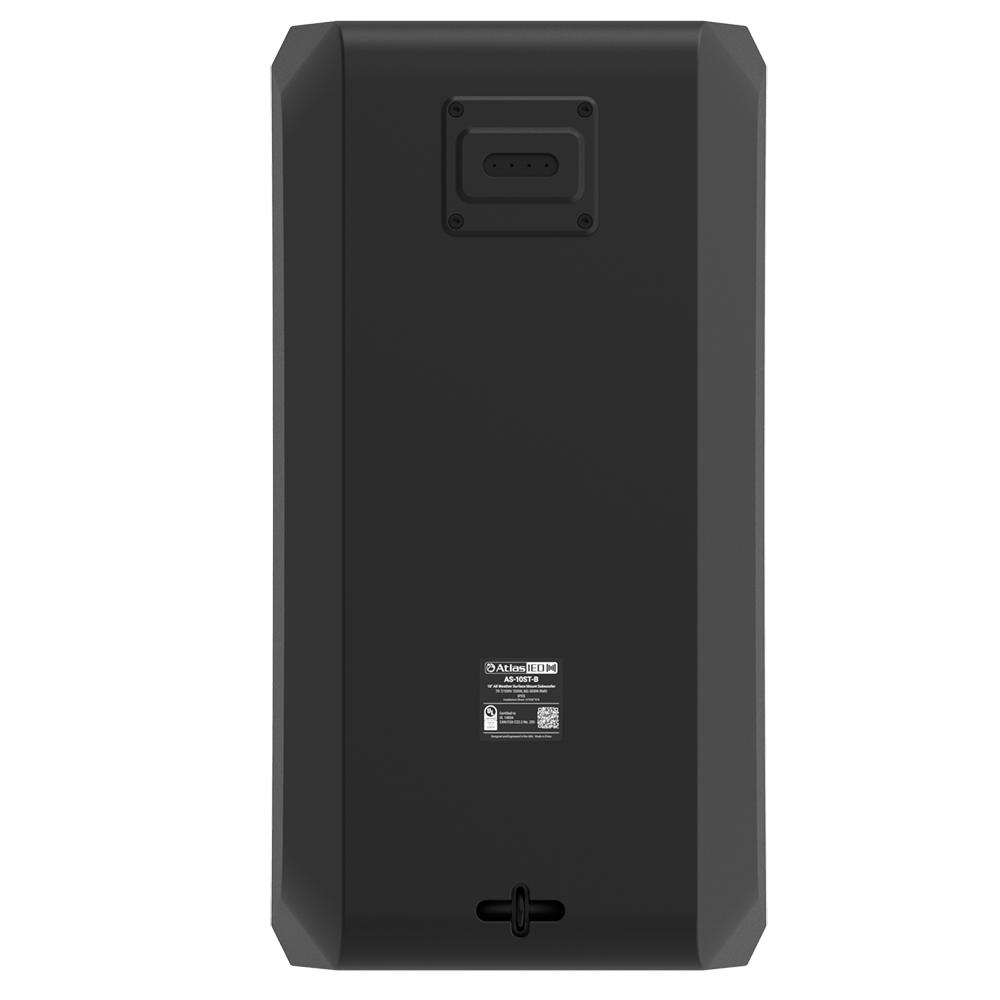

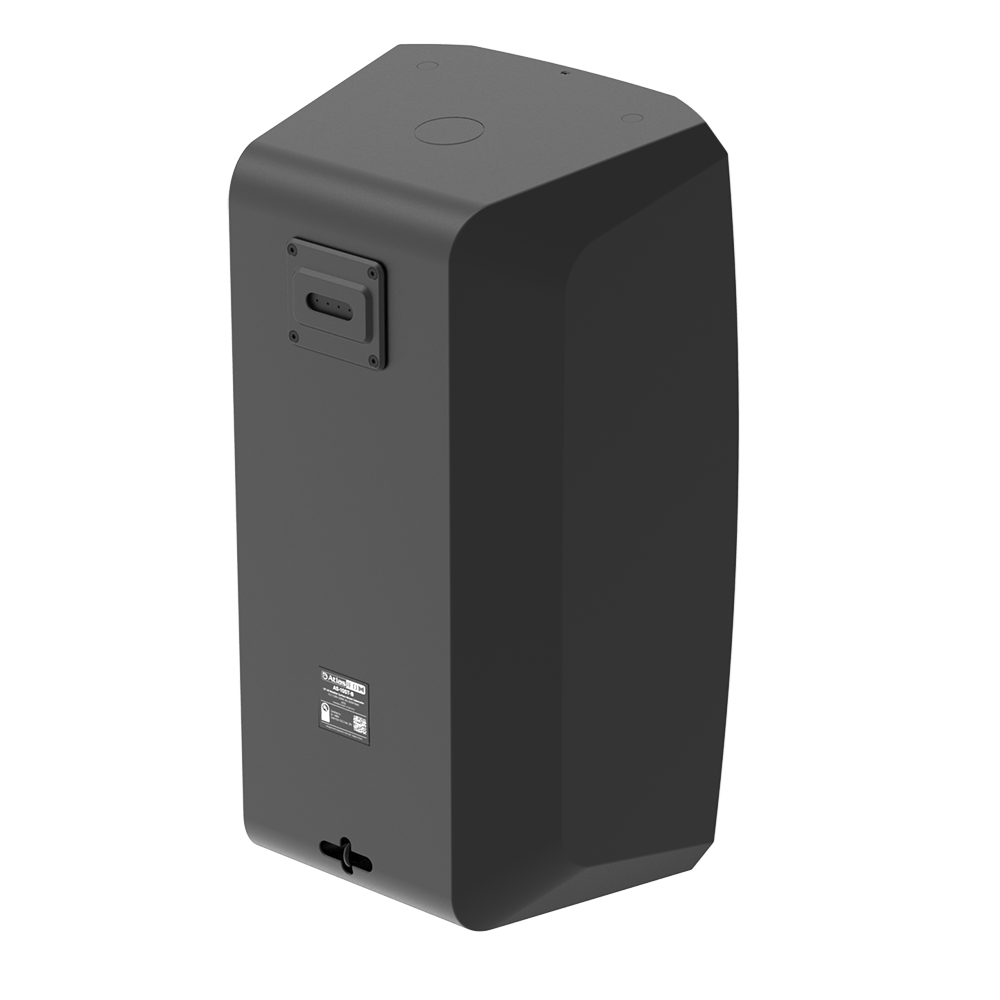

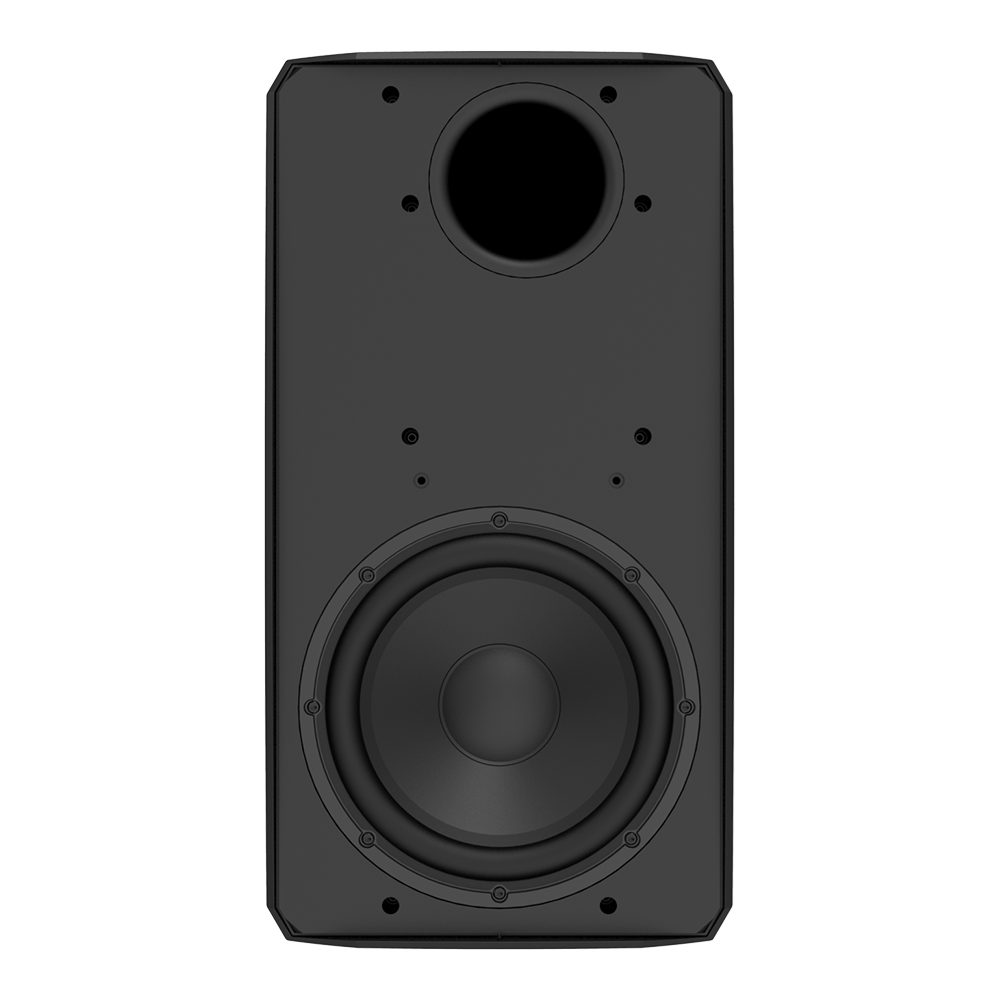

AS-10ST-B 10" AS Series Surface Mount Subwoofer, Black
Please sign in so that we can notify you about a reply
The AtlasIED AS-10ST is a high-performance direct radiating subwoofer, designed to extend low frequency response, and increase system headroom in conjunction with AtlasIED AS Series of full range loudspeakers. Ideal for applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites. Featuring a high excursion weather treated 10" woofer with highly damped butyl rubber surround, the AS-10T delivers consistent impactful bass. Complimenting the form factor of AS Series full range loudspeakers, the AS-10ST is available in textured black or white. The outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out. Safe and effective Installation of the AS-10ST is made simple by way of the included slip free yoke mount. Equipped with a low insertion loss 200W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover. For the most discerning designers and integrators, a complete suite of EASE™ (including compatibility with EASE Focus), CF2, 3D CAD, and BIM/Revit families are available for download.
Features- Minimalistic and clean industrial design for sensitive architectural
- Constraints
- Effective coverage for systems with space limitations
- Ultra-low insertion loss 200W transformer for dynamic performance in distributed systems
- High impact ABS enclosure with UV inhibitor
- IP55 & UL1480A rated
- Slip-Free yoke mount supplied
- Advanced tunings available via AtlasIED Atmosphere DSP platform
Brand:
Atlas IED
Product Type:
Direct Radiating All Weather Subwoofer
Product information
Operating Range:
34 to 800Hz
Specifications
SPL:
118dB
Transducer Size:
250mm (LF)
Transformer Tap Scale:
200W, 100W, 50W (25W 70V), Low Z Operation
Woofer Cone Material:
Weather Treated Paper
Woofer Size:
25.4cm
Woofer Surround Material:
Butyl Rubber
Coverage Angle:
Omnidirectional
Mounting Type:
Surface Mount
Colour:
Black
Series:
AS
IP Rating:
IP55
Power Rating:
300W (Average), 600W (Programme), 1200W (Peak)
Applications:
Bars & Restaurants, Hotels, Casinos & Cruise Ships, Retail, Contemporary Houses of Worship, Education, Themed Attractions, Transportation, Live Music Clubs
Material:
High Impact ABS (Enclosure), Aluminium (Grille)
Resistant Properties:
Weather-Resistant, UV-Resistant;Cuff Resistant
Includes:
Slip Free U-Bracket
Performance
Maximum Output:
124dB
Operating Temperature Rating:
-40 to +60°C
Sensitivity:
93dB
Frequency Rating:
43Hz to 600Hz
Dimensions
Width:
31.12cm
Depth:
29.82cm
Height:
59.44cm
Weight:
16kg
Shipping Weight:
22.3kg
Other
Standards Met:
Mil STD 810G, UL1480A, CE
Warranty:
5yrs
