VTB-2 15-Watt, 4O Environment Resistant Voice/Tone Compression Driver
Please sign in so that we can notify you about a reply

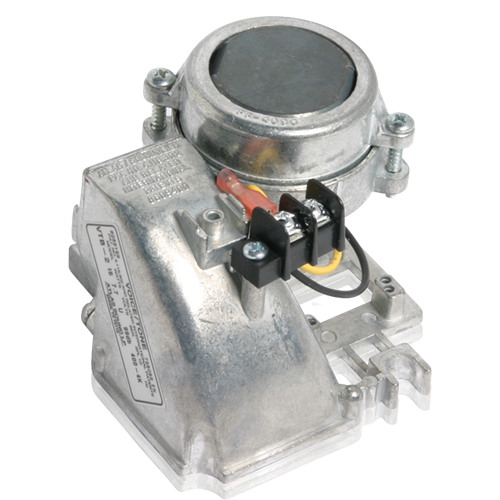

AtlasIED VTB Series Models are environment-resistant speakers designed for intercom communication. VTB Models feature an integral exponential horn to provide reliable sound distribution and optimum intelligibility for the reproduction of voice and/or electric tone signals. Units have a frequency response of 600Hz - 55kHz, and are offered in six models to meet application requirements. Series Models VTB-1 and VTB-2 are 8 and 4 ohm units, respectively. Models VTB-3 through VTB-6 are equipped with a built-in transformer. Termination is via 6" color coded leads. Units are of die-cast zinc construction with a water-sealed driver that will withstand moisture, corrosion, vibration, vermin, and vandalism. Models are available with a selection of multi-tap transformers and are designed to mount a variety of standard or custom housings and face plates to meet installation and application requirements. VTB Series units provide years of trouble-free service in stationary or mobile applications both indoors or outdoors.
Features- 4 Ohms
- Communications, Intercom, Electronic Alarm, and Monitoring Systems
- High Efficiency Compression Driver for Optimum Audio Intelligibility
- Metal Die-Cast Construction with Integral Exponential Horn
- Operates Within a Temperature Range of -30° F to 150° F
- Patented Voice/Tone Loudspeaker for Custom Application in High Efficiency Industrial
- UL Certified, Safety Listed to UL1480
- Selection of five Models; 2 or 15 Watts, 4 or 8 Ohms, 25V or 70.7V Transformers
- UL-Recognized Speaker Component
- Water/Moisture, Corrosion, Dust, Vibration, and Vermin-Resistant
Brand:
Atlas IED
Product Type:
Compression Driver
Specifications
Colour:
Grey
Series:
VTB
For Use With:
Siren
Size:
9.3x9.3x8.1cm
Applications:
Industrial, Institutional, Educational and Health Care Center, Mass Transit, Mobile Radio Communication, Government Building, Military Installation, Mine, Jail, Detention Center, Industrial Processing, Construction Site, Drive-Thru Menu Board, Intrusion A
Material:
Die-Cast Zinc
Dimensions
Weight:
1.1kg
Shipping Weight:
0.9kg
Other
Standards Met:
BAA Compliant, TAA Compliant
