Ashton Bentley QSC AD-S802T Speak Bracket Set Sin-Dual Uni Chas
Please sign in so that we can notify you about a reply

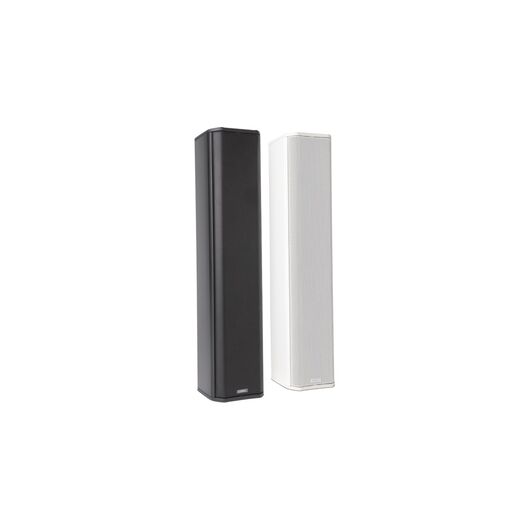

The all-new AcousticDesign™ Series AD-S802T is a 8-driver column surface-mount loudspeaker. This premium full range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Features- Deliberately unobtrusive industrial design
- Available in white (RAL 9010) or black (RAL 9011)
- Paintable enclosure and grill
- Complete EASE, CLF, CAD & BIM information
- Rugged aluminum construction
- UV Inhibitors in all white models
- IP-54 rating for dust and splash resistance
- Powder-coated grills and weather-treated cones
- Close to wall pan/tilt bracket included
- Low saturation 70/100V transformers
- 8 ohm low impedance bypass
- Screw-down Euro block connector with loop-through
- Sealable input weather cup – keeps moisture away from wiring
Brand:
Kramer
Part number:
900-00587
Product Type:
Column Loudspeaker
Specifications
Amplifier Sensitivity:
87dB
Amplifier Sound Level:
114dB
Driver Size:
6.9cm
Loudspeaker Sound Level:
114dB
Indoor/Outdoor:
Indoor, Outdoor
Speaker Configuration:
2.75in (69.8mm) Weather Treated Paper Cone Woofer
Colour:
Black, White
Series:
900
Applications:
Lecture Halls, Atriums, Education, Transportation Terminals, Worship Facilities Court Houses, Concourses, Large System Ancillary Support
Material:
Aluminium
Operating Temperature Range:
-20 to +50°C
Included Accessories:
Sealed Input Cover Plate with Gland Nut, Quick Hang Pan/Tilt Wall Bracket, Shoulder Eyebolt Safety Tether Anchor
Performance
Impedance Rating:
8Ω
Loudspeaker Power Rating:
120W
Loudspeaker Frequency Rating:
90Hz to 17kHz
Amplifier Frequency Rating:
90Hz to 17kHz
Amplifier Power Rating:
120W
Inputs and Ports
Number of I/O Connector:
1
Dimensions
Width:
5.2cm
Depth:
82.3cm
Height:
31.2cm
Weight:
6.2kg
Shipping Weight:
8.8kg
Other
Standards Met:
UL1480A, EN54-24: 2008 Type B, UL1876, ROHS, CE Compliant
