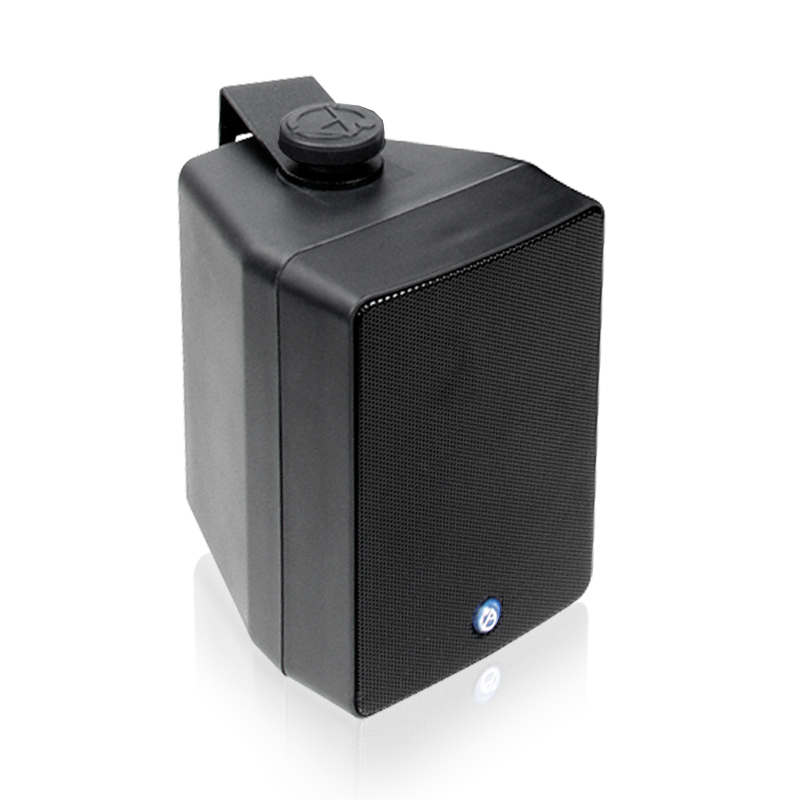

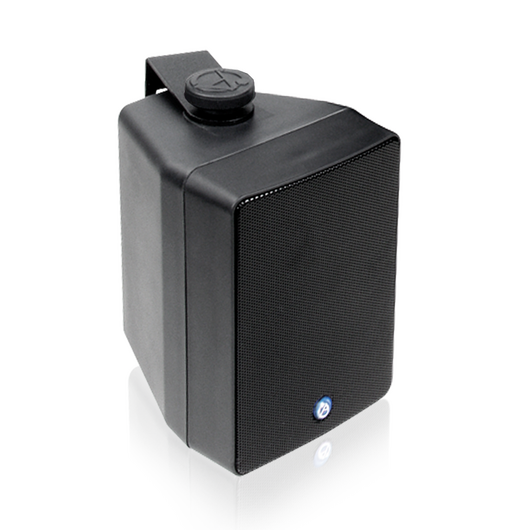

SM42T-B 4" 2-Way All Weather Speaker with 16-Watt 70V/100V Transformer (Black)
Please sign in so that we can notify you about a reply
All AtlasIED Strategy Series speaker systems are designed to provide high fidelity, long life and installation convenience for commercial and residential applications. Because of their weather-resistant properties they are perfect for use indoors or out. The SM42T includes a 4" woofer and 1" tweeter as well as an integrated 70.7V / 100V transformer and 8Ω bypass for direct coupled applications. Use surface-mount AtlasIED SM42T Series speaker systems for commercial, professional and residential applications or where high-fidelity sound and weather-resistance is desired. Full-range frequency response makes these systems ideal for indoor and outdoor installation, in monaural and stereo foreground or background music systems, and for applications in boutiques/shops, restaurants/cafes, corporate AV applications and houses of worship. Multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service.
Features- 1" Ferrofluid™ Cooled Dome Tweeter & Highly Efficient 4" Polypropylene Woofer
- All 1/4"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
- Atlas Sound POLYGUARD™ High Frequency Protection Circuit
- Available in Black or White
- Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
- Five-Year Warranty

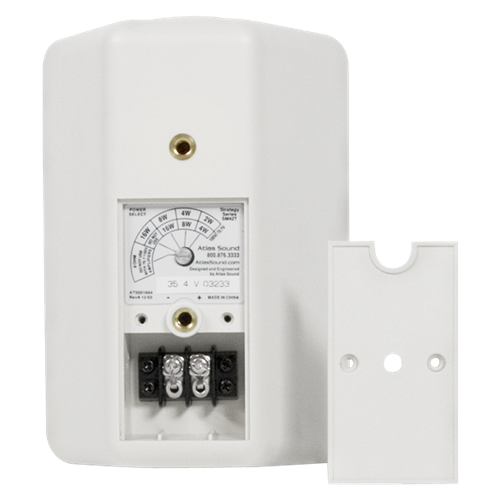

- Screwdriver Adjustable 16-Watt 70.7V/100V Transformer (may be bypassed for 8-ohm operation)
- TRX WAVEGUIDE™- Constant Directivity Style High Frequency Wave Guide System
- Weather-Resistant Construction for Year-Round Indoor or Outdoor Use
- OMNIMOUNT™ Compatible
- UL Certified, Safety Listed to UL1480A
Brand:
Atlas IED
Product Type:
Surface Mount Loudspeaker
Specifications
Coverage Angle:
90° (Horizontal/Vertical)
Number of Included Speakers:
2
Indoor/Outdoor:
Indoor, Outdoor
Speaker Configuration:
Two Way
Mounting Type:
Surface Mount
Colour:
Black
Series:
Strategy
Power Rating:
16W (RMS)
Applications:
Boutique, Shop, Restaurant, Cafe, Corporate AV, Houses of Worship
Enclosure Material:
Injection Molded Polypropylene
Enclosure Type:
Environment Resistant, Weatherproof
Included Accessories:
4in Woofer, 1in Tweeter
Performance
Impedance Rating:
8Ω
Frequency Rating:
115Hz to 16kHz
Crossover Frequency:
4KHz
Inputs and Ports
I/O Interface Type:
Barrier Strip 2-Pole
Dimensions
Width:
12.7cm
Depth:
15cm
Height:
17.8cm
Weight:
1.5kg
Shipping Weight:
2.2kg
Other
Voltage Rating:
70.7V
Standards Met:
cUL Listed
