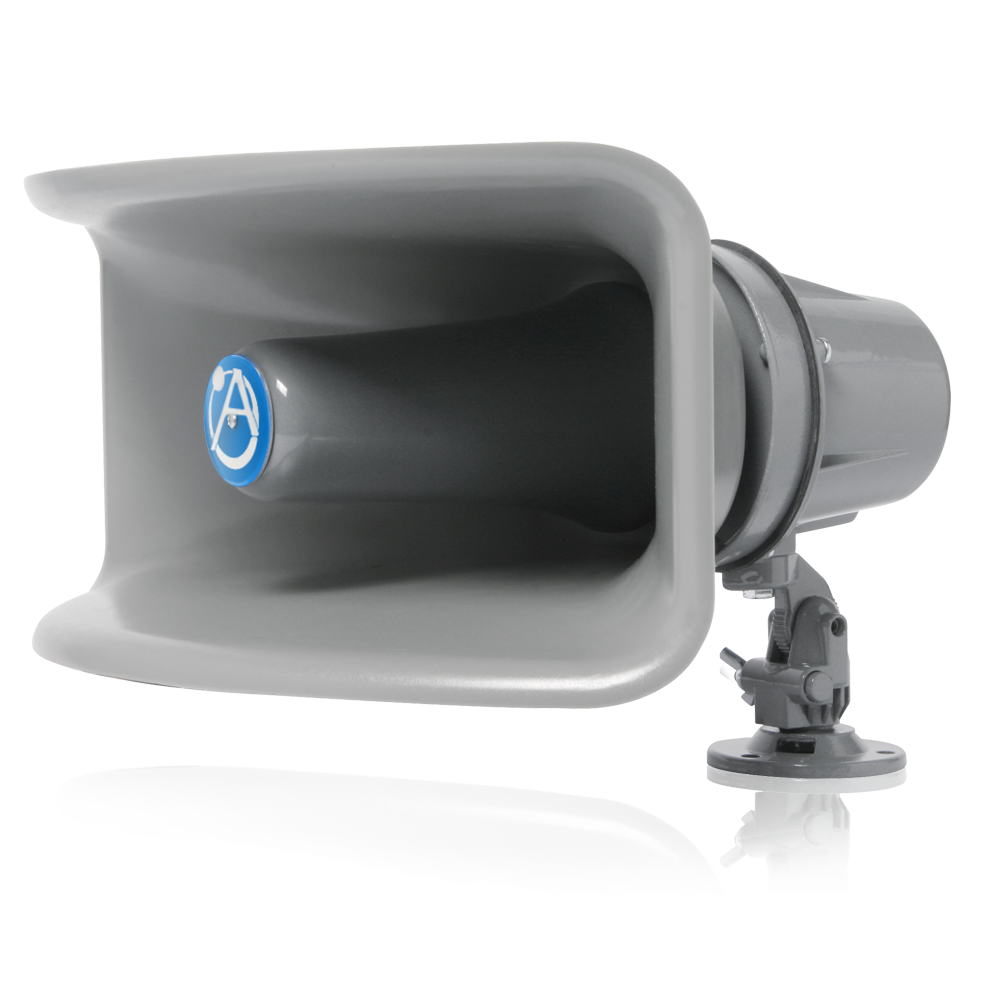

APC-30T Wide Angle Horn Speaker with 30-Watt 25V/70V/100V Transformer
Please sign in so that we can notify you about a reply
APC-30T is a high-power 30 watt speaker with extended low frequency response. Unit is equipped with a wide-angle molded plastic bell for sound directivity. Transformer includes a screwdriver-adjust power selection with a 45 ohm tap for intercom and talk-back use. For mounting, the APC-30T features the Omni-Purpose® bracket for vertical/horizontal positioning with provisions for surface/strap mounting to pillars and I-beams. Finished in grey baked epoxy. Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Features- High-Powered Compression Driver Projects Superior Voice and Tone Signaling
- Includes a 25, 70.7, 100V Transformer with a 45-Ohm Tap
- One-Step Method of Adjusting Bell from Horizontal to Vertical Positioning
- Wide-Angle Sound Dispersion for Maximum Horizontal Pattern Coverage
Brand:
Atlas IED
Product Type:
Wide Angle Horn Loudspeaker
Specifications
Indoor/Outdoor:
Indoor, Outdoor
Mounting Type:
Strap Mount
Colour:
Grey
Power Rating:
30W
Applications:
Manufacturing Facilities, Commercial Building, Service/Distribution Center, Recreation Area, Civic Site
Included Accessories:
25/70.7/100V Transformer
Performance
Impedance Rating:
45Ω
Frequency Rating:
300Hz to 12kHz
Dimensions
Width:
36.5cm
Depth:
32.7cm
Height:
21cm
Weight:
3.7kg
Shipping Weight:
4kg
Other
Voltage Rating:
70.7V, 100V
